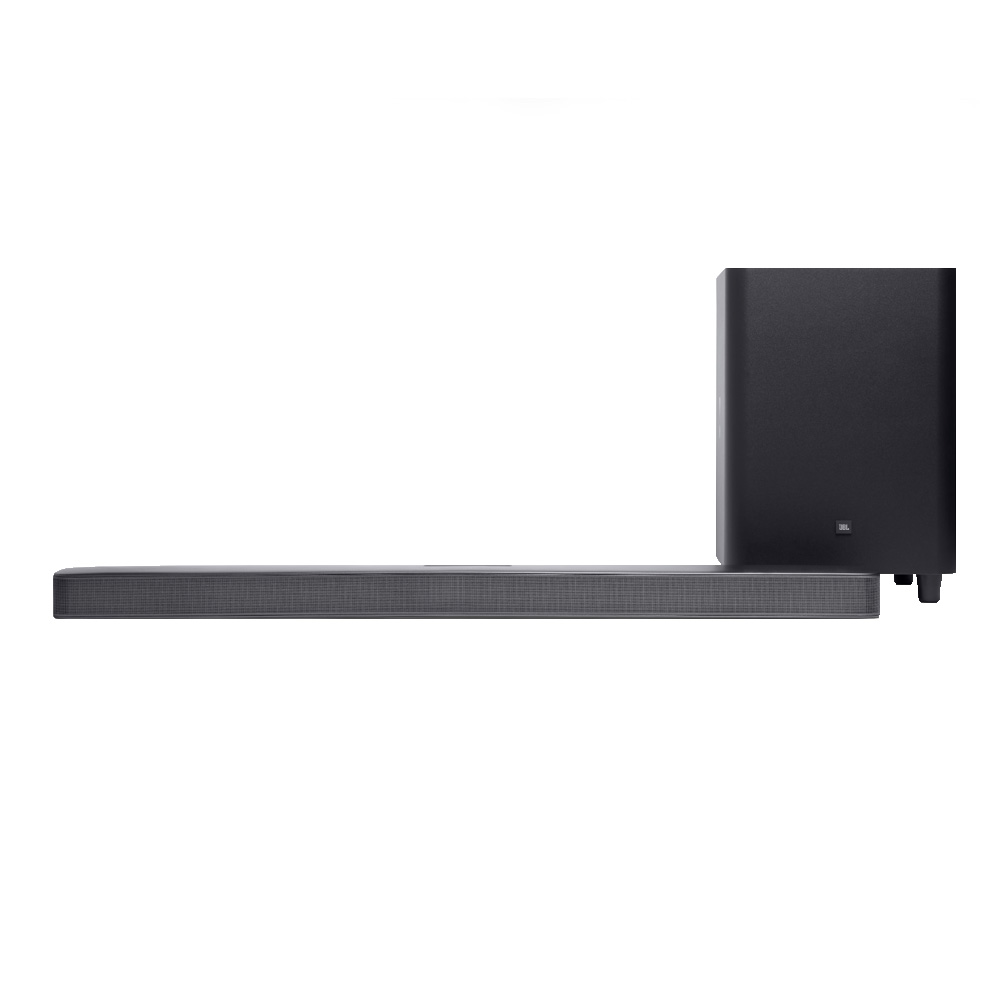

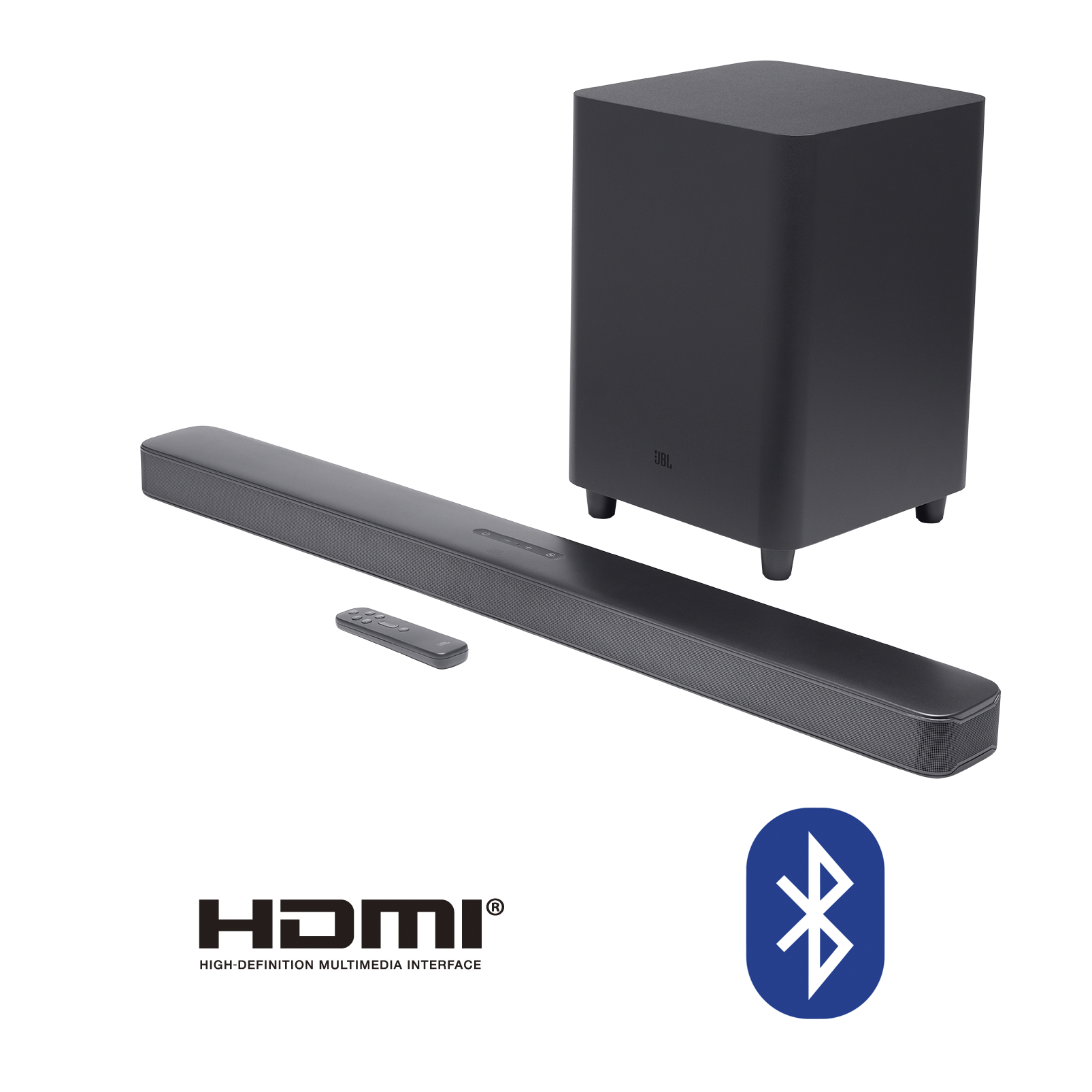

JBL Bar 5.1 Surround

The impressive JBL Bar 5.1 Surround delivers the ultimate home cinematic experience. Bring everything you watch to life with 550 Watts of power and a 10’’ subwoofer: the driving bass of an action movie, the tension of a thriller or the beauty of a nature documentary. Built-in Chromecast and Airplay 2 lets you stream and manage online content, and Bluetooth means your streamed music sounds great, too. Amazing surround sound comes from JBL MultiBeam™ technology. JBL has powered the world’s movie theatres for more than 75 years. Now you can bring that power home.

Description

JBL

Powerful sound

JBL MultiBeam™ technology brings the ultimate cinematic experience to your home. No extra speakers or wires are needed.

You got the power

With 550 Watts of system output power, experience your movies and music like never before. Immersive, powerful sound to match your viewing pleasure.

You got the power
Feel the bass

Feel the bass

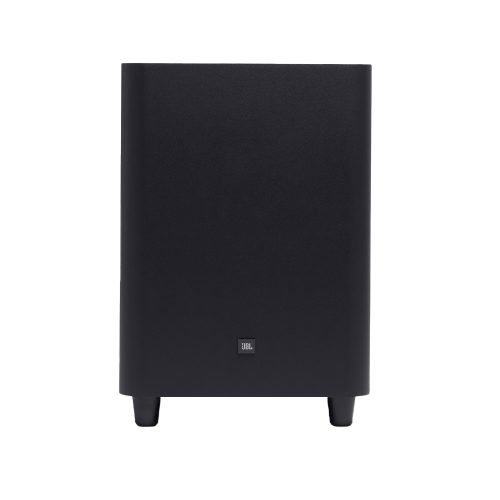

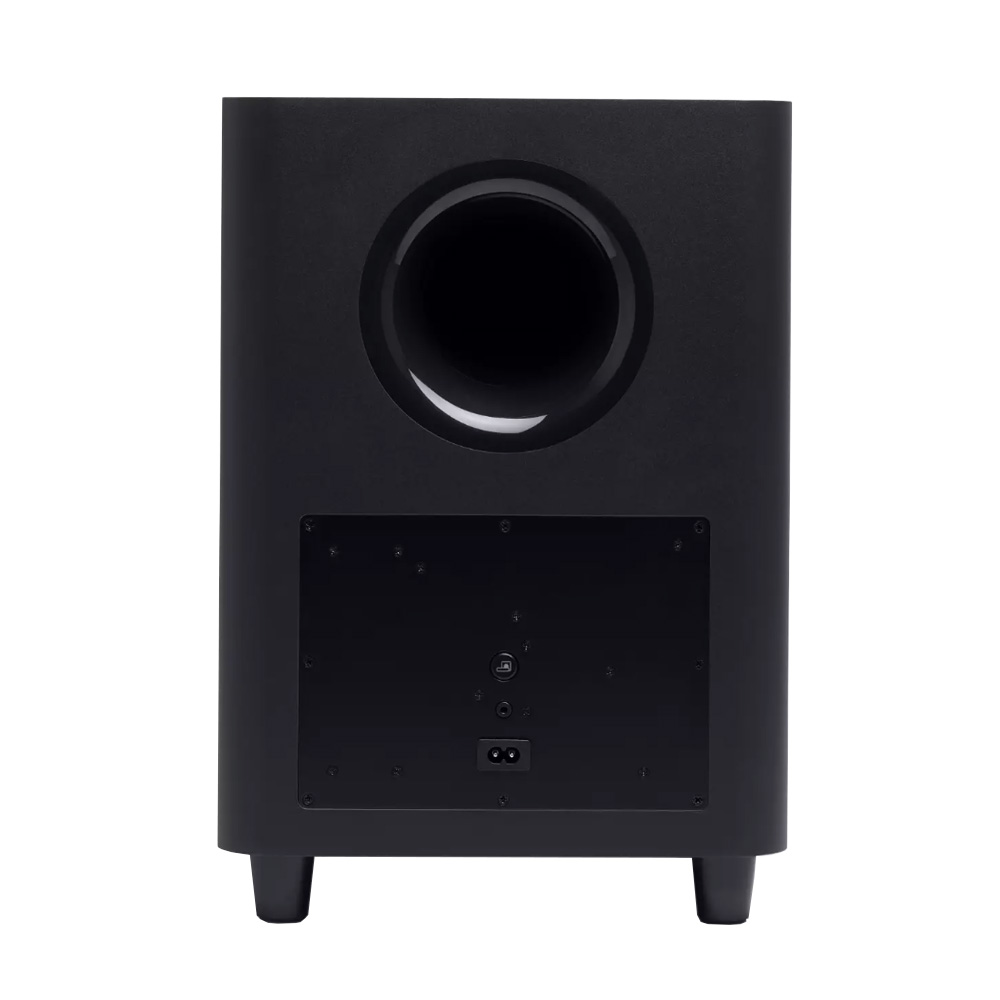

Punchy, precise bass from a mighty 10’’ wireless subwoofer brings the action to action movies, and ensures any soundtrack sounds epic.

General Specifications
ModelBar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit)
Power supply100 – 240V AC, ~ 50/60Hz
Soundbar output power (Max. @THD 1%)5 x 50W
Subwoofer output power (Max. @THD 1%)300W
standby power<0.5W
networked standby power<2.0W
Operating temperature0°C – 45°C
BAR 5.1 SURROUND is in compliance with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013.Yes
Off ModeN/A
Network Standby<2.0W
Time to standby<20minutes
* Standbyin the condition of all wireless connections of Soundbar are deactivated, if no provide any audio or video signal to the Soundbar unit, the Soundbar unit will automatically into standby mode in 10 minutes.
* Networked standbyin the condition of any wireless connection of Soundbar is activated, if no provide any audio or video signal to the Soundbar unit, the Subwoofer and Soundbar unit will automatically into networked standby mode in 10 minutes.
Any audio or video recover will bring device from standby to operation mode.Yes
Audio Specifications
Total speaker power output (Max. @THD 1%)550W
Max SPL103dB
Frequency response40Hz – 20KHz
Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
MP3 CodecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16KHz – 48 KHz
MP3 bitrate80kbps – 320kbps
Dimensions
Soundbar transducer5 x 4690” racetrack drivers +2 x 1.25” side-firing tweeters
Subwoofer transducer10”
Dimensions (W x H x D)1018 x 58 x 100mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305mm / 12” x 17.3” x 12” (Subwoofer)
Weight2.85KG (Soundbar); 10.62Kg (Subwoofer)
Control and Connection
USB portType A
USB rating5V DC, 0.5A
Supporting file formatmp3, wav
Bluetooth version4.2
Bluetooth profileA2DP V1.3, AVRCP V1.5
Bluetooth frequency range2402MHz – 2480MHz
Bluetooth Max. transmitting power<11dBm (EIRP)
Modulation TypeGFSK, π/4 DQPSK, 8DPSK
Wi-Fi networkIEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi frequency range2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi Max. transmitting power<20dBm
Modulation TypeDBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi frequency range5.15 – 5.35GHz, 5.725 – 5.825GHz
5G Wi-Fi Max. transmitting power<22dBm
5G Wireless frequency range5161.35 – 5245.35MHz, 5736.35 – 5820.35MHz
5G Max. transmitting power<9dBm (EIRP)
Modulation Typeπ/4 DQPSK
Video Specifications
HDMI Video input1
HDMI Video output (With Audio return channel)1
HDMI HDCP version2.2
