Yamaha Concert Club V Series C112VA

Yamaha Concert Club V Series C112VA

The fifth generation of the best-selling Concert Club series, with more models and higher power capacity.

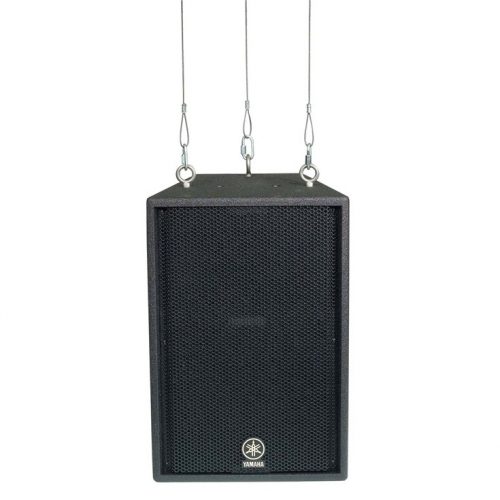

  • Flying versions of C112V
  • A variety of mounting brackets available
  • 12 integral fly points
  • Terminal strip for easy wiring
  • 3/8″ Eye bolts included
  • Ready to hang

Description

Speaker type:

2-way full-range speaker



Frequency range (-10 dB):

60 Hz – 16 kHz



Nominal coverage:

H: 90°

V: 40°



Components:

LF: 12″ Cone

HF: Horn, 2″ voice coil driver



Power rating:

NOISE: 175 W (EIA)

PGM: 350 W

PEAK: 700 W



Nominal impedance:



SPL:

Sensitivity (1W; 1m on axis): 97 dB SPL

Continuous (Calculated): 119 dB SPL

Peak (Calculated): 125 dB SPL



Flying and mounting hardware:

4x 3/8″ eyebolt, 4x W5/16″ screw for 251 series bracket



Dimensions:

Width: 416 mm (16-3/8″)

Height: 620 mm (24-3/8″)

Depth: 329 mm (13″)



Net weight:

21.8 kg; (48.1 lbs.)
