Yamaha DA Converter DA824

Yamaha DA Converter DA824

Precision 24-bit DA converters deliver 8 channels of top-quality analog audio output.

  • High quality 24-bit digital-to-analog converters.

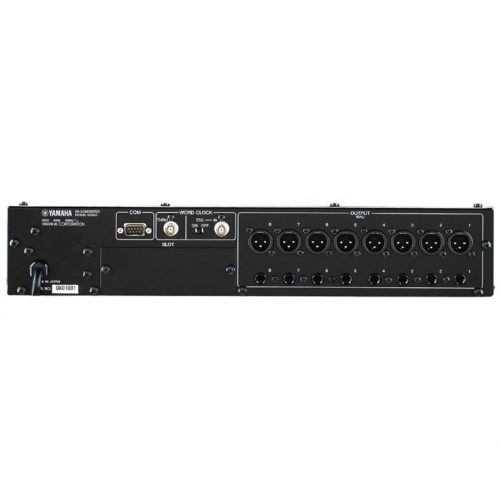

  • Balanced XLR and 1/4″ phone jack output connectors.
  • Maximum +4, +15, +18, or +24 dBm output level individually selectable for each channel.
  • Expansion slot supports optional mini-YGDAI cards for AES/EBU, ADAT and TASCAM digital formta.
  • Word clock input and thru connectors.

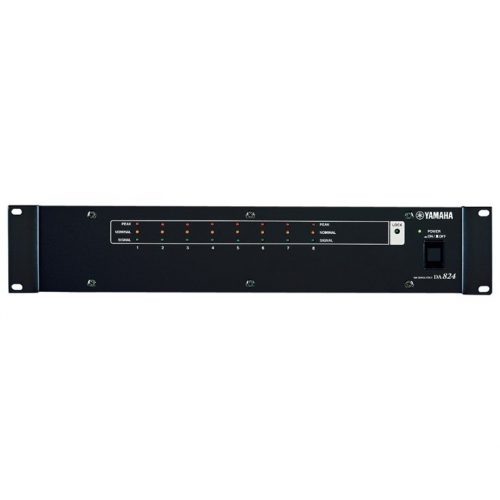

  • Signal, nominal, and peak LED indicators.

Description

Sampling Frequency Rate:

External: 44.1/88.2 kHz (-10%) – 48/96 kHz (+6%)



Signal Delay:

0.57 ms



Total Harmonic Distortion:

Less than 0.05% (20 Hz – 20 kHz)



Frequency Response:

0, +1, -3 dB 20 Hz – 20 kHz



Dynamic Range:

DA: 110 dB



Crosstalk:

-70 dBu



Power Requirements:

Depend on area of purchase; AC 100, 120V or 220-240V; 50/60 Hz



Power Consumption:

40 W



Dimensions:

Width: 480 mm (18-7/8″)

Height: 97.5 mm (3-13/16″) (1U)

Depth: 366.8 mm (14-7/16″)



Net Weight:

7.5 kg (16.5 lbs.)

Included Accessories:

Owner’s Manual
