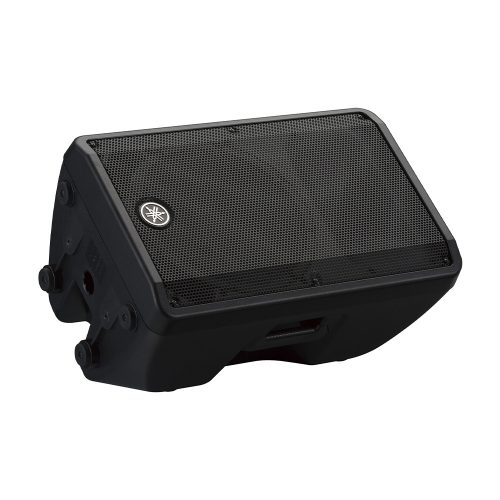

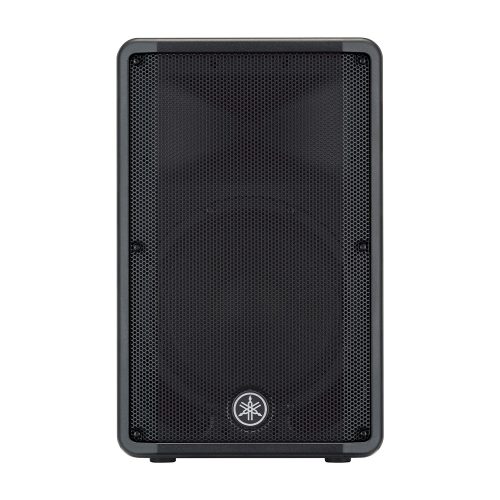

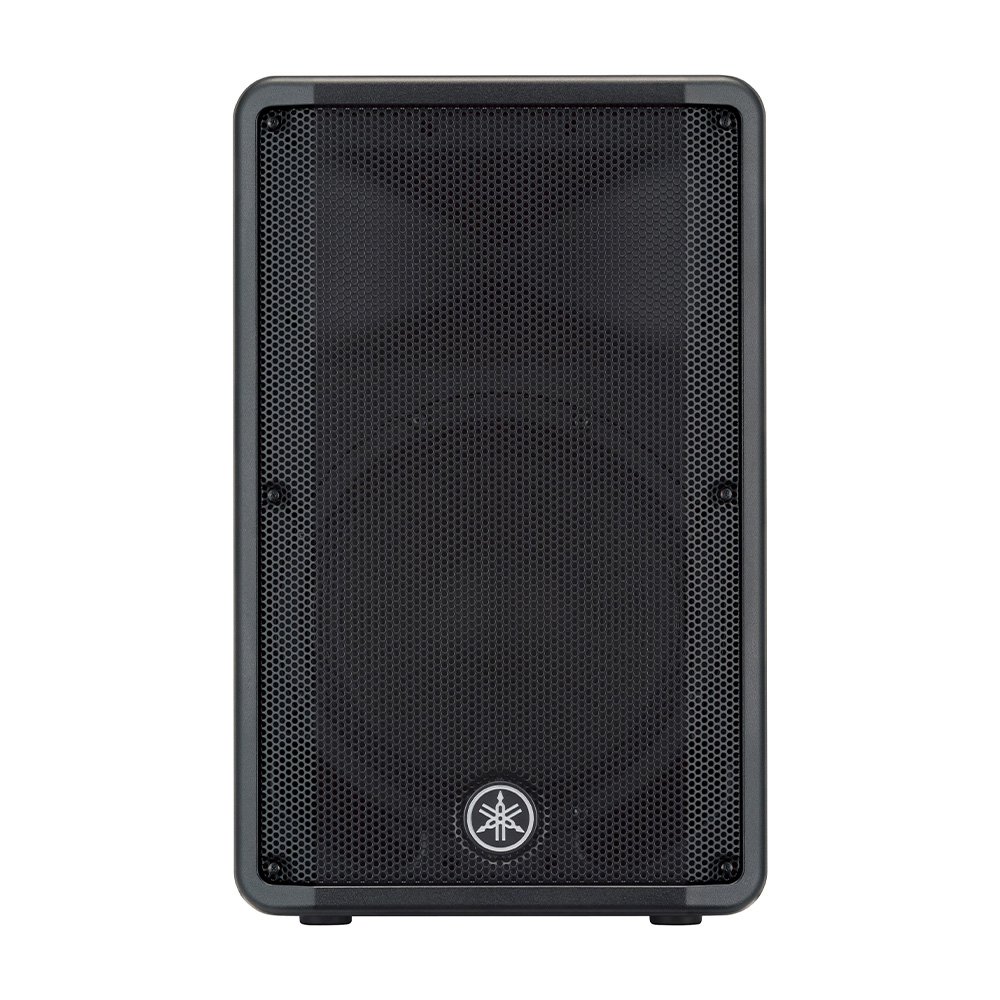

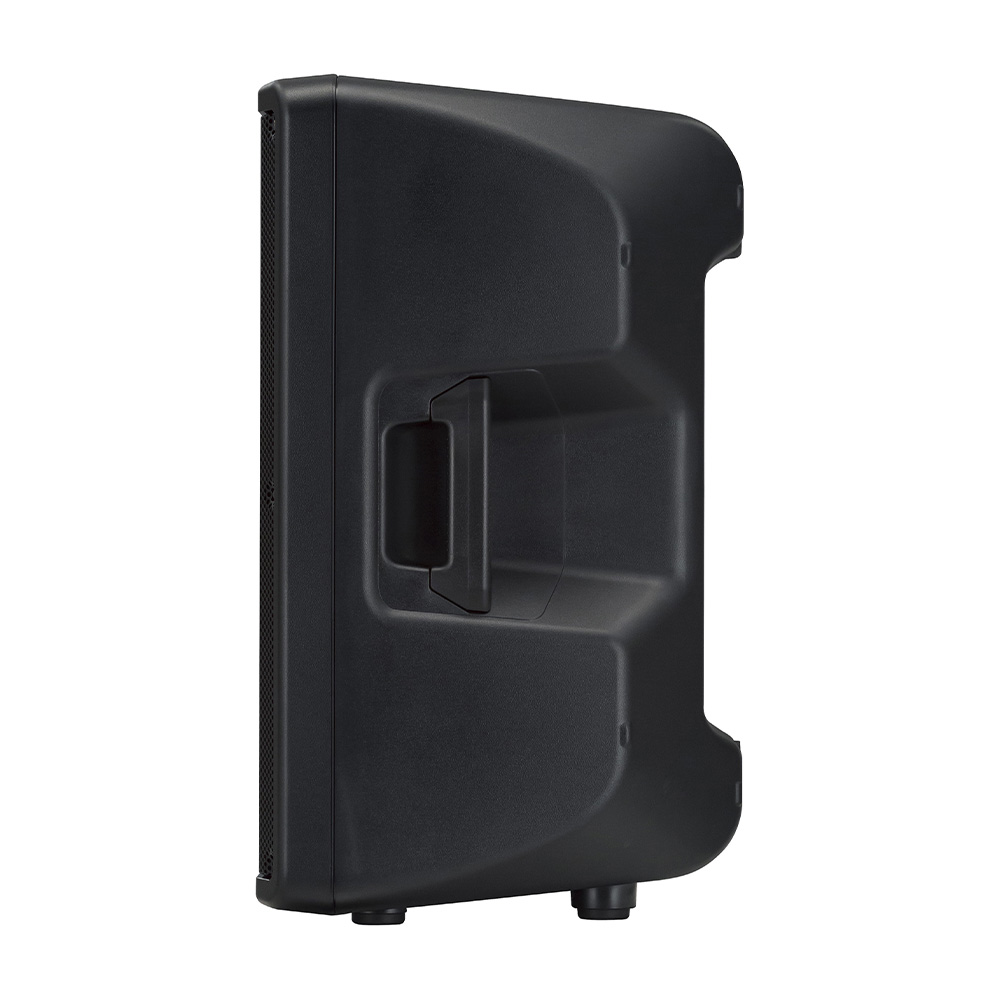

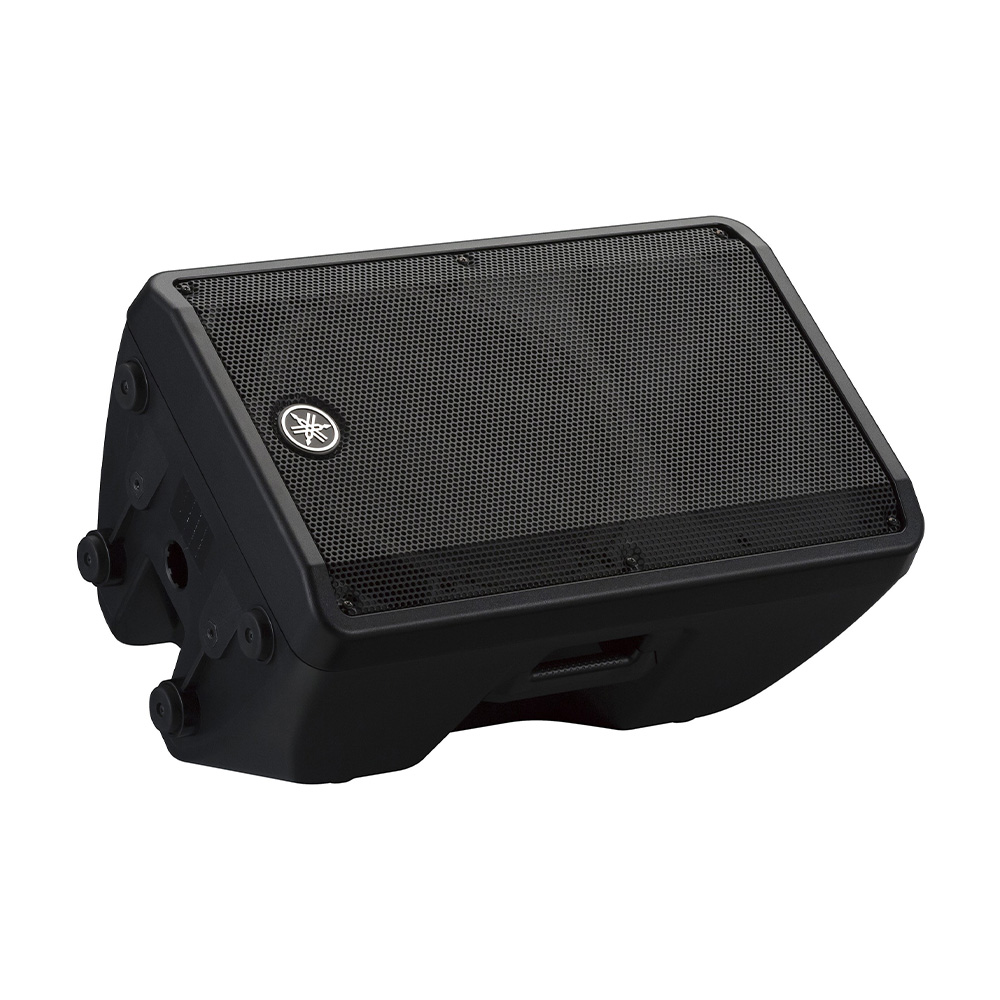

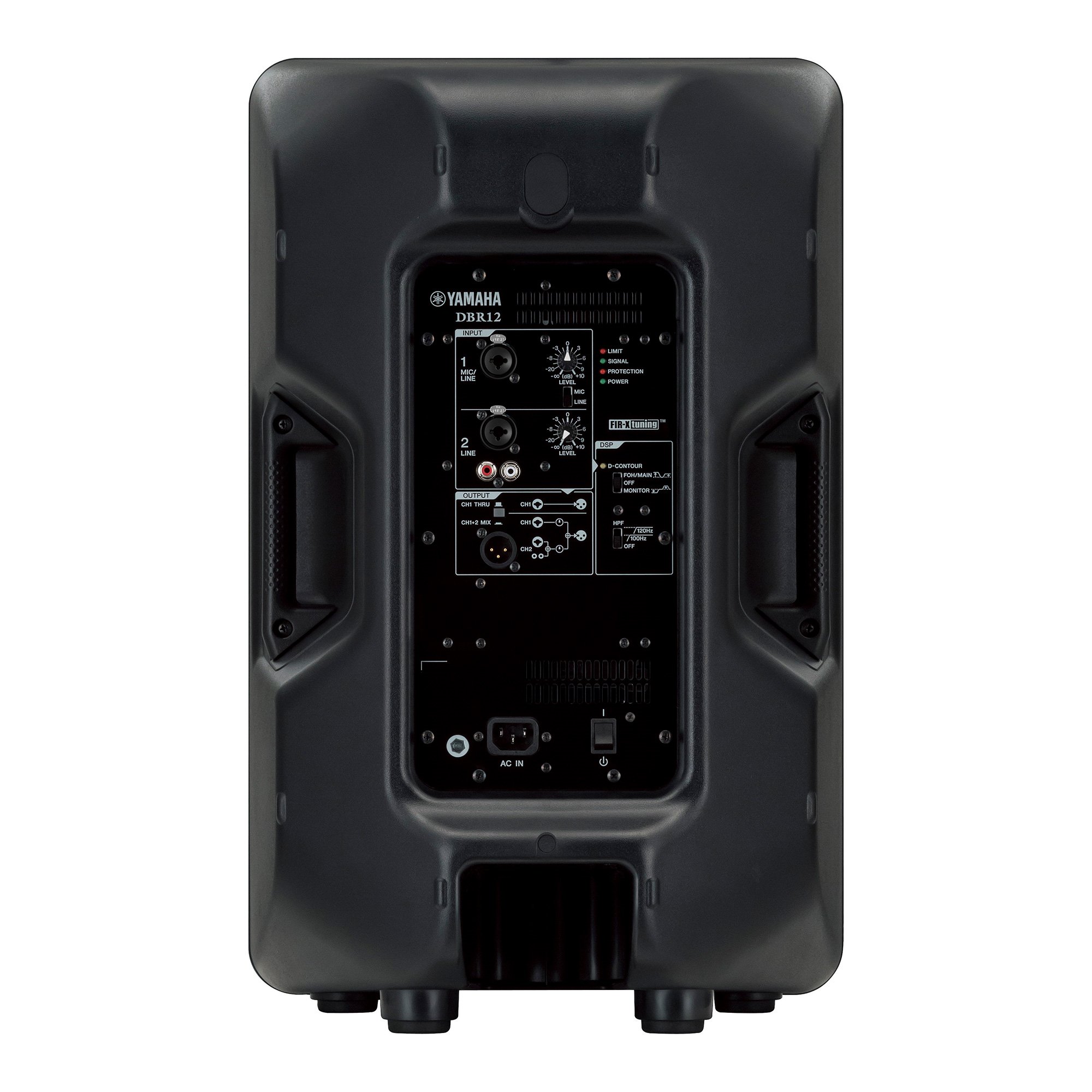

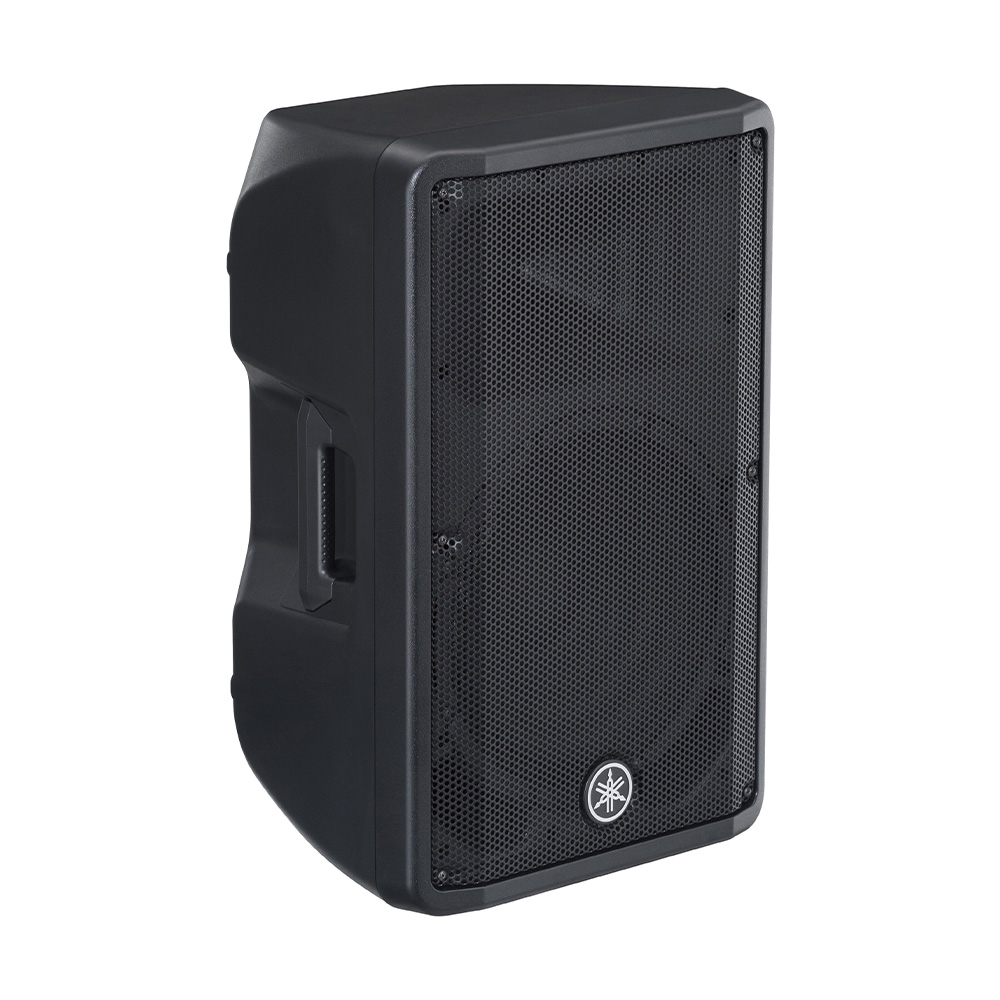

Yamaha DBR Series DBR12

Yamaha DBR Series DBR12

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

Description

Speaker type:

2-way, Bi-amp powered speaker, Bass-reflex type



Frequency range (-10 dB):

52 Hz – 20 kHz



Nominal coverage:

H: 90°

V: 60°



Components:

LF :

Diameter: 12″ cone, Voice Coil: 2″, Magnet: Ferrite

HF:

Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite



Crossover:

2.1 kHz: FIR-X tuning™ (linear phase FIR filter)



Output power:

Dynamic: 1000 W (LF: 800 W, HF: 200 W)

/ Continuous: 465 W (LF: 400 W, HF: 65 W)



Maximum output level (1m; on axis):

131 dB SPL



Power requirements:

100 V, 100 – 120 V, 220 – 240 V, 110/127/220 V (Brazil), 50/60 Hz



Power consumption:

74 W(1/8 Power Consumption), 18 W(Idle)



Dimensions:

Width: 376 mm (14.8″)

Height: 601 mm (23.7″)

Depth: 348 mm (13.7″)



Net weight:

15.8 kg (34.8 lbs.)
