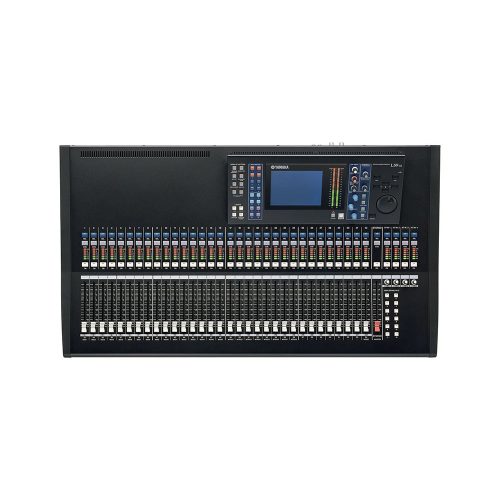

Yamaha Digital Mixing Console LS9-32

Yamaha Digital Mixing Console LS9-32

With 32 input head amps the LS9-32 can comfortably handle the complex and varied source requirements presented by a wide range of live sound applications, but it’s always reassuring to know that you can expand it up to 64 channels by just adding external preamps and Mini-YGDAI interface cards for those extra demanding line-ups.

  • 32 mono mic/line input and 4 stereo input channels, expandable up to 64 channels in two layers.
  • 16 mix buses, 8 matrix buses, plus stereo and mono buses with LCR mode.
  • Compact and light enough for one person to move and set up easily.(19.4 kg)
  • Virtual Rack packed with effects and EQ for just about any processing requirements.

Description

Internal processing:

32 bit, Accumulator: 58 bit



Sampling Frequency Rate:

Internal:

44.1 kHz, 48 kHz

External:

44.1 kHz (-10%) to 48 kHz (+6%)

Signal Delay:

Less than 2.5 ms (@48 kHz)



Total Harmonic Distortion:

Less than 0.05% (20 Hz – 20 kHz)



Frequency Response:

0, +0.5, -1.5 dB 20 Hz – 20 kHz



Dynamic Range:

DA: 110 dB; AD + DA: 108 dB



Crosstalk:

-80 dB Adjacent Input channels, Input to Output



Power Requirements:

AC 100 – 240V

50/60 Hz



Power Consumption:

170 W



Dimensions:

Width: 884 mm (34-13/16 )

Height: 220 mm (8-11/16″)

Depth: 500 mm (19-11/16″)



Net Weight:

19.4 kg (42.8 lbs.)

Included Accessories:

Owner’s Manual

AC Power Cord

Dust Cover
