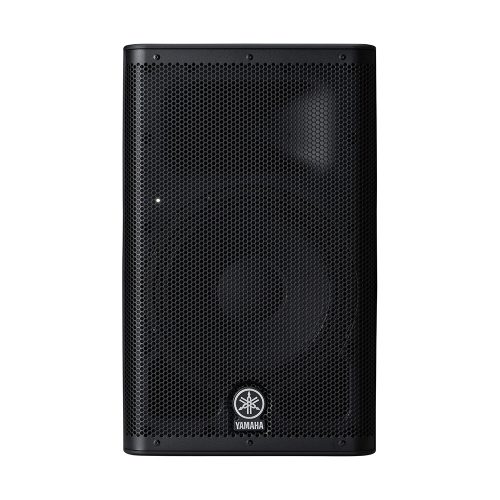

Yamaha DXR Series DXR8

Yamaha DXR Series DXR8

The most compact of the DXR Series speakers, the DXR8 makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 subwoofer gives you an ultra-compact high-power SR system.

Description

Speaker type:

8″ 2-way, Bi-amp powered speaker, Bass-reflex type



Frequency range (-10 dB):

57 Hz – 20 kHz



Nominal coverage:

H: 90°

V: 60°



Components:

LF :

Diameter: 8″ cone, Voice Coil: 2″, Magnet: Ferrite

HF:

Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite



Crossover:

FIR-X tuning™ (linear phase FIR filter)



Output power:

Dynamic:1100 W (LF: 950 W HF: 150 W)

/ Continuous: 700 W (LF: 600 W HF: 100 W)



Maximum output level (1m; on axis):

129 dB SPL



Power requirements:

100 V – 240 V, 50/60 Hz



Power consumption:

90 W



Dimensions:

Width: 280 mm (11″)

Height: 458 mm (18″)

Depth: 280 mm (11″)



Net weight:

13.5 kg (29.8 lbs.)

Included Accessories:

UB-DXR8 (U-bracket)
