Yamaha HS Series HS7I

Yamaha HS Series HS7I

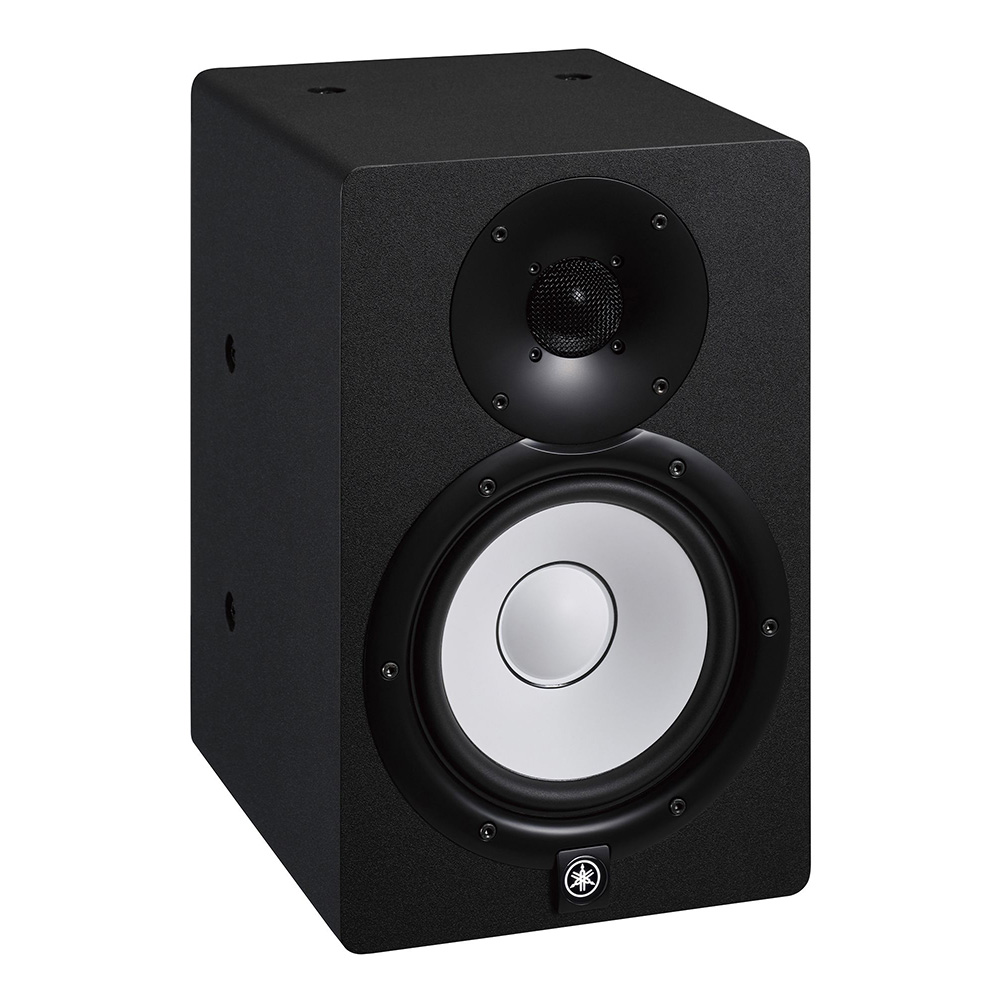

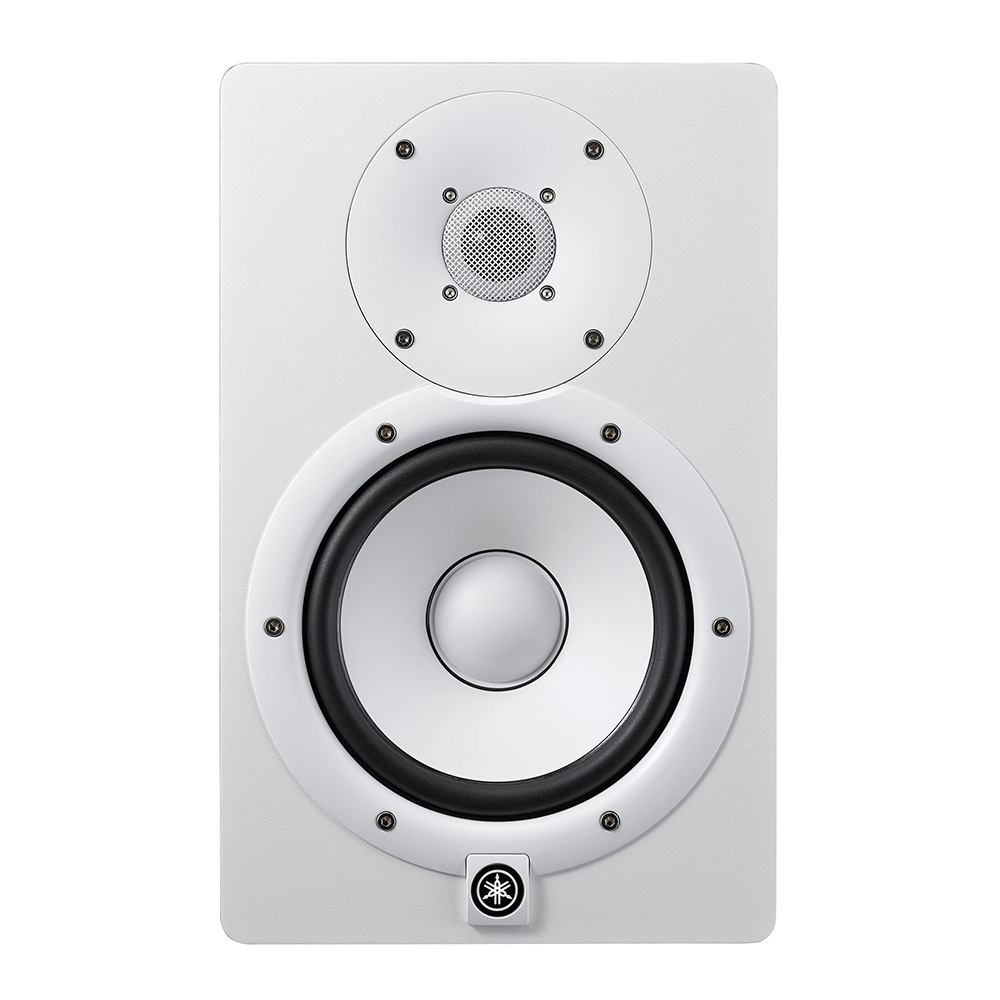

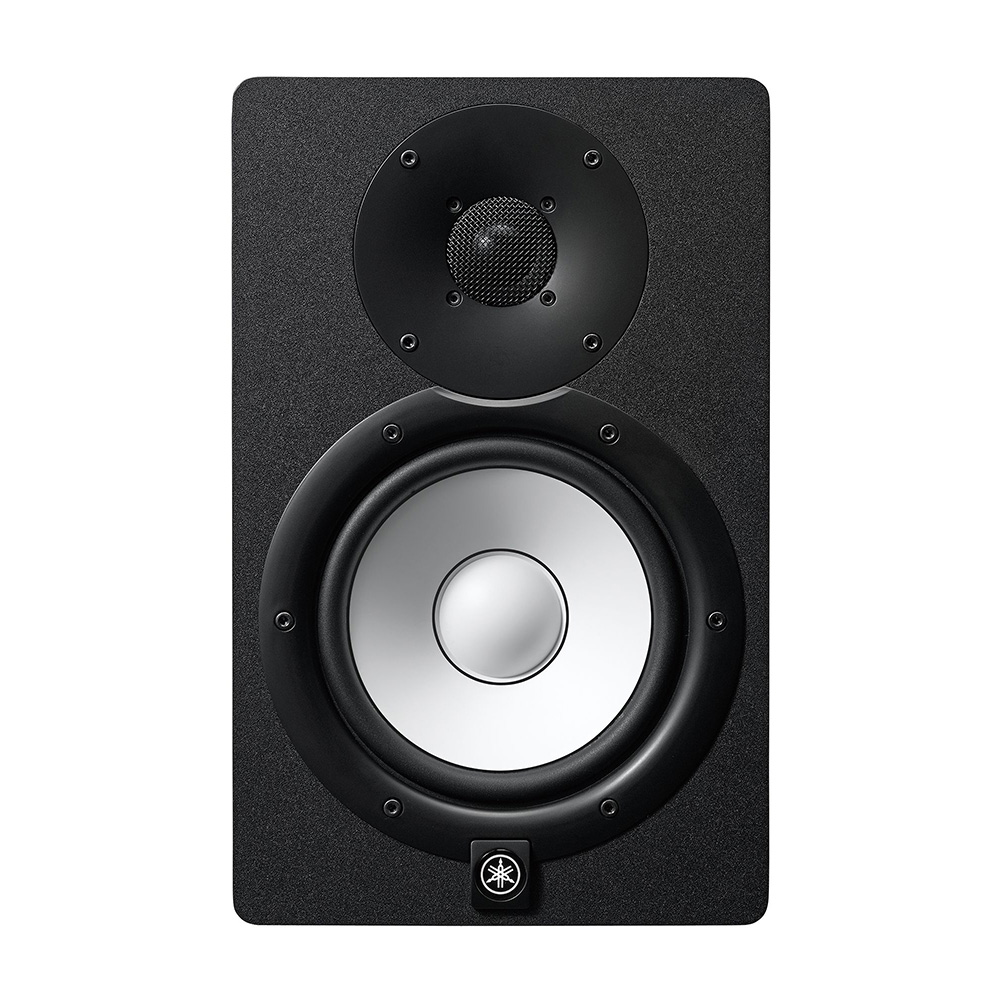

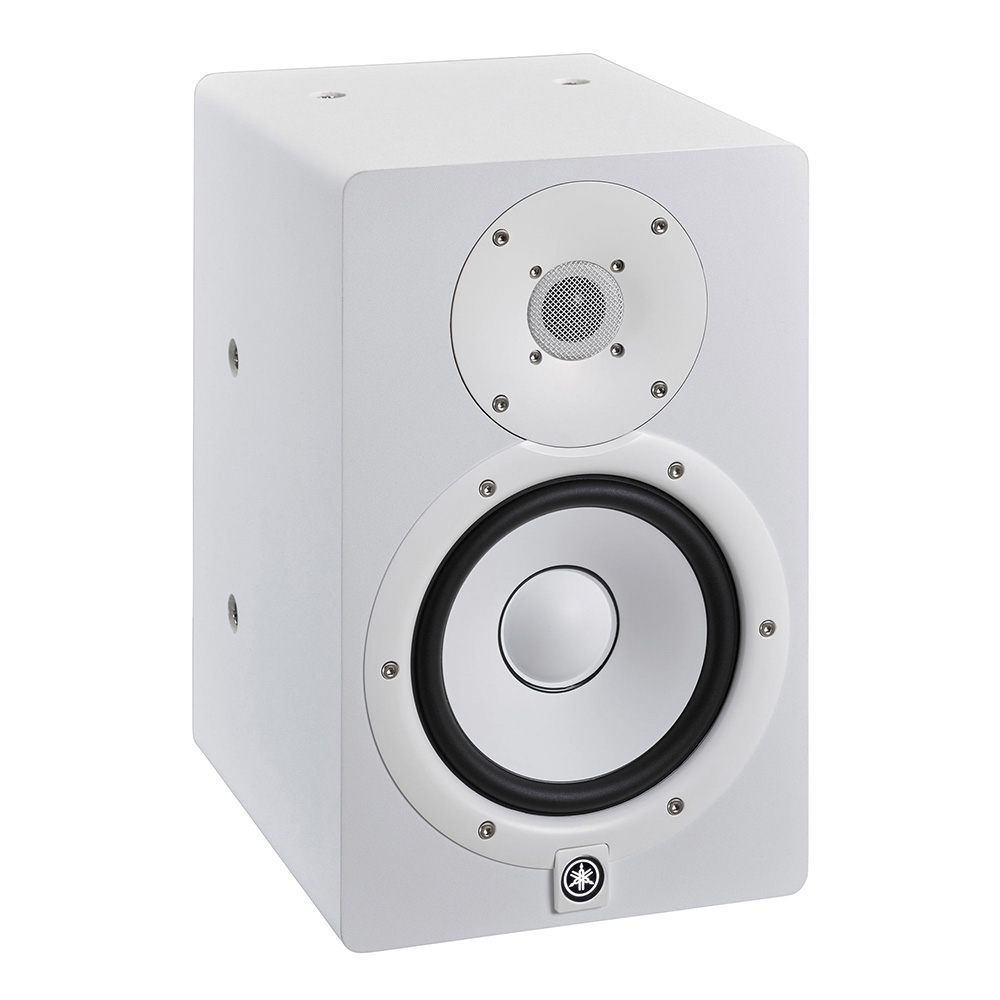

2-way bass-reflex bi-amplified nearfield studio monitor with 6.5″ cone woofer and 1″ dome tweeter. Mounting points on 4 surfaces are available.

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 6.5″ cone woofer and 1″ dome tweeter
  • 43Hz – 30kHz (-10dB), 55Hz – 24kHz (-3dB) frequency response
  • 60W LF plus 35W HF bi-amp system for high-performance 95W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals
  • Mounting points on 4 surfaces
  • Packaging single

Description

Speaker type:

2-way bi-amp powered studio monitor



Frequency range (-10 dB):

43 Hz – 30 kHz



Frequency response (-3 dB):

55 Hz – 24 kHz



Components:

LF: 6.5″ cone

HF: 1″ dome



Crossover:

2 kHz



Output power:

95 W (LF: 60 W, HF: 35 W)



Input sensitivity:

-10 dBu/10 k ohms



Power consumption:

55 W



Dimensions:

Width: 210 mm (8-1/4″)

Height: 332 mm (13-1/16″)

Depth: 284 mm (11-3/16″)



Net weight:

8.7 kg (19.2 lbs.)

Included Accessories:

Owner’s Manual

Power cord

Screws for installing brackets x 2
