Yamaha I/O Rack Tio1608-D

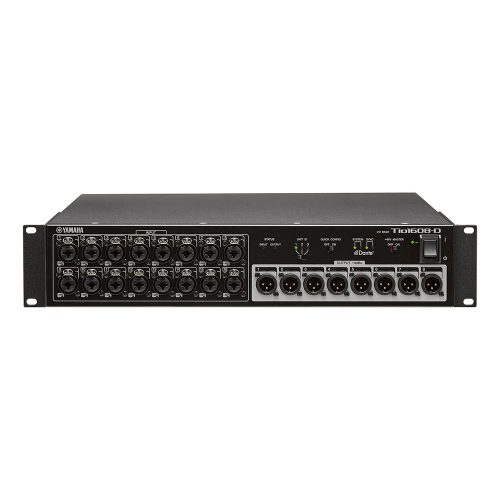

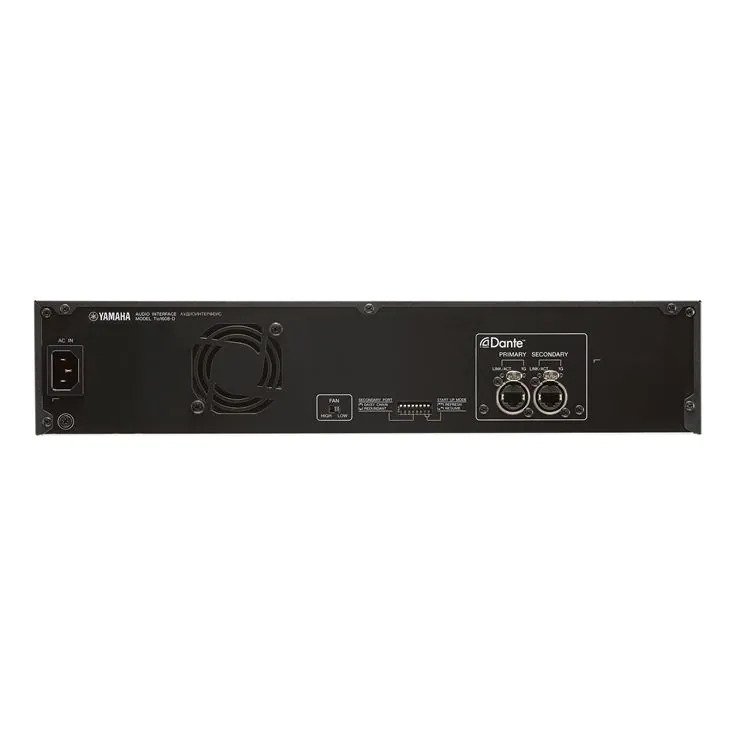

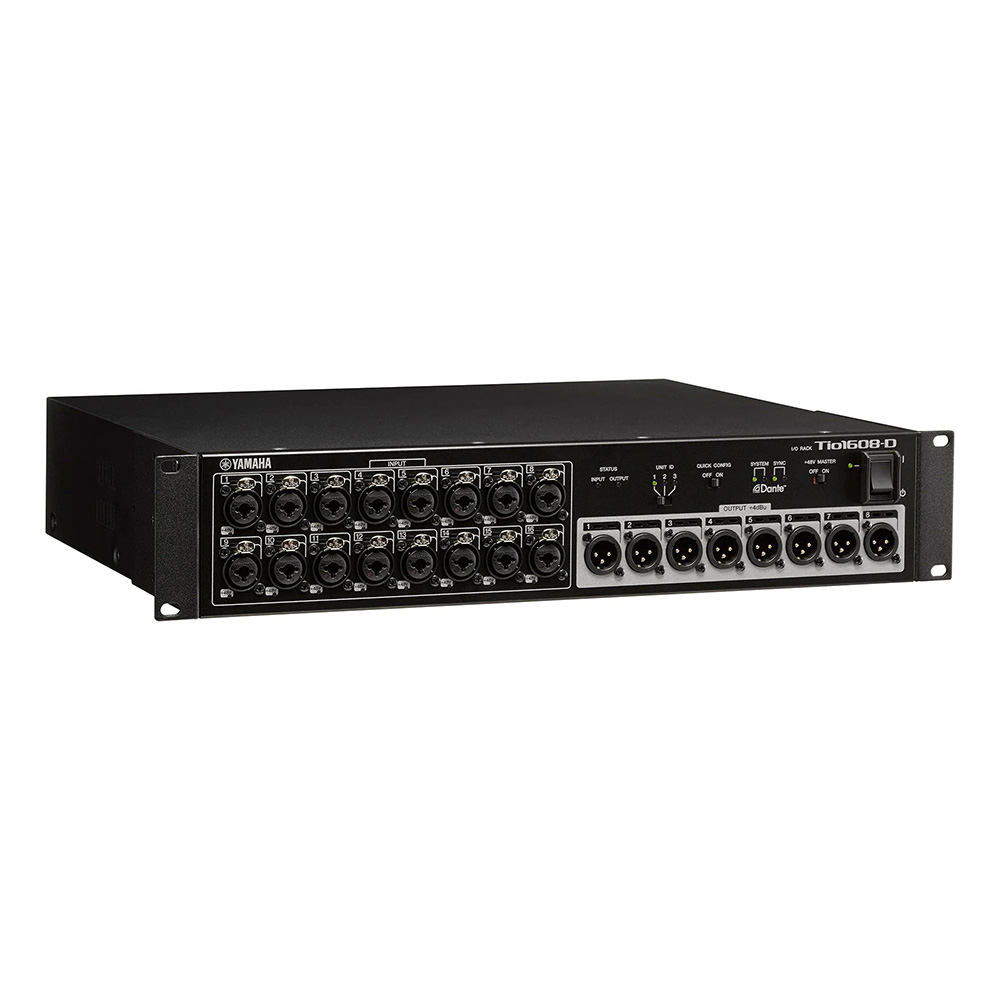

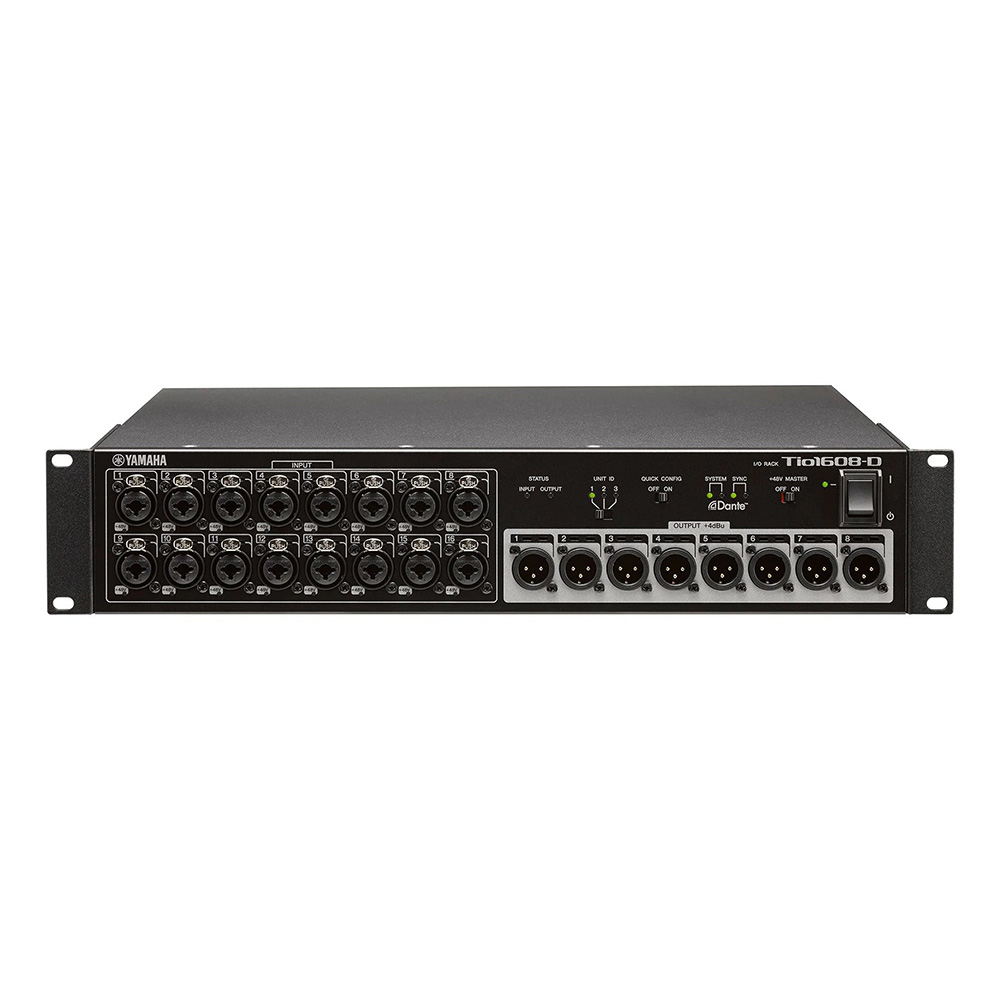

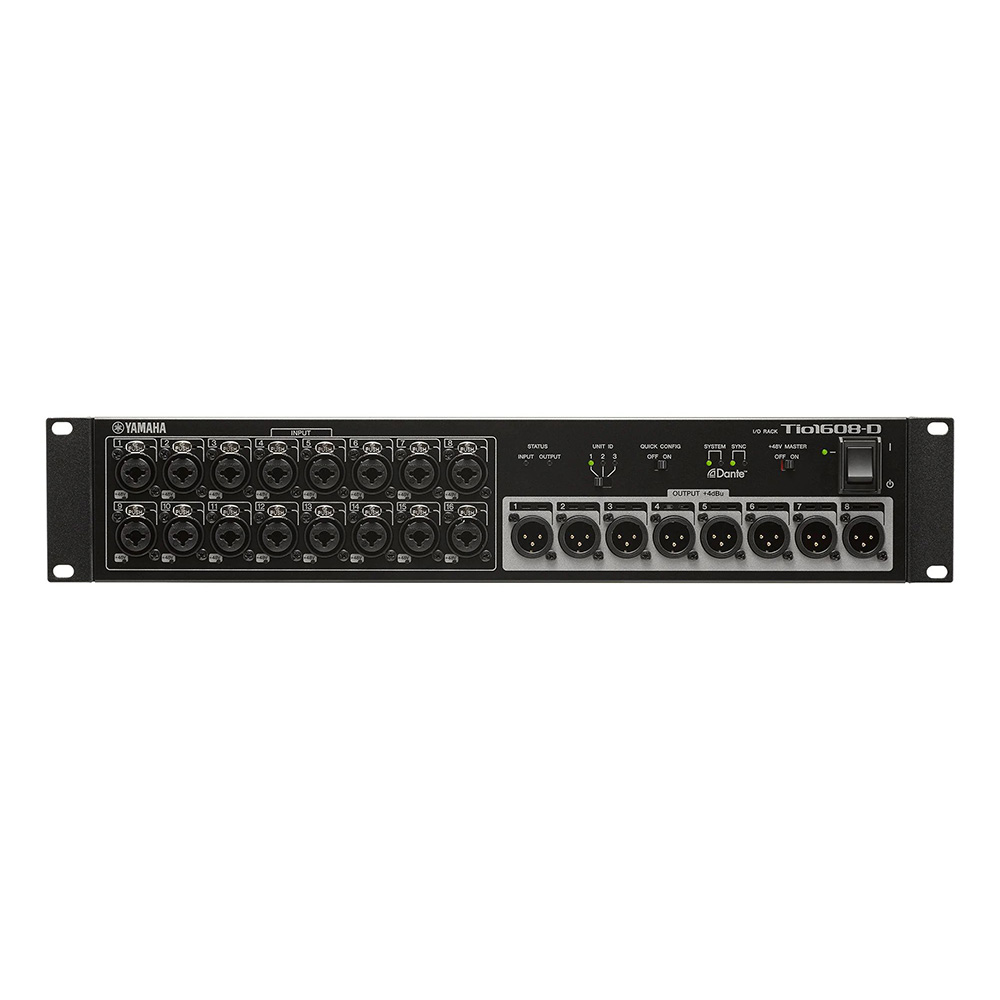

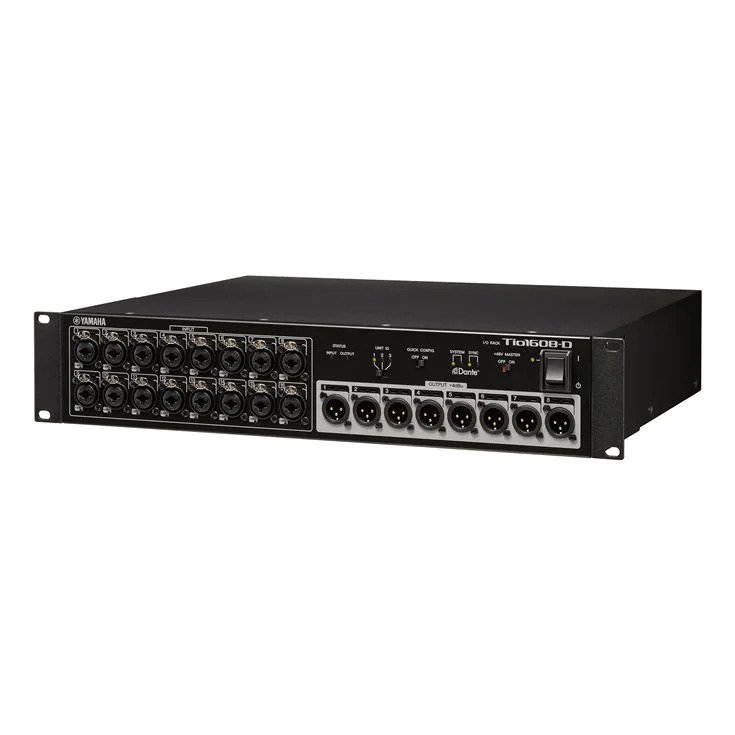

The Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs.

Description

Digital Stagebox System with a Maximum of 3 units

Users wishing to expand on the TF’s already extensive input/output capability can easily add up to 3 units with the optional NY64-D expansion card and Tio1608-D I/O racks. Daisy-chaining the main console offstage and Tio1608-D I/O racks on stage using lightweight CAT5e Ethernet cables allows low-latency, high-quality sound transmission without the time-consuming transport and setup of bulky analog snakes.

Yamaha

Dante High Reliability Network Audio Protocol

Dante has been adopted by the leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series consoles can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.

Fast and Easy QUICK CONFIG Mode

By enabling the QUICK CONFIG mode on the Tio1608-D, all the connection settings such as network settings and audio patching are set automatically making system configuration easy. After confirming QUICK CONFIG mode is activated on the TF console and Tio racks, simply set a UNIT ID for each Tio1608-D, then daisy chain the TF console and the Tio racks. Turn on the power and you’re ready to go!

Simple and Flexible Input Selection

Once the basic configuration is completed you can easily assign inputs to best suit your system setup. By using the ALL INPUT function, users can assign all inputs to the Tio racks, the TF console or a PC/Mac device instantly. Users can also change each input to receive signal from multiple locations so that users can effectively use all inputs.

Recallable D-PRE preamplifiers

The Tio1608-D inherits the natural, musical sensibility that we pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consistent, natural, musical sound throughout the entire system.

System expansion with Tio1608-D

Tio1608-D allows you to easily expand a TF digital mixer system up to 40ch inputs/24ch outputs. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.

Sampling frequency rateExternal44.1kHz or 48kHz
Signal delayLess than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortionLess than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHz
Frequency response+0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz
Dynamic range108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
Hum & noise levelEquivalent input noise-128dBu, Gain=+66dB *Measured with A-weighting filter
Residual output noise-88dBu, ST master off *Measured with A-weighting filter
Crosstalk-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz
Heat dissipation100-240V, 50/60Hz, 43.5kcal/h
Power requirements100-240V, 50/60Hz
Power consumption50W
DimensionsW480mm (18-7/8″)
H88mm (3-4/8″)
D364mm (14-3/8″)
Net weight5.7kg (12.6lbs)
AccessoriesOwner’s Manual, Power Cord(2.5m), Rubber stoppers(4)
OthersTemperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃
