Yamaha R Series (AD/DA) Output Rack Ro8-D

Yamaha R Series (AD/DA) Output Rack Ro8-D

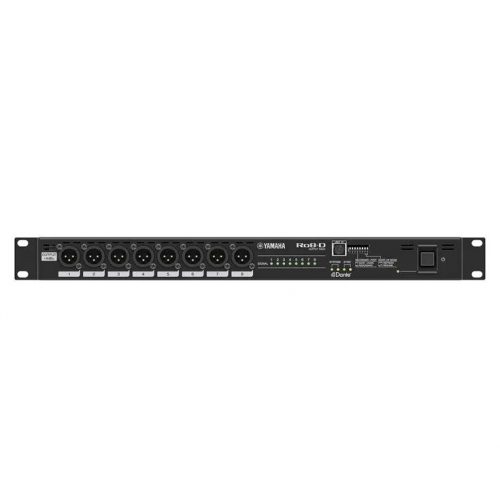

The 1U size Ro8-D has 8 outs.

Description

Signal Delay:

Less than 3 ms INPUT to OUTPUT, connect with CL5 using DANTE, DANTE Receive Latency set to 0.25 ms(one way), Fs = 48 kHz



Total Harmonic Distortion:

Less than 0.05% 20 Hz – 20 kHz @ +4 dBu into 600Ω, Fs = 44.1 kHz, 48 kHz

/ Less than 0.05% 20 Hz – 40 kHz @ +4 dBu into 600Ω, Fs = 88.2 kHz – 96 kHz INPUT to OUTPUTInput Gain = Min



Frequency Response:

+0.5, -1.5 dB 20 Hz – 20 kHz, refer to +4 dBu output @1kHz, INPUT to OUTPUT, Fs = 44.1 kHz, 48 kHz

+0.5, -1.5 dB 20 Hz – 40 kHz, refer to +4 dBu output @1kHz, INPUT to OUTPUT, Fs = 88.2 kHz, 96 kHz



Dynamic Range:

108 dB typ., Equivalent Input Noise, Input Gain = Min



Crosstalk:

-100 dB, adjacent INPUT/ OUTPUT channels, Input Gain = Min



Power Requirements:

110 – 240V

50/60 Hz



Power Consumption:

35 W



Dimensions:

Width: 480 mm (18-7/8″ )

Height: 44 mm (1-3/4″)

Depth: 359 mm (14-1/8″)



Net Weight:

4.4 kg (9.7 lbs.)
