Yamaha STAGEPAS 600i

Yamaha STAGEPAS 600i

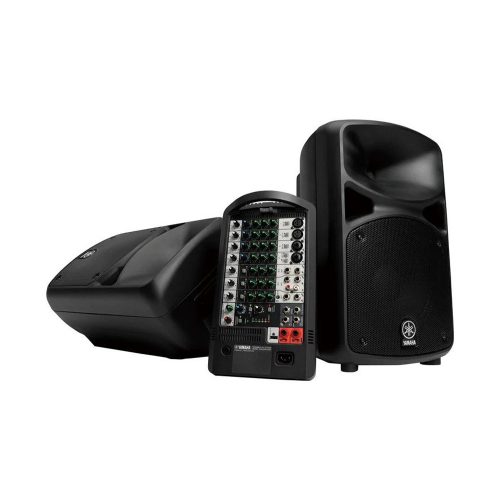

680-watt, portable PA system with 10-channel powered mixer, two 10″ speakers, iPod/iPhone USB connection, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

  • 680W (340W + 340W) power output

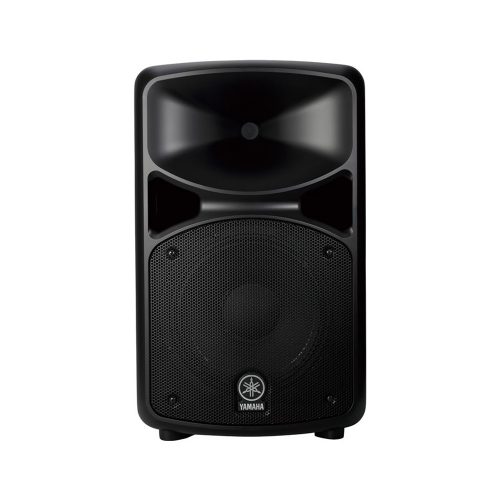

  • Newly designed high quality speakers (LF:10″ woofer/ HF:1.4″ voice coil compression driver)

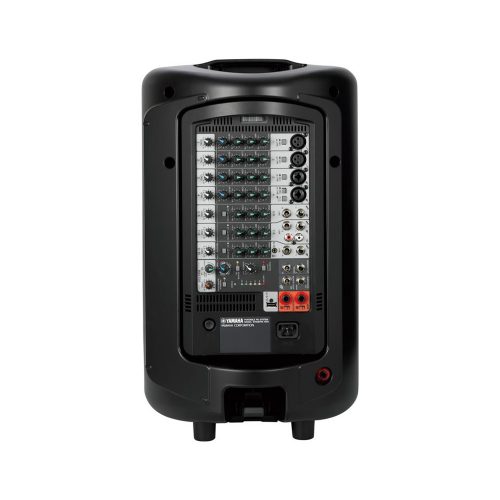

  • Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
  • iPod/ iPhone USB connection
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 3-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

Description

Frequency range (-3 dB):

55 Hz – 20 kHz



Maximum output level (1 m; on axis):

129 dB SPL/ speaker



Power requirements:

100 V – 240 V, 50/60 Hz



Power consumption:

35 W (Idle), 100 W (1/8 Power)



Dimensions(W x H x D):

Speaker: 335 x 545 x 319 mm (13.2″ x 21.5″ x 12.6″ )

Mixer: 348 x 197 x 135 mm (13.7″ x 7.8″ x 5.3″)


Net weight:

25.4 kg (56 lbs.) (2 x Speaker 10.8 kg + Mixer 3.8 kg)

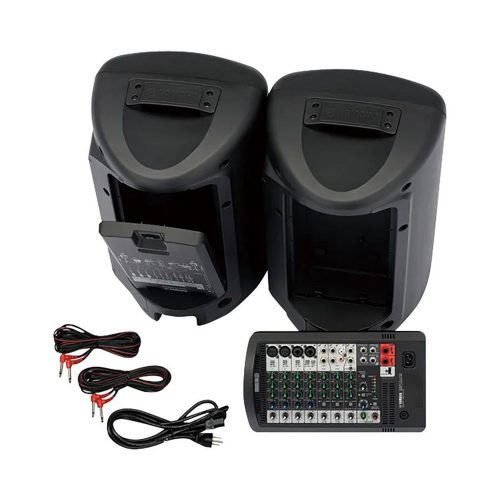

Included Accessories:

Cover panel

Power Cord (2 m)

2 x Speaker cables (6 m)

12 x Non-skid pads
