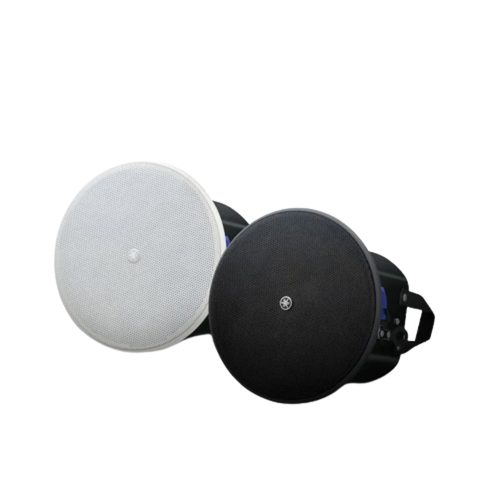

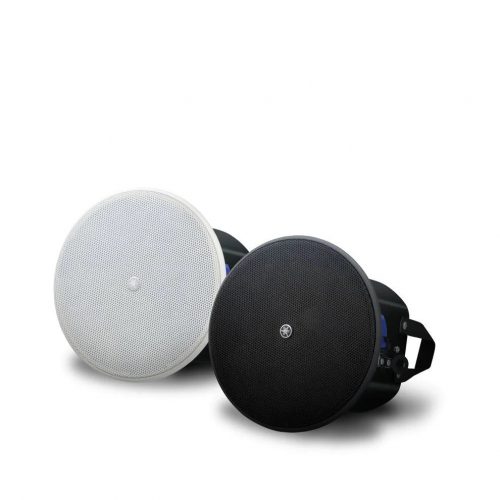

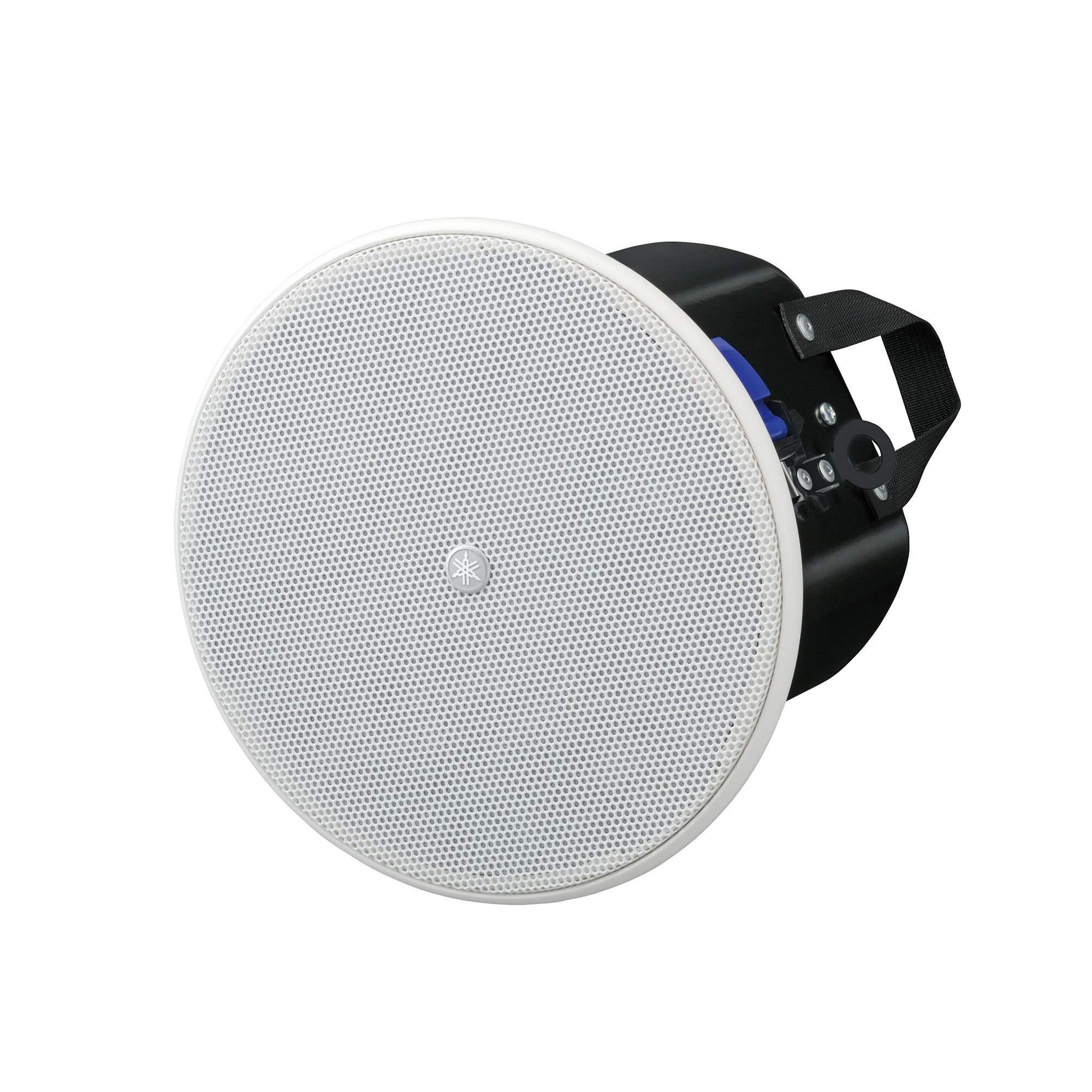

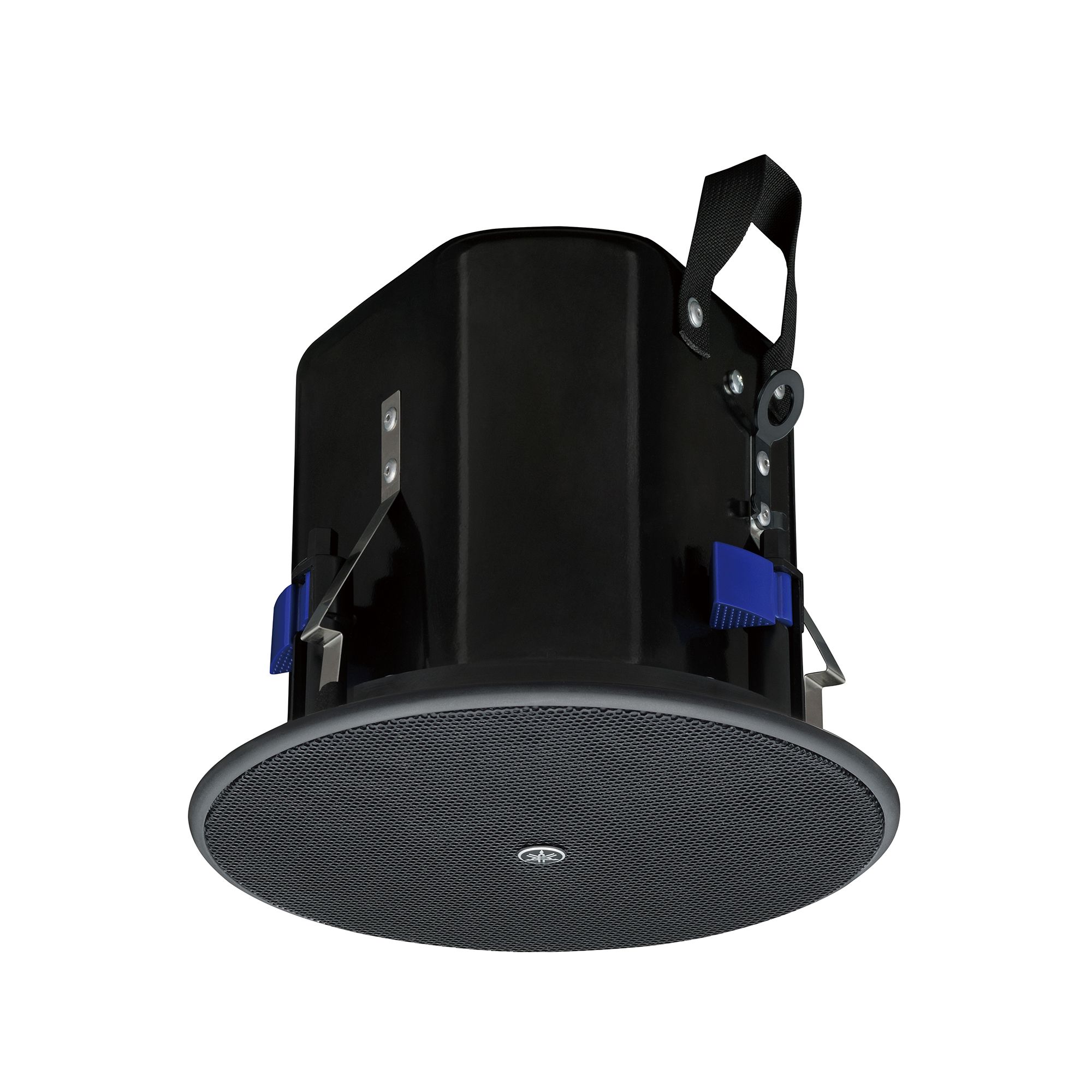

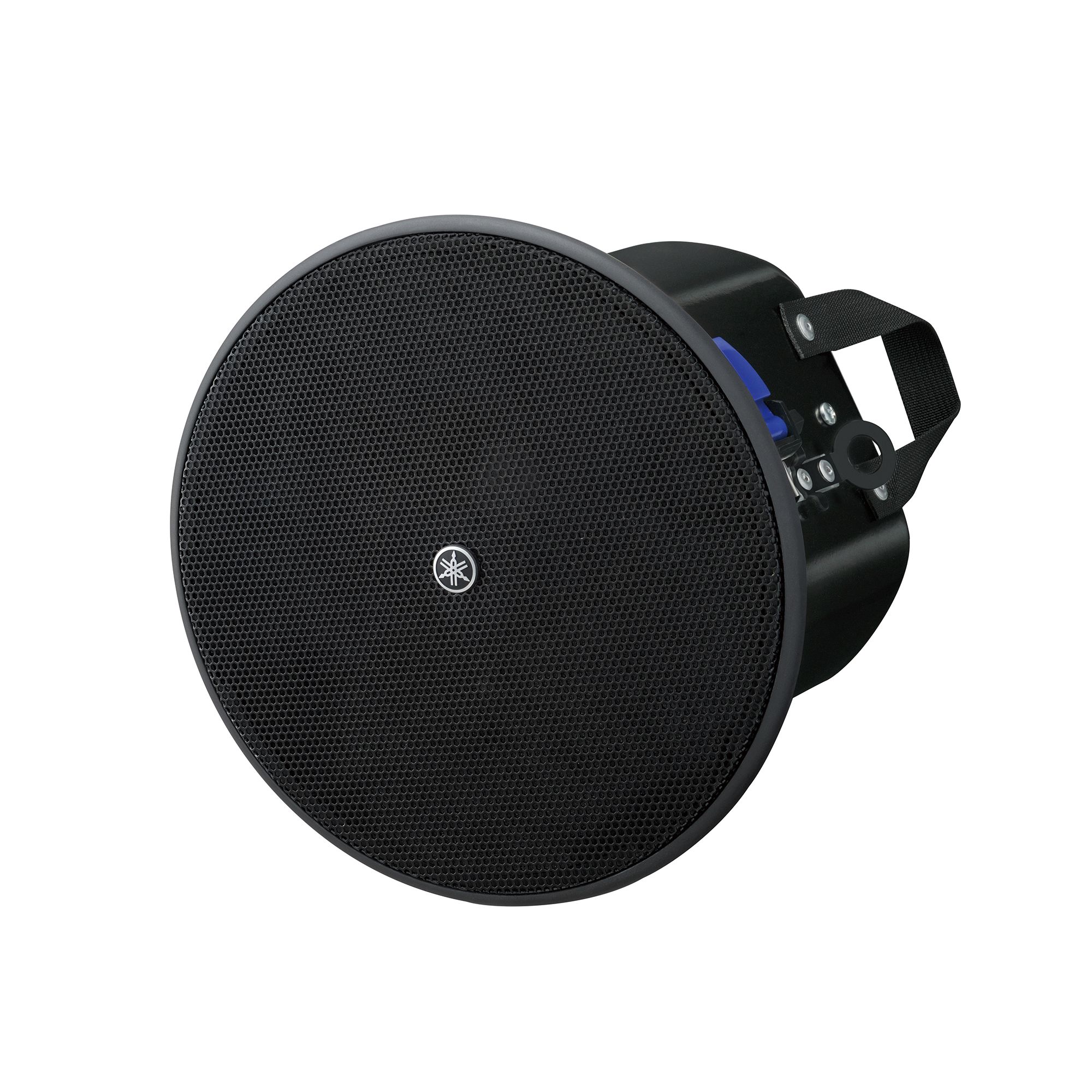

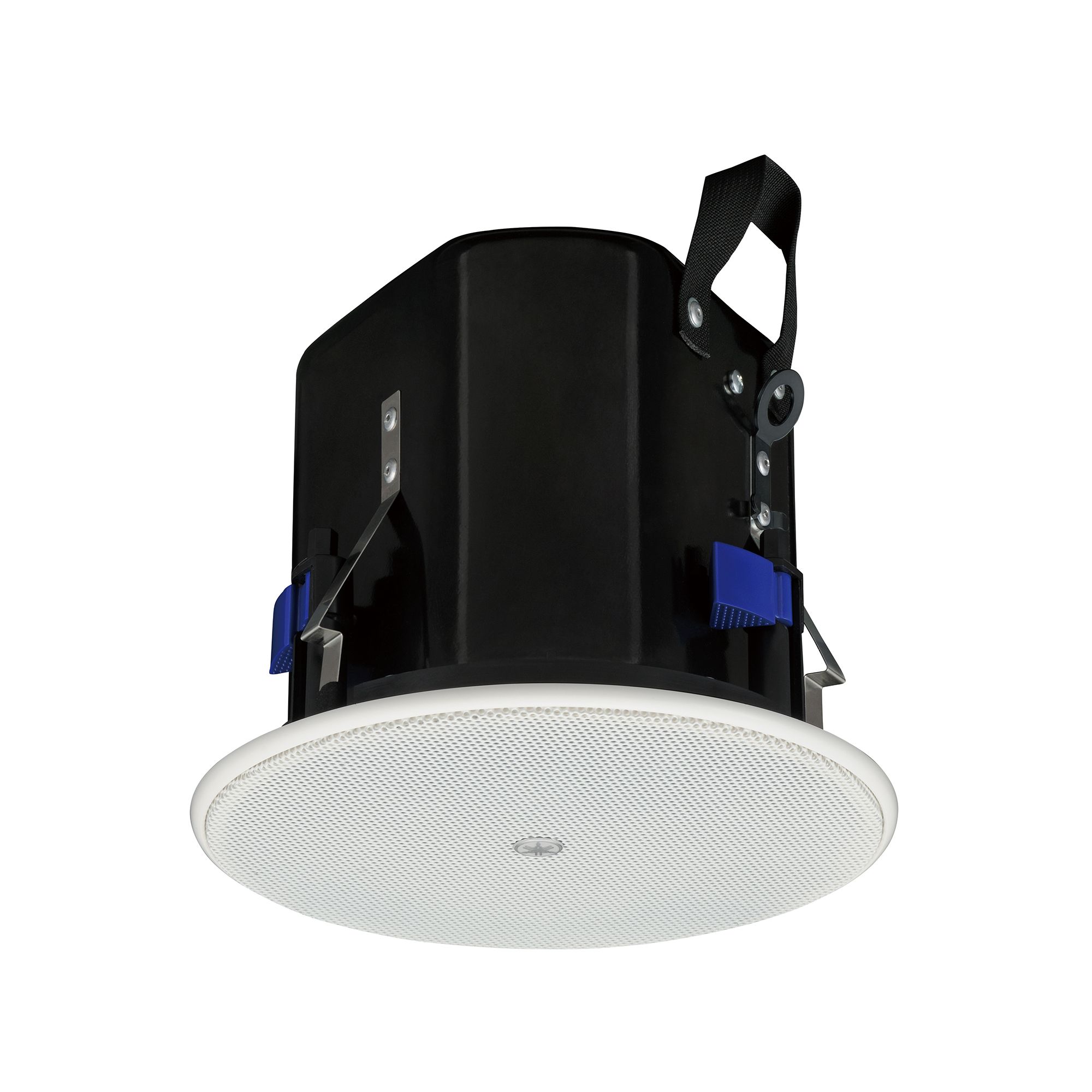

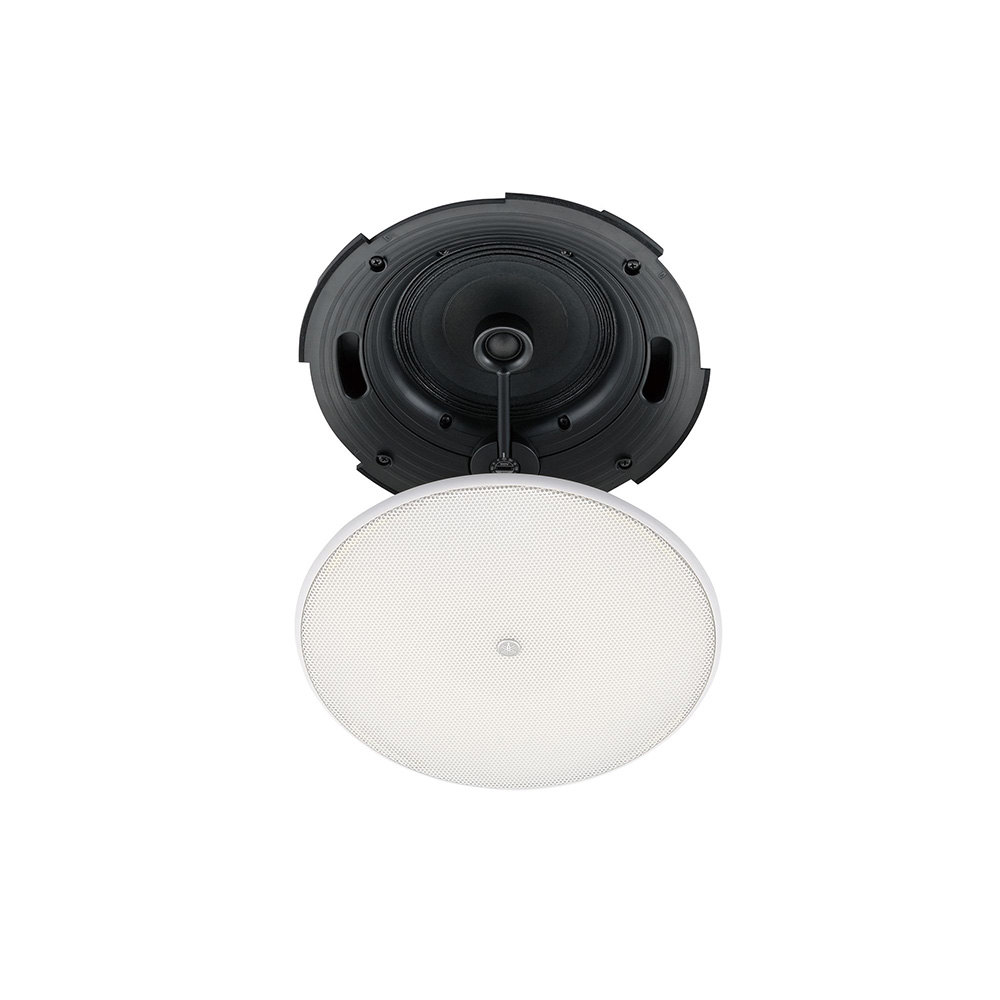

Yamaha VXC Series VXC4 / VXC4W

Yamaha VXC Series VXC4 / VXC4W

Full-range loudspeaker with a 4″ driver

Description

Speaker type:

Full-range, Bass-reflex



Frequency range (-10 dB):

80 Hz – 20 kHz (Half-space: 2π)



Nominal coverage:

130° conical (Half-space: 2π)



Components:

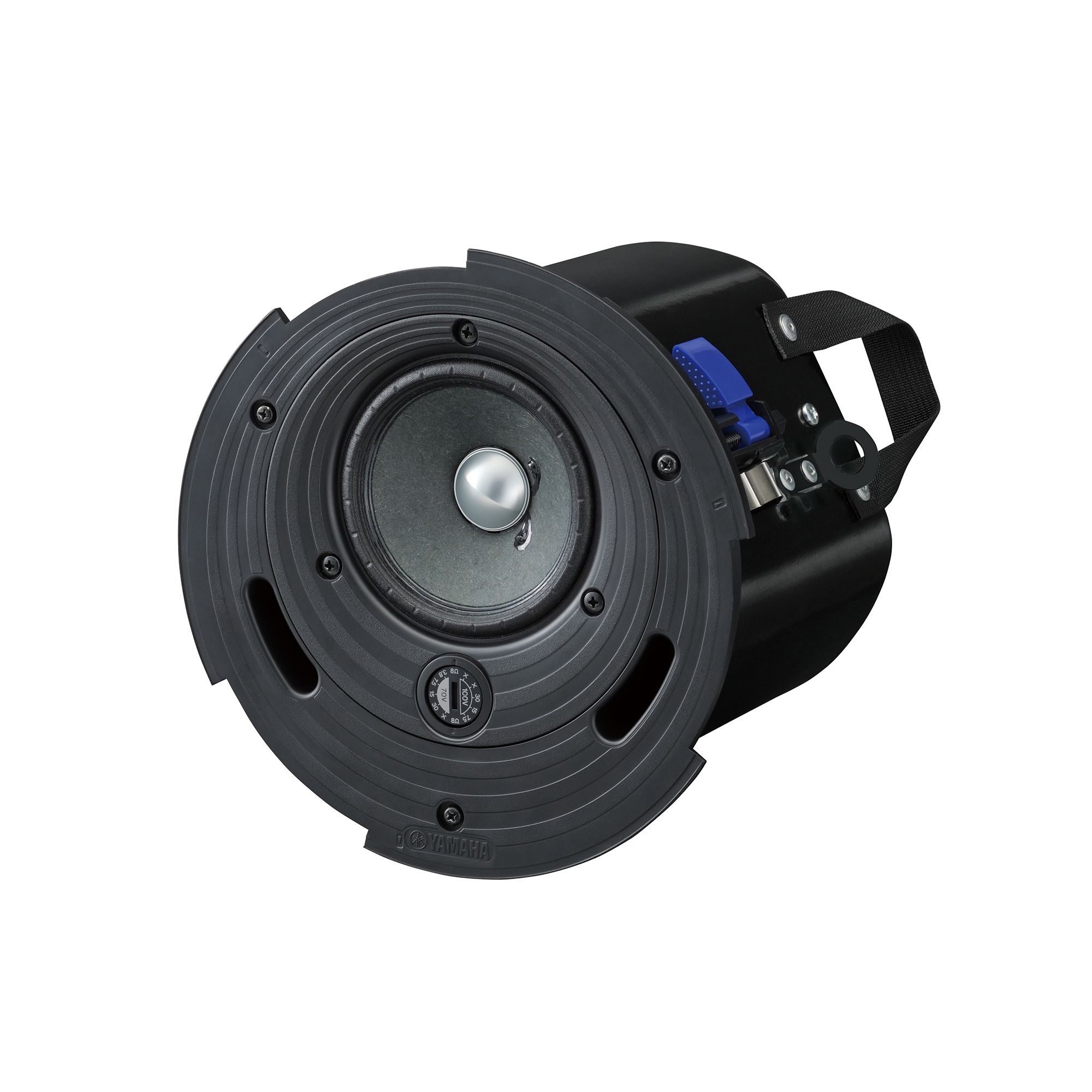

LF – HF: 4″ full-range



Power rating:

NOISE: 30 W

PGM: 60 W

PEAK: 120 W



Nominal impedance:



SPL:

Sensitivity (1W; 1m on axis): 87 dB SPL (Half-space:2π)

Peak (Calculated): 108 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)



Dimensions:

Diameter225 mm (8.9″)

Depth: 195 mm (7.7″)



Net weight:

2.6 kg (5.7 lbs.)

Included Accessories:

O-ring

Tile Rail

Cutout Template
