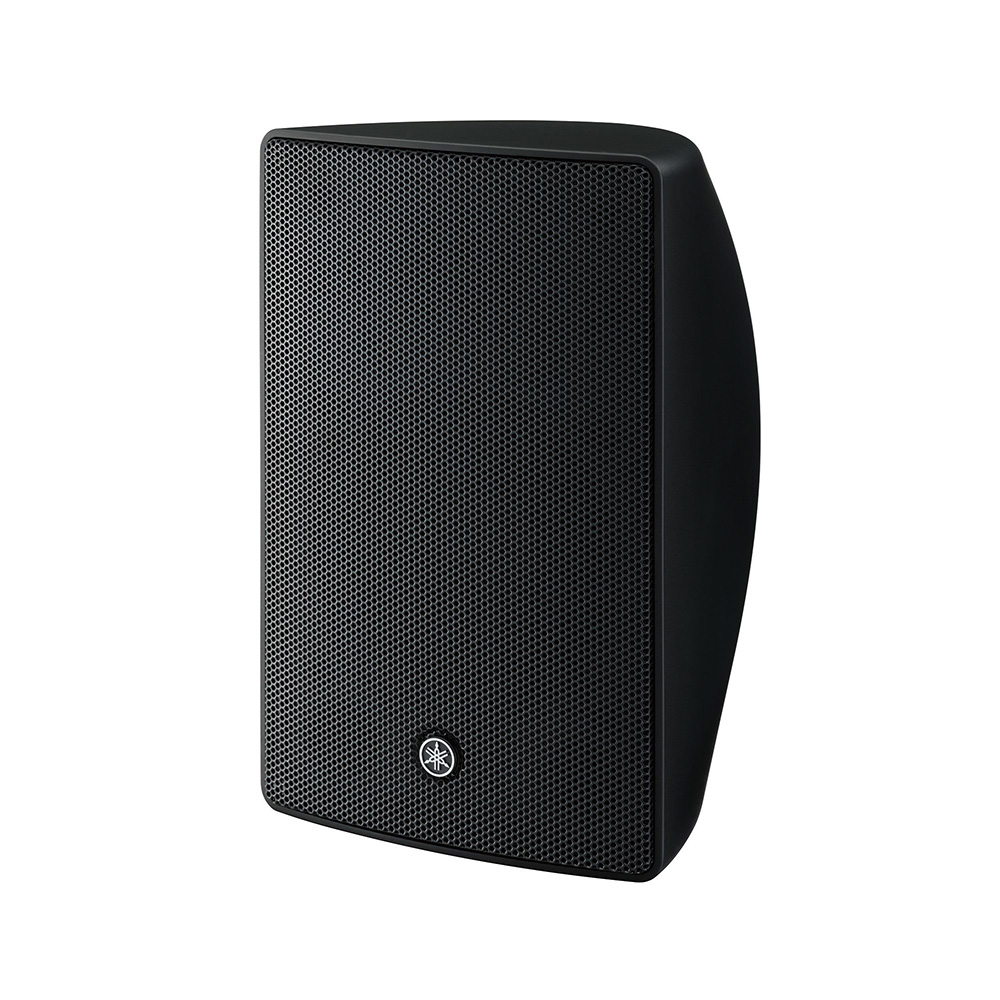

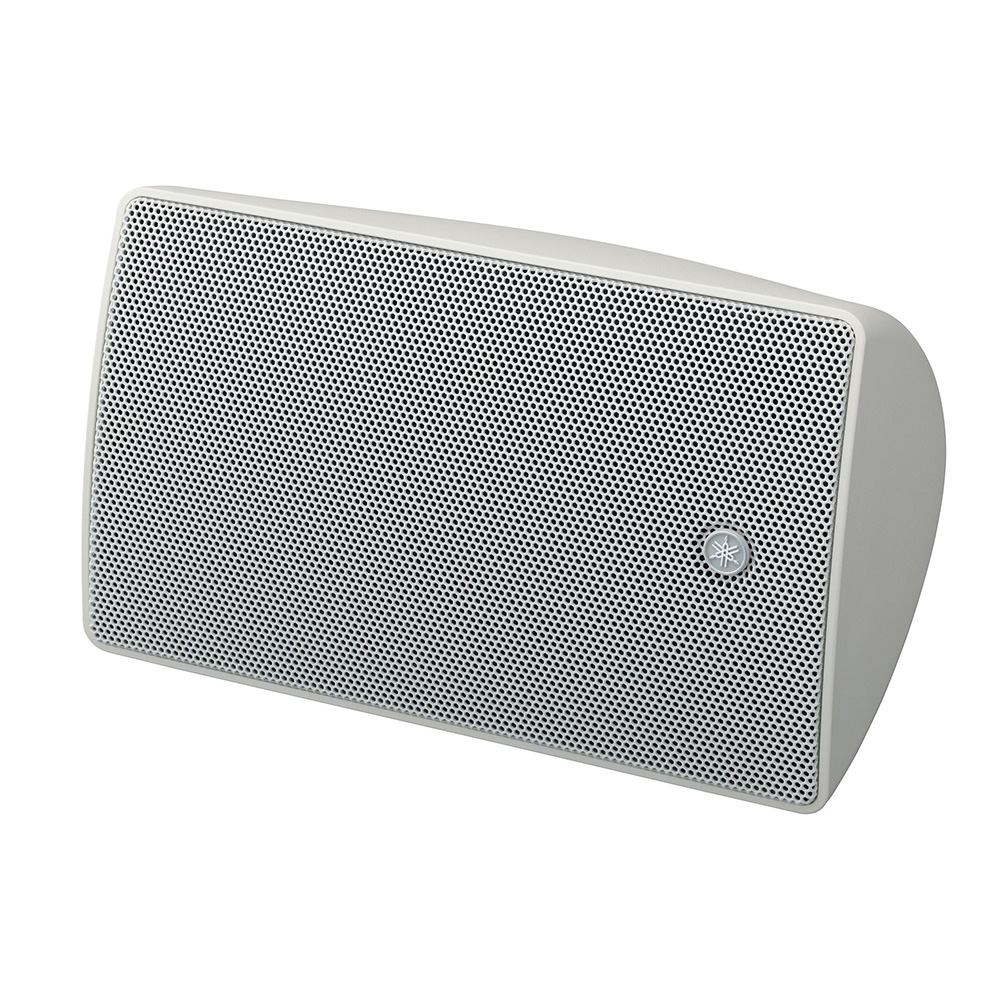

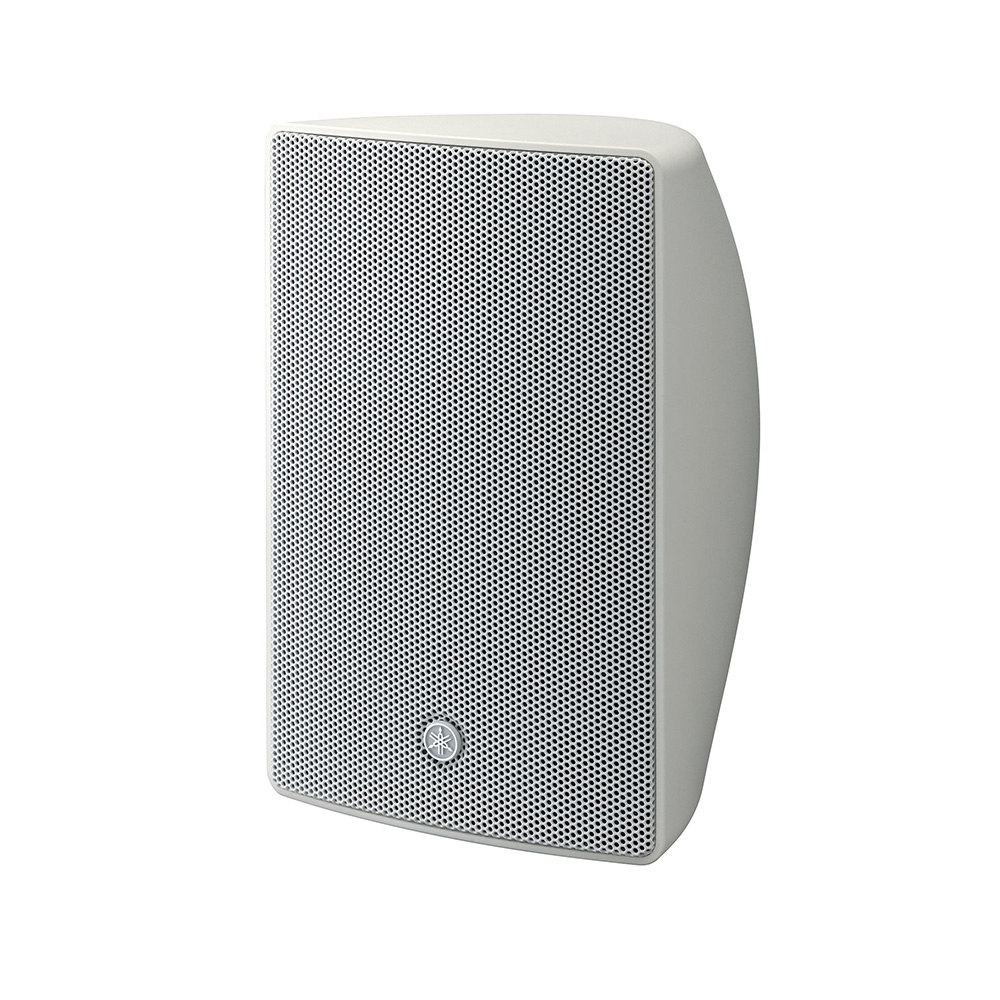

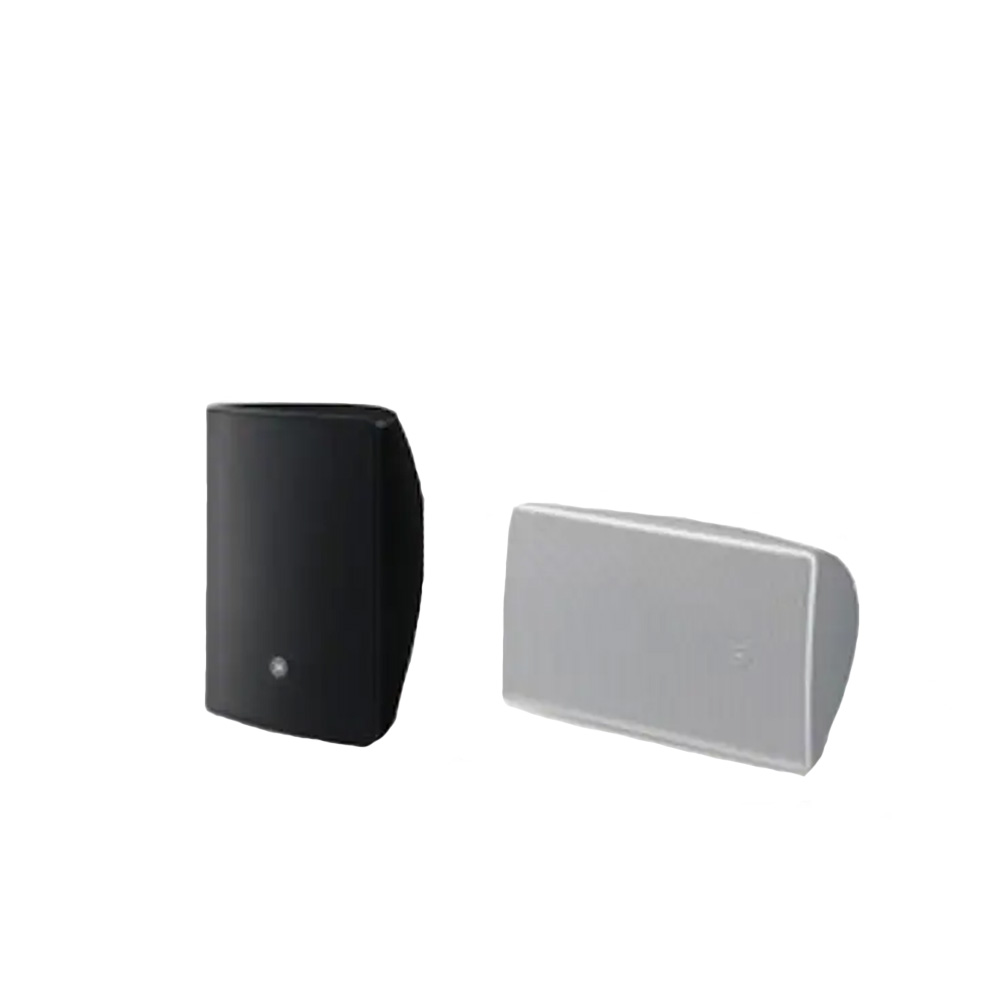

Yamaha VXS Series VXS5/ VXS5W

Yamaha VXS Series VXS5/ VXS5W

5.25″ cone woofer with a 0.75″ soft dome tweeter

Description

Speaker type:

2-way, Bass-reflex



Frequency range (-10 dB):

62 Hz – 20 kHz



Nominal coverage:

H: 120°

V: 120°



Components:

LF: 5.25″ Cone

HF: 0.75″ Soft dome


Crossover:

3 kHz



Power rating:

NOISE: 75 W

PGM: 150 W



Nominal impedance:



SPL:

Sensitivity (1W; 1m on axis): 89 dB SPL

Peak (Calculated): 114 dB SPL



Dimensions:

Width: 176 mm (6.9″)

Height: 280 mm (11.0″)

Depth: 163 mm (6.4″)


Net weight:

3.6 kg (7.9 lbs.)

Included Accessories:

Wall / Ceiling mount bracket

Terminal cover
