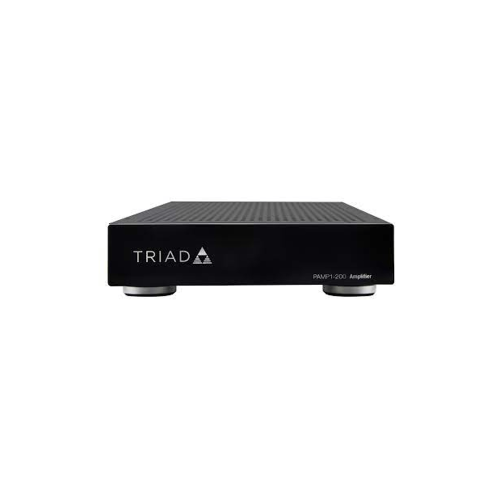

The Triad 1-Zone High-Power Amplifer delivers high performance, reliability, and robust amplification in a compact form factor—providing the perfect solution for distributed audio systems. Fast wake-from-standby time and high-resolution audio quality output make this amplifier worthy of any audio solution. Use Triad Power Amplifiers with Triad speakers, Triad Audio Matrix Switches, and Control4 EA Series Entertainment and Automation Controllers to deliver a fantastic high-resolution audio experience throughout the home. Featuring 200W per channel in stereo mode or 300W when driving one channel, the Triad 1-Zone High-Power Amplifier is an excellent choice to drive Triad passive subwoofers, Designer Series, and other speakers with high-power demands. The loop output and power controls offer flexibility and the convenient connectivity needed to power multiple sets of outdoor speakers to cover large outdoor areas.



• Powerful, Class D amplification driven by
ICEpower modules delivers a dynamic,
high-resolution audio experience
• 2.5 ohm-stable amplification provides
flexibility to power low-resistance speakers
• With a half-rack space form factor, two
amplifiers can be mounted side by side in a
1U rack space (rack ears included)
• Fast, 2-second wake-from-standby using
12V trigger from Triad Audio Matrix
Switches—ideal for time-sensitive audio
announcements and quick zone turn on
• Standby mode saves energy by muting
audio when not in use
• Three power control options—12V trigger,
audio sensing, or always on
• Loop output allows you to chain amplifiers
together to create large audio zones
• Overcurrent protection prevents amplifier
channels from overloading due to short
circuits or incorrect wiring
• Thermal protection shuts down amplifier
channels if thermal limits are exceeded,
preventing damage

Triad 8-Zone Power AmplifierTS-PAMP1-200

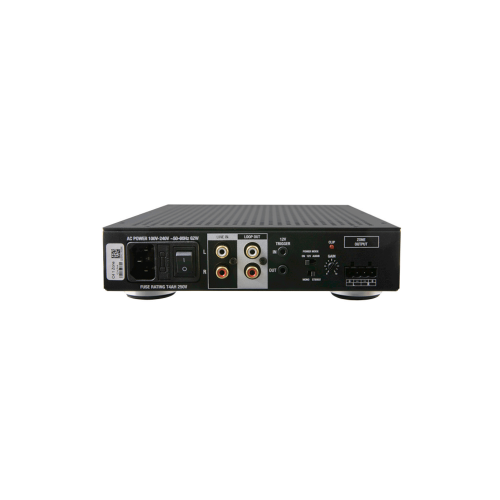

Audio inputs1 stereo, RCA style
Global audio output1 stereo, RCA style
Zone speaker outputs1 stereo, RCA style
Mono/Stereo mode1 × 2-position switch
12V trigger control1 × 3.5 mm (in)
1 × 3.5 mm (out)
Power mode switch1 × 3-position switch—always on, 12V, or
audio sense
Wake-from-standby<2 seconds with 12V trigger
~3 seconds with audio sense
Standby power consumptionLess than 0.50W
2 channels driven200W per channel @ 4 Ω
100W per channel @ 8 Ω
1 channel driven 300W @ 4 Ω (Note: Do not bridge)
150W @ 8 Ω
Minimum impedanceStable to 2.5 Ω
Frequency response±0.4 dB, 10 Hz - 20 kHz, all loads
Dynamic range110 dBA
Idle noise100uV, A-weighted, 20 Hz - 20 kHz
Upper bandwidth, -3 dB > 50 kHz, 4 or 8 Ω
Input impedance47 kΩ, f=1 kHz
THD0.008%, 4 Ω, f=100 Hz, Po=1W
AC mains powerUniversal mains 100 - 240VAC 50 - 60 Hz
Fuse rating4A
Power connectionIEC 320 C13 connector with 3-pole
detachable cord
Operating temperature32 °F ~ 113 °F (0 °C ~ 45 °C)
Humidity 5% to 95% non-condensing
Storage-4 °F ~ 158 °F (-20 °C ~ 70 °C)
Thermal dissipationPassive cooling, side vented
H × W × D (with feet)2.08 × 7.87 × 10.12" (53 × 200 × 257 mm)
H × W × D (without feet)1.73 × 7.87 × 10.12" (44 × 200 × 257 mm)
