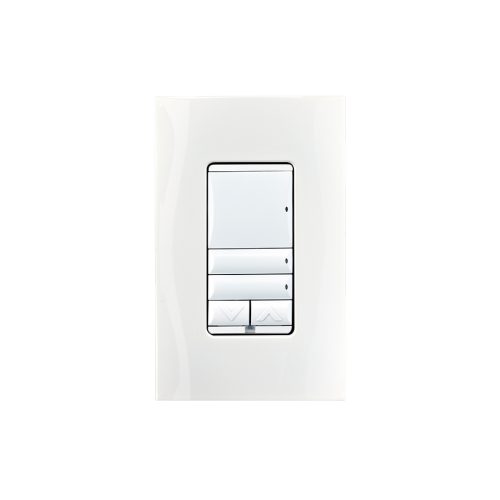

Control4 Wireless Configurable Keypad

Control4 Wireless Configurable Keypad

An elegant and customizable user interface that unlocks the power of one-touch automation, enabling control of lighting, plus control of audio, video, security and more, this fully customizable keypad can be configured with two to seven custom-engraved, LED backlit buttons, using four different button sizes, for a total of 37 possible configurations. Available in 9 stylish colours and finishes. 120V, 240V, or 277V.

Categories: , , ,

Description

Product Brochure

Control4 Keypads provide a stunning interface for your Control4 Smart Home system, combining flexible button configuration with beautiful aesthetics to complement the decor of your home. With the simple press of a button, you can activate a scene, allowing events to happen simultaneously.

  • Can include 1-6 LED backlit engraved buttons in various combinations. The bottom button can also include up and down volume arrows. Four different button sizes allow for a total of 38 possible configurations.
  • Mix-and-match engraved buttons and sleek, screwless faceplates with 12 stylish colors and gloss and satin finishes.
  • Available in 120V, 240V, or 277V.
  • Buttons allow for quick control of your favorite scenes. For example, a "Goodnight" button can be configured to shut off all the lights, lock the doors and arm the alarm, all at once.

Model NumberC4-KC120277 and C4-KC240
Power RequirementsC4-KC120277: 110-277VAC +/-10%, 50/60Hz or 36VDC
C4-KC240: 220VAC-240VAC +/-10%, 50/60Hz or 36VDC
This device requires a neutral AC connection.
Power Consumption120V: 350mW
240V: 480mW
277V: 540mW
36VDC: 430mW
Environmental
Operational Temperature32˚ F - 104˚ F (0˚ C - 40˚ C)
Humidity5% to 95% non-condensing
Storage-4˚ F – 158˚ F (-20˚ C – 70˚ C)
Miscellaneous
Control CommunicationsZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread
spectrum radio
Wallbox Volume4.75 cubic inches (77.8 cubic centimeters)
Weight0.12 lb. (0.05 kg)
Shipping Weight0.18 lb. (0.08 kg)
Available Colors
C4-KC120277-xxWH, LA, IV, BR, BL, SW, MB, BI, AU
C4-KC240-xxWH, BL, SW, MB, BI, AU
Available Accessories
Faceplate, 1 Gang (C4-FP1-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 2 Gang (C4-FP2-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 3 Gang (C4-FP3-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Faceplate, 4 Gang (C4-FP4-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU, SN, SS, VB
Color Kit (C4-CKKC-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Single High (C4-EBD1H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Double High (C4-EBD2H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
Engraved Button, Triple High (C4-EBD3H-xx)WH, LA, IV, BR, BL, SW, MB, BI, AU
