Epson ELPDC21 Document Camera Full HD 1080p

Epson ELPDC21 Document Camera Full HD 1080p

YOUR PARTNER IN ENRICHING THE CLASSROOM EXPERIENCE

Cut through the hassle, and get straight to your presentation. Epsons series of document cameras not only captures details with Full HD resolution, its versatile connectivity also gives you great functionality.

  • Pixels: 2MP (1920 x 1080 pixels)
  • Camera Sensor: 1/2.7 inch CMOS Sensor
  • Resolution: Up to Full HD (1080p)
  • Zoom: 10x Digital Zoom, 12x Optical Zoom
  • Weight: Approx 3.0kg
Categories: , , ,

Description

Product Brochure

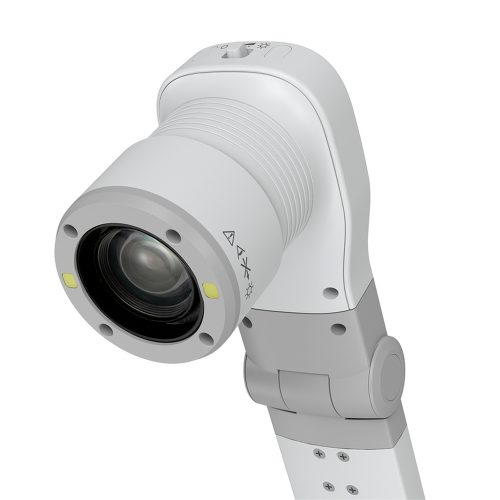

Built-in LED Light

The built-in LED light illuminates objects so that you can project objects clearly even if the surrounding area is dimly lit.

Epson

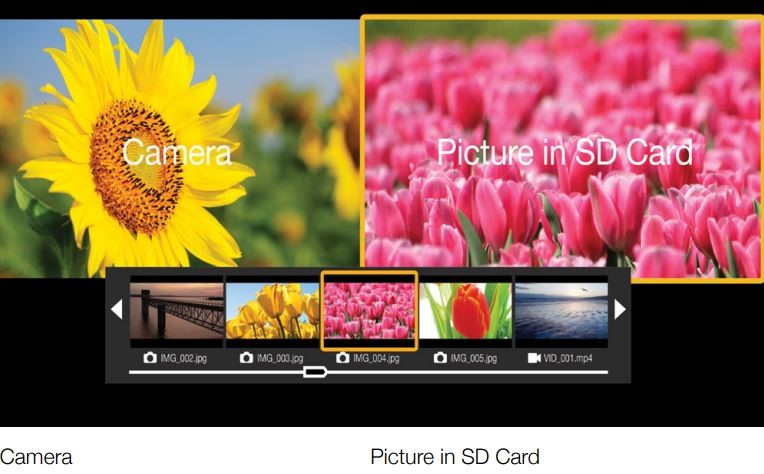

Split Screen

Split screen capability enables projection of a live video and still image from a SD card. The versatile remote controller works for both document camera and projector. Using the split screen, viewers can enjoy both still and moving images.

Epson

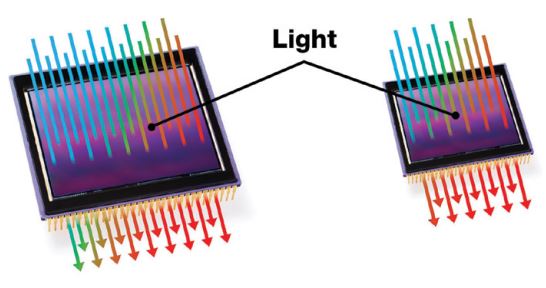

Larger Imaging Sensor

Achieve sharp, clear images with amazing quality and detail in any light with the large imaging sensor, which captures more light per pixel. The ELPDC21 automatically detects the native aspect ratio of projectors and selects the correct output resolution to match.

Epson

SensorPick-Up DeviceCMOS
Size1 / 2.7”
Effective Pixels2M Pixels (1920 x 1080)
Native Resolution1080p (16:9 Aspect Ratio)
Frame RateUp to 30fps
Video OutputDisplay OutSXGA (1280 x 1024) / XGA (1024 x 768) / WXGA (1280 x 800) /
HD (1360 x 768) / 1080p (1920 x 1080)
HDMI480p / 720p / 1080p
USB-BVGA / SVGA / XGA / SXGA / WXGA / 720p / 1080p
LensTypeOptical Zoom / Focus
F-NumberF = 3.4 – 5
Shooting AreaMax 297 x 526 mm at 1080p output resolution
ZoomUp to 10x Digital
Up to 12x Optical
FocusAutomatic (need to press “Focus” button),
Focus adjust time: less than 2 sec
IlluminationUpperWhite LED x 2 (variable LED light)

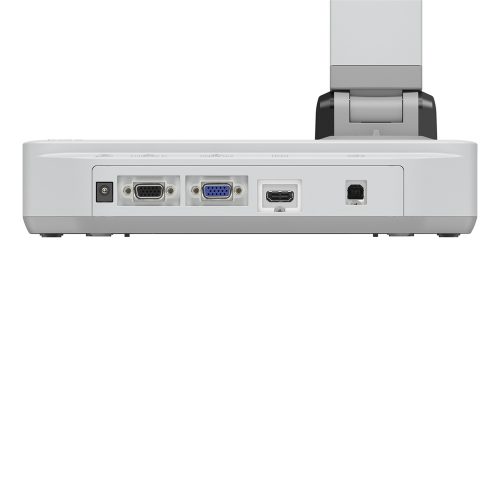

InputD-Sub 15Pin (VGA)1 (Black)
OutputD-Sub 15Pin (VGA)1 (Blue)
HDMI1 (in common with CEC control)
USB I/OType B x 1
Internal MicrophoneYes (Monoral)

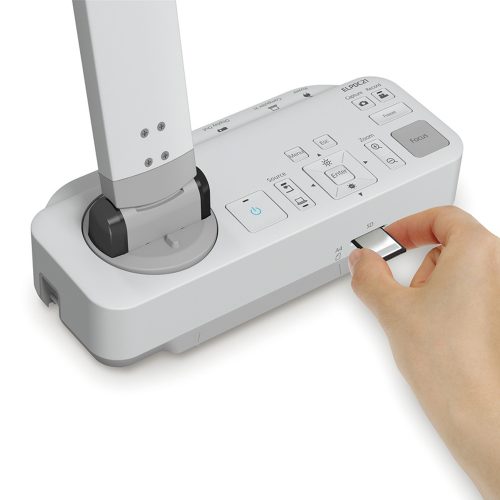

Memory I/OSD Card1 (SD / SDHC, No SDXC support)
FreezeYes
Output Source SelectYes
Image Brightness AdjustmentYes
Light Brightness ControlYes
Auto Detect Aspect RatioYes
Still Image CaptureYes (need external SD card)
Video CaptureYes (w/Audio) (need external SD card)
Digital Scroll / Pan / TiltYes (available for over 2x digital zoom) (without Zoom window)
Image File Play / SlideshowYes (need external SD card)
Split ScreenYes
ImageWhite BalanceYes (Auto, Cloudy, Daylight, Fluorescent, Incandescent)
FocusYes (Manual adjustment)
Focus LockYes
Image ModeYes (Normal, Text, Display)
Colour / B&W / NegativeYes (Colour, Black & White, Negative)
Image RotationYes (0, 180 degrees)

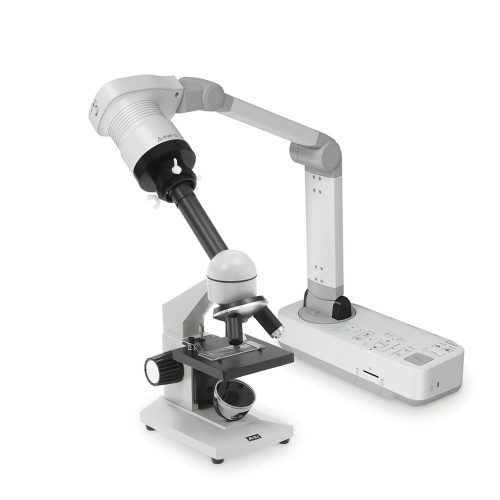

MicroscopeYes
Noise ReductionYes
FunctionHDMI OutputYes [Auto, SDTV (480p), HDTV (720p), HDTV (1080p)]
Output ResolutionYes [Auto, XGA (1024 x 768), WXGA (1280 x 800),
WXGA (1360 x 768), SXGA (1280 x 1024), Full HD (1920 x 1080)]
Flicker ReductionYes (50Hz, 60Hz)
LanguageYes
Sleep ModeYes
Sleep Mode TimerYes
HDMI LinkYes (On / Off)
PowerPower Supply Voltage100 – 240V AC (50/60 Hz)
Output Voltage Of AC Power Adapter12V
Power Consumption13W
Power Consumption (Standby)Less than 0.5W
Operating Temperature5 – 35 °C <41 - 95 °F> ( 0m / 0ft – 2,286m / 7,500ft ) ( 20% – 80% humidity, No condensation )
Open (D x W x H) 502 x 270 x 328 mm

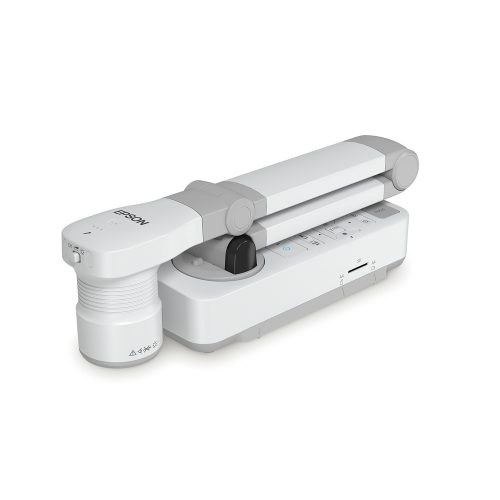

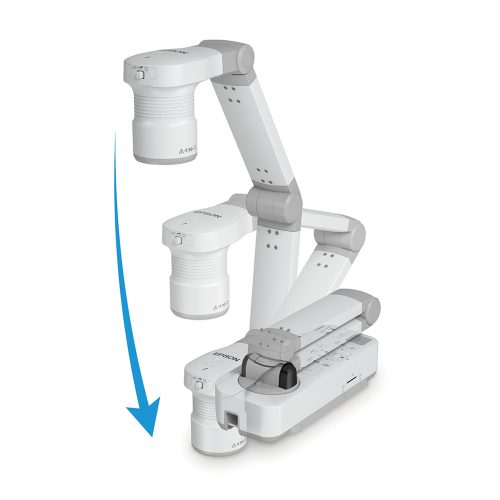

Folded (D x W x H)120 x 375 x 122 mm
WeightApprox. 2.6kg
Theft ProofKensington LockYes
Security BarYes
Security Lock HoleYes
