SKU Number | V11HA00052 |
Projection Technology | RGB liquid crystal shutter projection system |
LCD | Size | 0.61” (C2Fine) |
Native Resolution | Full HD (1080p)
|
Type | No Optical Zoom / Focus (Manual) |
F-Number | 1.60 |
Focal Length | 3.7mm |
Zoom Ratio | 1.0 – 1.35 (Digital Zoom) |
Throw Ratio | 0.26 – 0.36 (Wide to Tele) |
Lightsource | Type | Laser Diode |
Life (Normal / Extended) | 20,000 / 20,000 / 30,000 hrs |
Screen Size (Projected Distance) | 65” – 120” [37.2 – 70.3 cm] @ 16:9 |
60” – 110” [36.9 – 69.2 cm] @ 16:6 |
White Light Output (Normal / Extended) | 3,600lm / 2,500lm |
Colour Light Output (Normal / Extended) | 3,600lm / 2,500lm |
Contrast Ratio | Over 2,500,000:1 |
Sound Output | 16W Mono x 1 |
Vertical / Horizontal Keystone | ±3° / ±3° |
Quick Corner | Yes (Manual) |

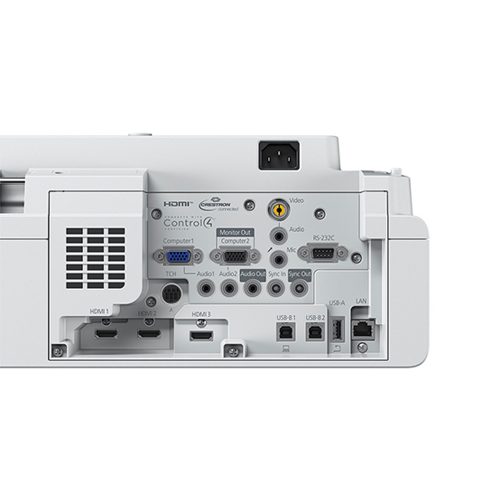

Analog Input | D-Sub 15Pin | 2 (Blue, Black) |
Composite | RCA x 1 (Yellow) |
Digital Input | HDMI | 3 (HDCP2.3) |
Analog Output Terminal | D-Sub 15Pin | 1 (Black) (in common with Computer 2) |
Audio Input | Stereo Mini Jack | 3 |
Mic Input | Stereo Mini Jack | 1 |
Audio Output | Stereo Mini Jack | 1 |
Others | USB Type A | 2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings) |
USB Type B | 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings) |
Mic I/O | Stereo Mini x 1 |
Control I/O | RS-232C | D-sub 9 pin x 1 |
Interactive Sync | N/A |
Touch Unit Control | l N/A |
Network | Wired LAN | RJ45 x 1 (100 Mbps) |
Wireless | Yes (ELPAP10 Option) |
Wireless LAN - Built-in | Supported Speed For Each Mode | Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 |
Supported Mode | Infrastructure, Access Point (Wi-Fi Direct) |
Wireless LAN Security | Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP ; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
Miracast / Screen Mirroring Built-In | Supported Speed For Each Mode | Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 |
Supported Mode | Infrastructure, Access Point (Wi-Fi Direct) |
Wireless Security | Supported Speed For Each Mode | Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES) |
Operating Temperature | Single Use | 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No Condensation |
Supported Mode | Multi-projection Use | 0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation |
Operating Altitude | Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft) |
Direct Power On / Off | Yes |
Start-Up Period | Less than 8 seconds, Warm-up Period: 30 seconds |
Quick Start-Up | Less than 5 seconds |
Cool Down Period | Instant Off |
Air Filter | Type | Electrostatic Filter |
Maintenance Cycle | 12,000 hours |
Power Supply Voltage | 100 - 240 V AC +/- 10 %, 50 / 60 Hz |
Lamp On (Normal / Eco) | 255W / 197W |
Standby (Network On / Off) | 2.0W / 0.5W |
Dimension Excluding Feet (D X W X H) | 395 x 356 x 133 mm |
Weight (with cable cover) | Approx. 5.7kg |
Fan Noise (Normal / Eco) | 36dB / 26dB |
