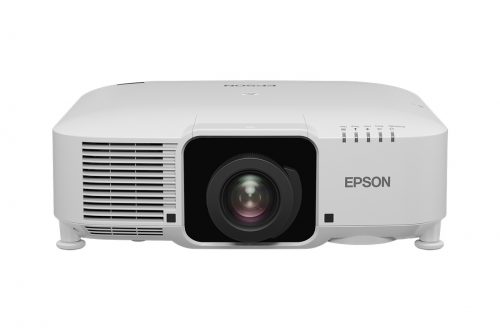

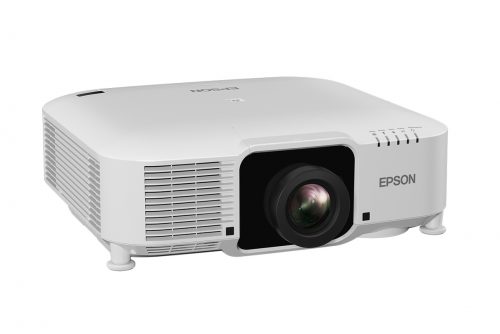

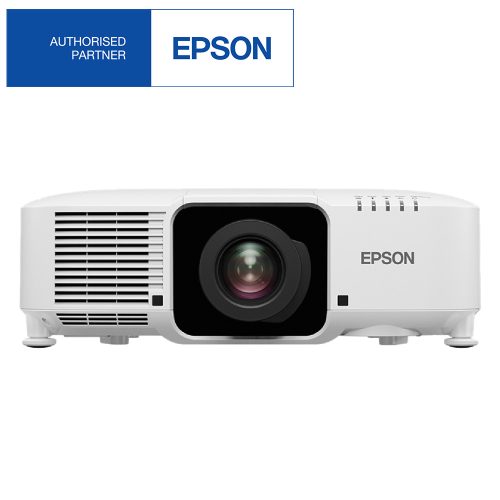

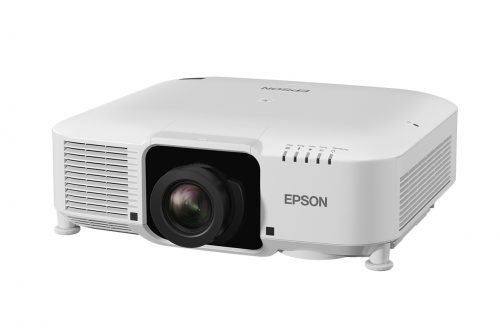

Epson EB-L1070UNL WUXGA Projector

Epson EB-L1070UNL WUXGA Projector

MORE THAN MEETS THE EYES.

A 7,000 lumen high brightness projector designed to deliver unyielding laser performance, from any position to most surfaces, up to 20,000 long lasting hours for the laser light source – maintenance-free.
Categories: ,

Description

Product Brochure

20,000 hours of maintenance-free use
The newly designed laser light source delivers 20,000 hours of maintenance-free for the laser light source only. And with the advanced electrostatic filter having an equally long-lasting life, you enjoy peace of mind in using these highly reliable laser projectors.

Epson

Adaptive Projection
EB-L1000 series can be rotated 360° in any direction - horizontally, vertically and rotationally - without any loss in image brightness. This makes it ideal for a wide range of applications, such as projecting onto ceilings and floors.

Epson

Borderless Multi Projection
Offering a variety of functions for multi-projector installations, the EB-L1000 series lets you adjust brightness, colour and the position of overlapping areas for seamless, beautiful displays. There is also an Auto Scaling function for easy multi-projector displays and an Advanced Edge Blending function for more precise edge-blending adjustment.

Epson

Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.76” (C2fine)
Native ResolutionWUXGA (1920 x 1200)
Projection LensTypePower Zoom / Power Focus / Power Shift
F-Number1.7 - 2.3
F-Number24.0 - 38.2 mm
Zoom Ratio1 - 1.6
Throw Ratio1.44 - 2.33 (Wide to Tele
Lens ExchangeYes
Lens ShiftModePowered
Vertical (Up / Down)±67%
Horizontal (Left / Right)±30%
LightsourceTypeLaser Diode
Life (Normal / Long)20,000 / 30,000 hours
Zoom: Wide50” - 1,000” [1.53 - 31.57 m]
Zoom: Tele50” - 1,000” [2.48 - 50.44 m
White Light Output (Normal / Eco)7,000lm / 4,900lm
Colour Light Output7,000lm
Contrast RatioOver 2,500,000:1
Sound OutputNA
Vertical / Horizontal Keystone±45° / ±30° (Zoom: Tele) (with Standard Lens)
Quick CornerYes
Curve SurfaceYes
Point CorrectionYes
Corner WallYes

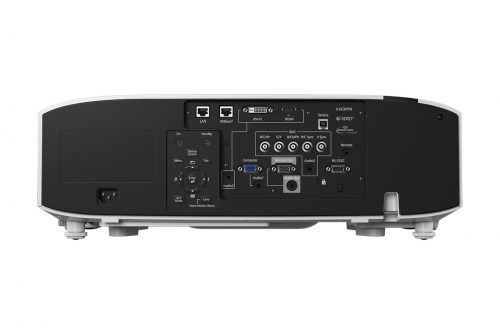

Analog InputD-Sub 15Pin1 (Blue)
5BNC1
Digital InputDVI-D1
HDMI1 (with HDCP 2.2)
HDBaseT (RX)RJ45 x 1 (with HDCP 2.2)
Output TerminalD-Sub 15Pin1
Audio InputStereo Mini Jack3
Audio OutputStereo Mini Jack1
OthersUSB Type A1 (Wireless LAN, Firmware Update, Copy OSD settings and Content Playback)
USB Type B1 (Firmware Update, Copy OSD settings)
Control I/ORS-232CD-sub 9pin x 1
Remote Control InputStereo mini jack x 1
NetworkWired LANRJ45 x 1 (100Mbps)
WirelessOptional
Supported Speed For Each ModeIEEE 802.11b: 11Mbps*3 / IEEE 802.11g: 54Mbps*3 / IEEE 802.11n: 130Mbps*3
Quick: Open, WPA2-PSK / Advanced: Open, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Wireless SecurityWPA-PSK / WPA2-PSK(TKIP/AES)
WPA2-PSK(AES)
Operating Temperature0 - 45 °C <32 - 113 °F> (Below 1,500m / 4,921ft)
0 - 40 °C <32 - 104 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)]
0 - 35 °C <32 - 95 ° F> [Above 3,048m / 10,000ft - 5,000m / 16,404ft (with high altitude mode)]
Operating Altitude0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)
Direct Power On / OffYes
Start-Up PeriodLess than 7 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeHigh Efficiency Filter
Maintenance Cycle20,000 hours
Power Supply Voltage100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Laser Diode (Normal / Extended)416W / 299W
Standby (Network On / Off)2.0W / 0.50W
Dimension Excluding Feet (D X W X H)436 x 545 x 164 mm
Weight (Including Standard Lens)Approx. 16.9kg
Weight (Excluding Standard Lens)Approx. 15.6kg
Fan Noise (Normal / Eco)36dB / 30dB
