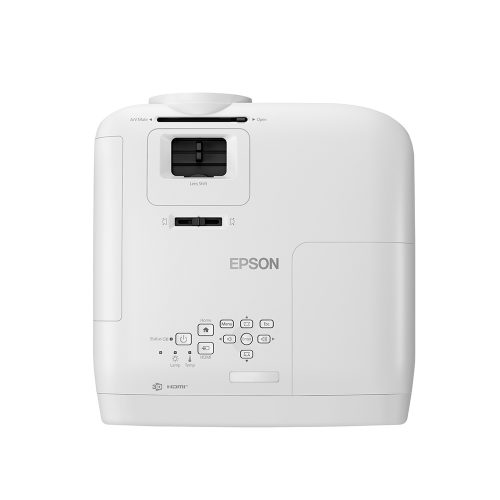

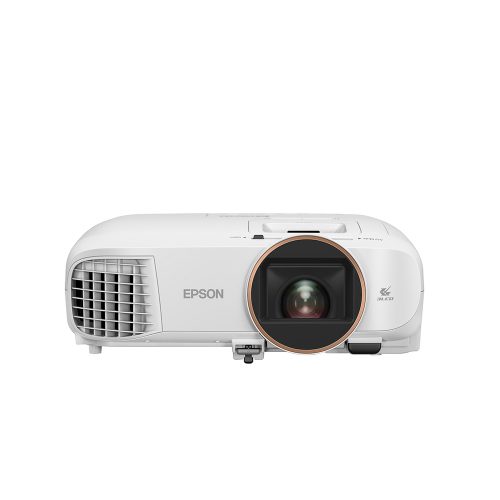

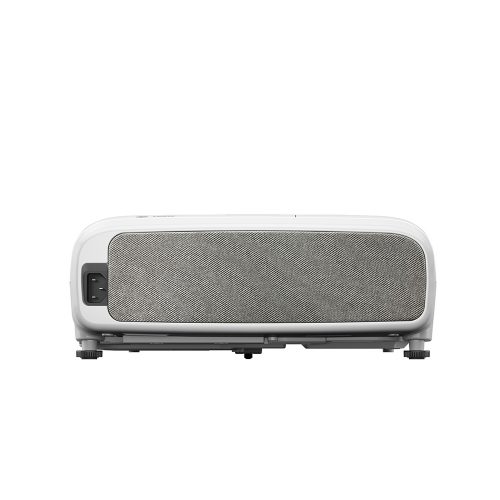

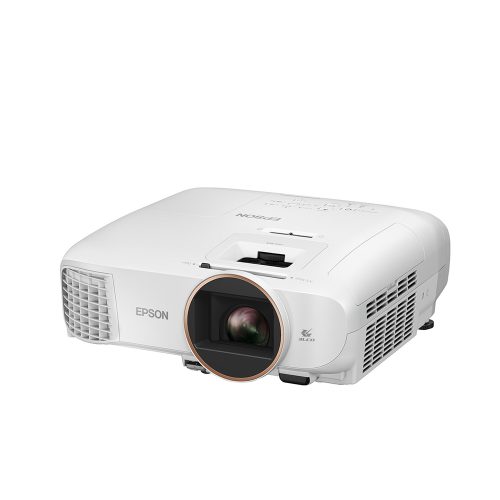

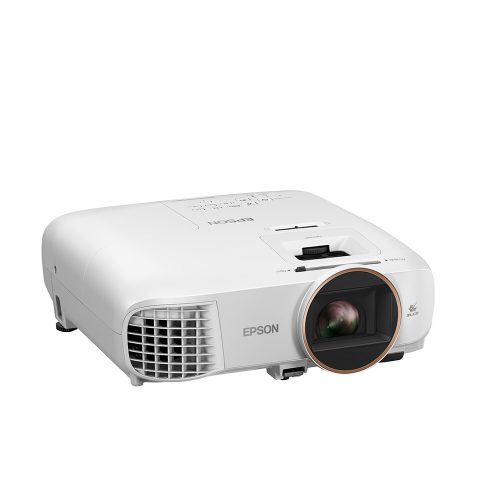

Epson EH-TW5820 Home Theatre Projector

Bring Home the Big Screen

Why compromise for anything other than true 3LCD projection? Built from the ground up to deliver an exceptionally immersive viewing experience, the Epson Home Theatre EH-TW5820 Full HD 3LCD projector displays vivid, true-to-life content with advanced 3-chip, 3LCD technology and an amazing contrast ratio of up to 70,000:1. The perfect choice for streaming TV shows, sporting events, movies and more. This dynamic projector features Image Enhancement and Frame Interpolation for smooth, crisp images. Plus, with built-in Android TV and wireless connectivity, you get seamless access to popular streaming services such as YouTube, right out of the box.

  • Stunning Full HD 1080p picture
  • Smooth, clear images
  • Built-in Android TV
  • Vertical Lens Shift
  • 2,700 lumens of color and white brightness

Description

Powered by Epson 3LCD technology
All Epson projectors come built-in with 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour continuously, unlike single-chip technology that delivers colour sequentially. The result is full-time colour for vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.





Installation Flexibility
The 1.6x zoom along with horizontal keystone correction function and lens shift, provide you with a wide-range of placement options even in a limited space.


Get More Done with Android TV
Explore a plethora of entertainment possibilities with the Android TV and Chromecast built-ins. With the intuitive integrated UI and Voice Control function**, you can now do more with Google Assistant*. Simply connect to the Wi-Fi and your favourite content is just a voice command away.

Google Assistant is not available in certain languages and countries. Availability of services varies by country and language.
** Voice control is applicable to Android TV only.


Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.61” wide panel (C2 Fine, 10Bit)
Native Resolution1080p
Projection Lens TypeOptical Zoom (Manual) / Focus (Manual)
F-Number 1.51 – 1.99
Focal Length 18.2 – 29.2 mm
Zoom Ratio 1 – 1.6
Throw Ratio 1.33 – 2.16 (Wide – Tele)
LightsourceType Lamp: 200W UHE
LifeNormal: 4,500 / Eco: 7,500 hours
Zoom: Wide30” to 300” [0.87 to 8.9 m]
Zoom: Tele30” to 300” [1.42 to 14.5 m]
Standard Size80” screen 2.35 to 3.82 m
Colour Light Output2,700 lm
White Light Output (Normal / Eco) 2,700 lm / 1,780 lm
Contrast Ratio70,000:1
Sound Output10W Monaural (with enclosure)
Vertical / Horizontal Keystone±30° / ±30° (Slide Bar)
Auto Keystone CorrectionYes (Vertical ±30°, Zoom: Tele)
Horizontal Slide Keystone CorrectionYes
Quick CornerYes
Lens ShiftVertical: +45% to +60%

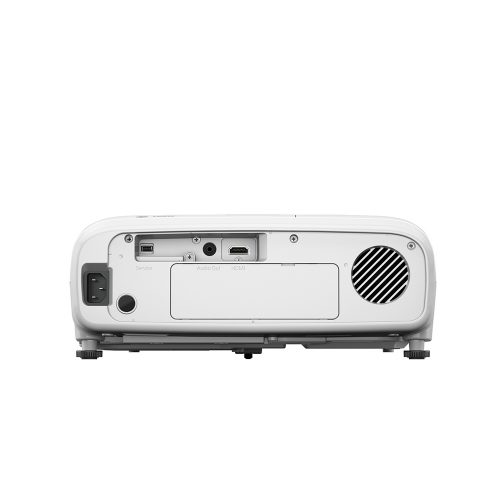

Digital InputHDMI 1
Audio OutputStereo Mini Jack x 1
USB InterfaceUSB Type B1
Wireless LAN Wi-Fi 5
Supported Speed For Each Mode IEEE 802.11a (5GHz) / IEEE 802.11b (2.4GHz) / IEEE 802.11g (2.4GHz) / IEEE 802.11n (2.4GHz and 5GHz)
/ IEEE 802.11ac (5GHz)*3
BluetoothVersion 5.0
Frequency Used2.4GHz
Supported CodecWirelessSBC
Supported OSAndroid OS
Supported VOD PlatformAndroid TV
Video Output ResolutionUp to 3,840 x 2,160 60fps 4:4:4
Version Version 3.0
Communication Distance Approx. 10m
Frequency Used2.4GHz
Supported CodecSBC, Qualcomm aptX Audio
Supported Operating SystemAndroid 9.0. Nunai OS
Video Processing Dolby VisionOptional, Dynamic HDR, HDR10, HLG and Technicolor HDR processing
AudioMP3, AAC, WMA, RM, FLAC, Ogg, Dolby DigitalOptional, Dolby Digital PlusOptional,
DTSOptional and programmable with 7.1/5.1 down-mixing
Frame Interpolation Yes
Detail EnhancementYes
Aspect ModeYes (Auto / Normal / Full / Zoom)
3D DisplayYes
3D FormatYes
3D DepthYes
Operating Temperature5 - 35 °C <41 - 95 °F> ( 0m / 0ft - 2,286m / 7,500ft )
5 - 30 °C <41 - 86 °F> (Over 2,286m / 7,500ft )
(20% - 80% Humidity, No Condensation)
Operating Altitude0 m to 3,048 m <0 ft to 10,000 ft> (over 1,500 m / 4,921 ft : with High Altitude mode)
Direct Power On / OffYes / N/A
Start-Up PeriodUnder 15 seconds
Warm-up period: 30 seconds
Cool Down PeriodUnder 5 seconds
Power Supply Voltage100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Lamp (Normal / Eco)297W / 227W
Energy Saving0.3W
Dimension Excluding Feet (D X W X H)308 x 309 x 107 mm
Weight Approx. 3.8kg
Fan Noise (Normal / Eco) 36dB / 28dB
