PROJECT A WORLD OF POSSIBILITIES IN ANY ENVIRONMENT.

Epson high brightness EB-G7200W projector present a new perspective on clarity, durability, and versatility. With the advanced C2Fine™ technology, projections are brought to life with vibrant colours in extreme resolution and vividness. Overcome the limitations of space constraints and project large and uncompromised images through the projector’s astoundingly short throw ratio of 0.35*.

* With optional ELPLX01 zero offset ultra-short throw lens.



  • High Brightness
  • Powered Lens
  • Portrait Projection
  • Flexible Installation
  • Edge Blending
  • Point Correction
Categories: , , ,

Description

Product Brochure

Epson

Colour Adjustment

With the colour adjustment function, you can easily adjust the hue, saturation and brightness for each component of RGBCMY to match your preferences.

Epson

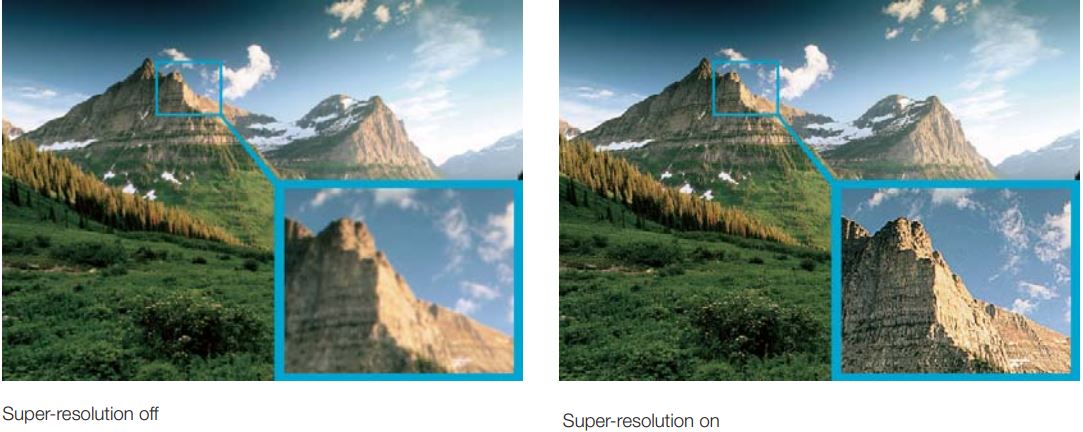

Super-resolution Technology

Epson’s super-resolution technology delivers razor-sharp images even when projecting low-resolution content onto large screens. And with image data processed frame by frame, even rapid motion remains crisp.

Epson

Split Screen

Display images from two different sources side by side on the same screen for a more effective presentation. In video conferences, for example, images of presentation materials and remote participants can be shown simultaneously. In addtion, split screen display between two digital interfaces is now possible with the EB-G7000 series.

Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize0.76” panel with MLA (D10, C^{2} Fine)
Native ResolutionWXGA (1280 x 800)
Projection LensTypePower Zoom / Power Focus / Power Shift
F-Number1.7 - 2.3
F-Number24.0 - 38.2 mm
Zoom Ratio1 - 1.6
Throw Ratio1.44 - 2.33 (Wide to Tele)
Lens ExchangeYes
Lens ShiftModePowered
Vertical (Up / Down)±67%
Horizontal (Left / Right)±30%
LampType400 W UHE
Life (Normal / Eco / Portrait)^{*1}3,000 / 4,000 / 2,000 hours
Zoom: Wide50” - 300” [1.53 - 9.43 m]
Zoom: Tele50” - 300” [2.48 - 15.10 m]
White Light Output (Normal / Eco)7,500lm / 6,000lm
Colour Light Output7,500lm
Contrast Ratio50,000:1
Vertical / Horizontal Keystone±45° / ±30° ( Zoom: Tele with Standard Zoom Lens)
Quick CornerYes
Curve SurfaceYes
Point CorrectionYes
Corner WallYes

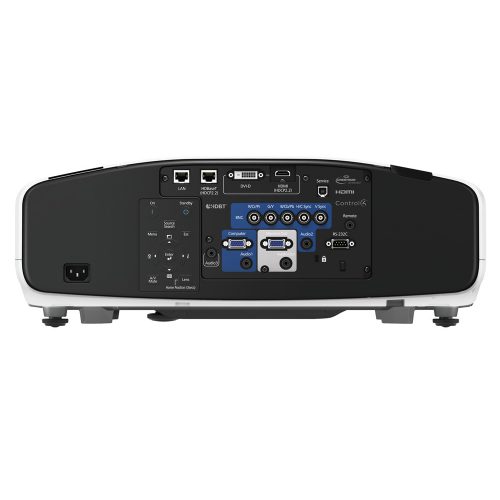

Analog InputD-Sub 15Pin1 (Blue)
5BNC1
Component5BNC, D-sub 15pin x 1 (Blue) (common with Analog RGB connector)
Digital InputDVI-D1
HDMI1 (with HDCP 2.2)
HDBaseT (RX)RJ45 x 1 (with HDCP 2.2)
Output TerminalD-Sub 15Pin1
Audio InputStereo Mini Jack3
Audio OutputStereo Mini Jack1
OthersUSB Type A1 (Wireless LAN, Firmware Update, Copy OSD settings)
USB Type B1 (Firmware Update, Copy OSD settings)
Control I/ORS-232CD-sub 9pin x 1
Remote Control InputStereo mini jack x 1
NetworkWired LANRJ45 x 1 (100Mbps)
WirelessOptional
Supported Speed For Each ModeIEEE 802.11b: 11Mbps^{*3}
IEEE 802.11g: 54Mbps^{*3}
IEEE 802.11n: 130Mbps^{*3}
Wireless SecurityWPA-PSK / WPA2-PSK(TKIP/AES)
WPA2-PSK(AES)
Operating Temperature0 - 45 °C <32 - 113 °F> (Below 1,500m / 4,921ft)
0 - 40 °C <32 - 104 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)]
0 - 35 °C <32 - 95 ° F> [Above 3,048m / 10,000ft - 5,000m / 16,404ft (with high altitude mode)]
Operating Altitude0 - 5,000m (0 - 16,404 ft) (over 1,500m / 4,921ft with high altitude mode)
Direct Power On / OffYes
Start-Up PeriodAbout 15 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeHigh Effi ciency Filter
Maintenance Cycle15,000 hours^{*4}
Power Supply Voltage100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Lamp On (Normal / Eco)572W / 477W
Standby (Network On / Off)2.3W / 0.3W
Dimension Excluding Feet (D X W X H)425 x 525 x 164 mm
Weight12.9kg
Fan Noise (Normal / Eco)39dB / 31dB
