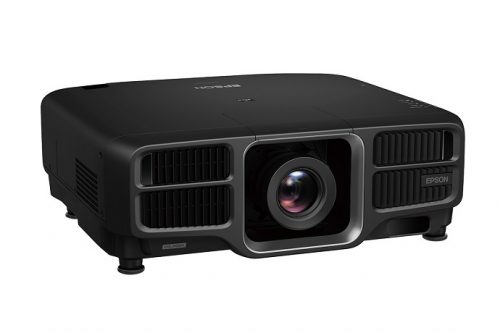

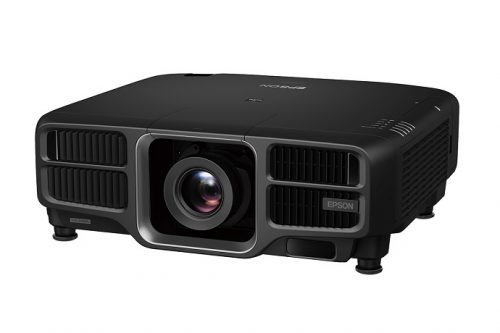

Epson EB-L1495UNL Laser WUXGA 3LCD Projector without Lens

Epson EB-L1495UNL Laser WUXGA 3LCD Projector without Lens
Epson EB-L1495UNL Laser WUXGA 3LCD Projector without Lens

Epson EB-L1495UNL Laser WUXGA 3LCD Projector without Lens

Premium large-venue projector with 4K Enhancement Technology

Experience the vibrancy of crystal-clear projection with the Epson EB-L1495UNL, this sleek, black projector features a full range of inputs, edge blending and 10 optional powered lenses, making it an ideal solution for conference rooms, auditoriums and live events.

  • White and Colour Brightness at 9,000lm
  • WUXGA (1920 x 1200)
  • Edge-blending to create large panoramic images
  • Curve and corner wall projection
  • HDBaseT
Categories: , ,

Description

Product Brochure

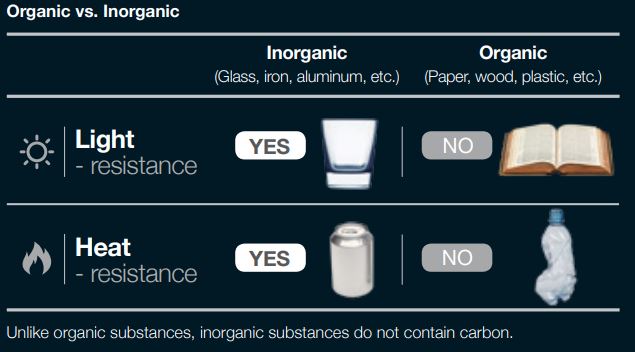

Inorganic LCD panels and phosphor wheel for outstanding reliability

Made of inorganic material, Epson’s newly developed phosphor wheel offers superior light and heat resistance to deliver excellent reliability. By combining this with our inorganic LCD panels, we create laser projectors that project bright, vibrant images for extremely long periods.

Epson

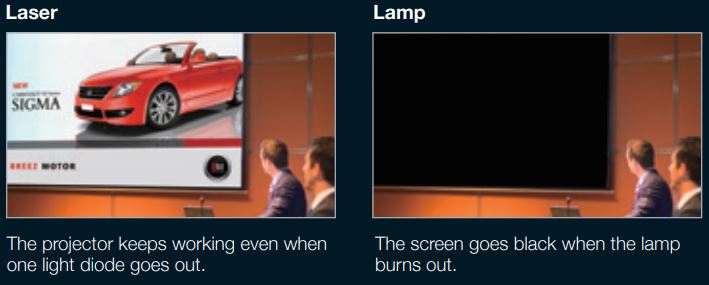

Worry-free projection

With multiple laser diodes to rely on, the screen won’t go black even if one diode goes out. This eliminates the worry of the projector light burning out during mission-critical presentations.

Epson

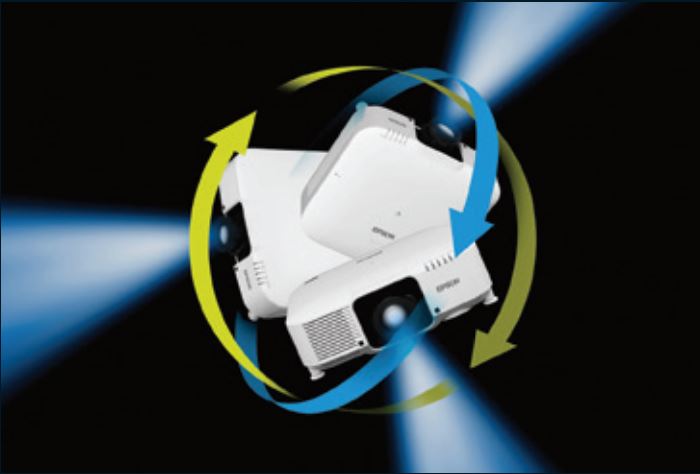

Adaptive Projection

EB-L1000 series can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness. This makes it ideal for a wide range of applications, such as projecting onto ceilings and floors

Epson

Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize1.03” (D10)
Native ResolutionWUXGA (1920 x 1200)
Projection LensTypePower Zoom / Power Focus / Power Shift
F-Number1.8 - 2.3
F-Number36.0 - 57.4 mm
Zoom Ratio1 - 1.6
Throw Ratio1.57 - 2.56 (Wide to Tele
Lens ExchangeYes
Lens ShiftModePowered
Vertical (Up / Down)±60%
Horizontal (Left / Right)±18%
LightsourceTypeLaser Diode
Life (Normal / Long)20,000 / 30,000 hours
Zoom: Wide60” - 1,000” [1.99 - 34.43 m]
Zoom: Tele60” - 1,000” [3.26 - 55.63 m
White Light Output (Normal / Eco)9,000lm / 6,300lm
Colour Light Output9,000lm
Contrast RatioOver 2,500,000:1
Sound OutputNA
Vertical / Horizontal Keystone±45° / ±30° (Zoom: Tele) (with Standard Lens)
Quick CornerYes
Curve SurfaceYes
Point CorrectionYes
Corner WallYes

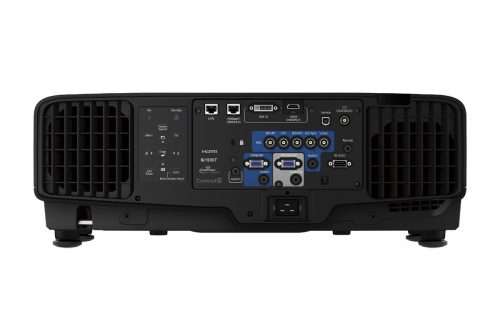

Analog InputD-Sub 15Pin1 (Blue)
5BNC1
Digital InputDVI-D1
HDMI1 (with HDCP 2.2)
HDBaseT (RX)RJ45 x 1 (with HDCP2.2
and Art-Net Support)
BNC (SDI)1x
Output TerminalD-Sub 15Pin1
Audio InputStereo Mini Jack3
Audio OutputStereo Mini Jack1
OthersUSB Type A1 (Wireless LAN, Firmware Update, Copy OSD settings and Content Playback)
USB Type B1 (Firmware Update, Copy OSD settings)
Control I/ORS-232CD-sub 9pin x 1
Remote Control InputStereo mini jack x 1
NetworkWired LANRJ45 x 1 (100Mbps with
Art-Net Support)
WirelessOptional
Supported Speed For Each ModeIEEE 802.11b: 11Mbps*3 / IEEE 802.11g: 54Mbps*3 / IEEE 802.11n: 130Mbps*3
Quick: Open, WPA2-PSK / Advanced: Open, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Wireless SecurityWPA-PSK / WPA2-PSK(TKIP/AES)
WPA2-PSK(AES)
Operating Temperature0 - 50 °C <32 - 122 °F>(Below 1,500m / 4,921ft)
0 - 45 °C <32 - 113 °F>( Above 1,500m / 4,921ft - 3,048m / 10,000ft)
Operating Altitude0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)
Direct Power On / OffYes
Start-Up PeriodLess than 7 seconds, Warm-up Period: 30 seconds
Cool Down PeriodInstant Off
Air FilterTypeHigh Efficiency Filter
Maintenance Cycle20,000 hours
Power Supply Voltage100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)Laser Diode (Normal / Extended)626W / 512W
Standby (Network On / Off)2W / 0.3W
Dimension Excluding Feet (D X W X H)492 x 586 x 185 mm
Weight (Including Standard Lens)Approx. 23.7kg
Weight (Excluding Standard Lens)Approx. 21.9kg
Fan Noise (Normal / Eco)37dB / 30dB
