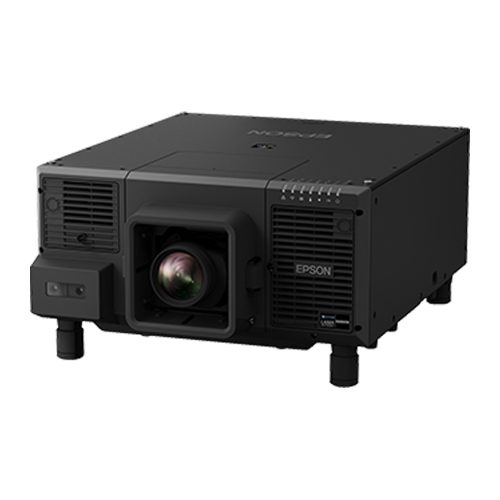

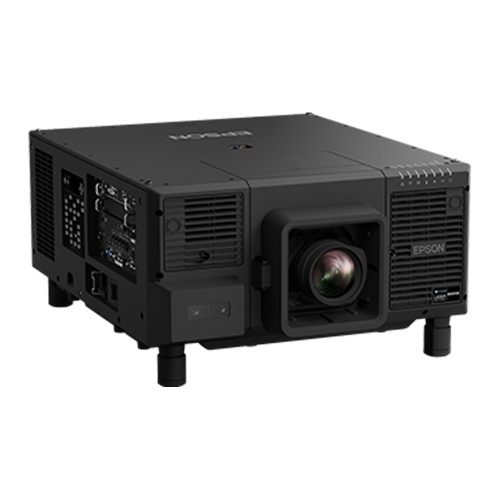

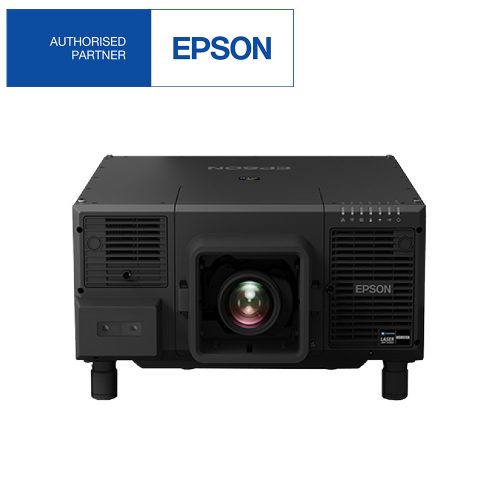

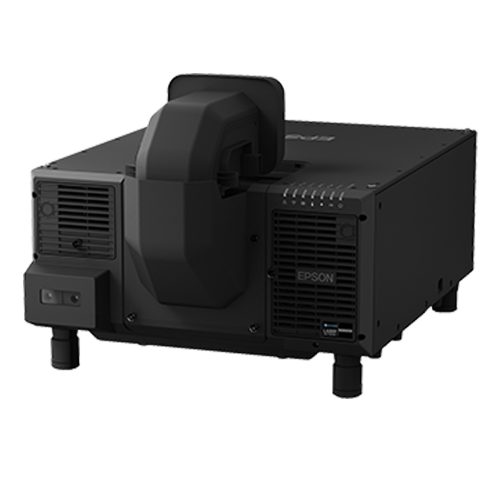

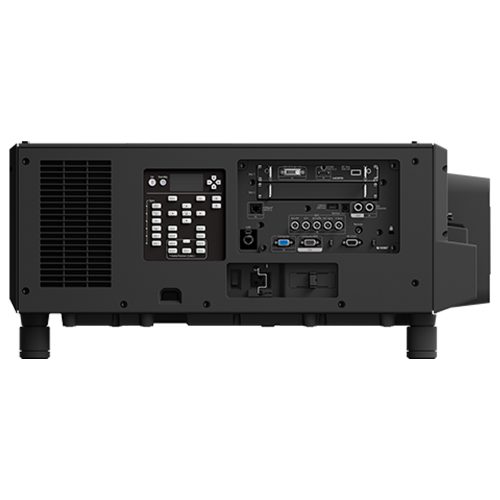

Epson EB-L20000UNL Laser Projector WUXGA

Epson EB-L20000UNL Laser Projector WUXGA

NCREDIBLY BRIGHT, AMAZINGLY RELIABLE.

Make a powerful impact on a bigger stage with the EB-L20000UNL high brightness laser projectors.

With high reliability and a robust design protected by a triple layered dust-proof structure, enjoy ease of mobility and installation flexibility. It is immensely flexible with 360° rotation, adjustable tilt and large variety of lenses to suit any venue or application.

  • White and Colour Brightness at 20,000 lumens
  • WUXGA (1920 x 1200) Resolution
  • HDBaseT Connectivity
Categories: , ,

Description

Product Brochure

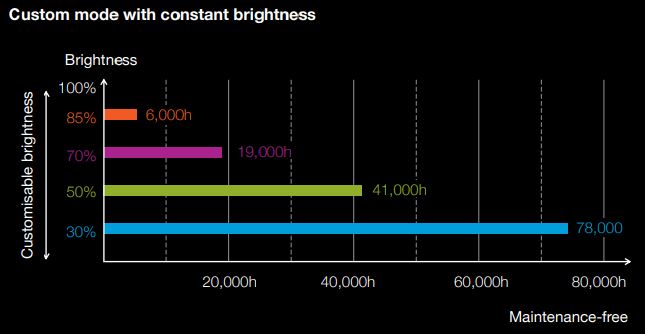

Constant Brightness

Maintaining a specific brightness over a prolonged period of time, depending on the application, offers increased flexibility. Venues such as an art museum can take advantage of this feature in situations where constant brightness is a must.

Epson

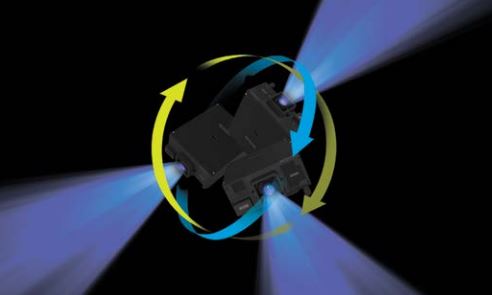

Multi-Directional Projection

EB-L20000UNL can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness

Epson

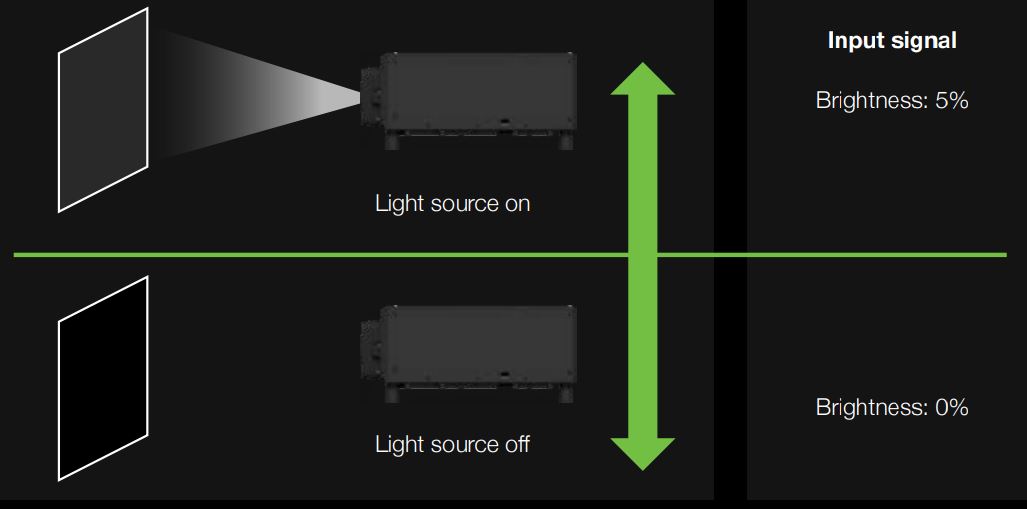

Light-Out Control

You can control the laser light source, turning it on or off based on the black level value of the video signal.

Epson

SKU NumberV11H833852 / V11H833855
Projection TechnologyRGB liquid crystal shutter projection system (3LCD)
LCDSize1.03” (D10)
Native ResolutionWUXGA (1920x1200)
Projection Lens (Using Optional ELPLM15)TypePower Zoom / Power Focus / Power Shift
F-Number1.8 - 2.3
Focal Length36.0 - 57.4 mm
Zoom Ratio1 - 1.61
Throw Ratio1.52 - 2.47
Lens ExchangeYes
Lens ShiftModePowered
Vertical (Up / Down)±60%
Horizontal (Left / Right)±18%
LightsourceTypeLaser Diode
Life (Normal / Extended)20,000 / 30,000 hours
Zoom: Wide60” - 1000” [1.99 - 34.43 m
Zoom: Tele60” - 1000” [3.26 - 55.63 m]
White Light Output (Normal / Eco)20,000 / 14,000 lm
Colour Light Output20,000 lm
Contrast RatioOver 2,500,000:1
Vertical / Horizontal Keystone±44° / ±30°
Quick CornerYes
Curve SurfaceYes
Point CorrectionYes
Corner WallYes
Geometry Correction MemoryYes
Analog InputMini D-Sub 15Pin1
BNC1
Digital InputHDBaseT1 (RJ45)
SDI1 (SD-SDI, HD-SDI, 3G-SDI)
Expansion Interface SlotQuantity2
Factory SetSlot 1: ELPIF01 (HDMI & DVI-D)
Slot 2: Blank
Expansion Interface Board
ELPIF01HDMI1 (HDMI 19p)
DVI-D1
DC Out1 (500mA)
ELPIF02SDI InNot Supported
SDI OutNot Supported
ELPIF03DisplayPort In2
Analog OutputMini D-Sub 15Pin1
Digital OutputBNC1
OthersUSB Type A1 (for Firmware Update, Copy OSD Settings, DC Out 900mA)
USB Type B1 (Firmware Update, Copy OSD settings)
Control I/ORS-232C1
Remote Control Input1 (Stereo Mini)
NetworkWired LANRJ45 x1 (etherCON)
Wireless1
Supported Speed For Each ModeIEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps *2
IEEE 802.11n (2.4GHz): 130 Mbps*2
IEEE 802.11a (5GHz): 54 Mbps *2
IEEE 802.11n (5GHz): 270 Mbps *2
Wireless SecurityQuick Mode: OPEN, WPA2-PSK, Advanced Mode: OPEN, WPA/WPA2-PSK, WPA-Enterprise
Operating Temperature0 - 50 °C <32 - 122 °F> (low altitude)
0 - 45 °C <32° - 113 °F> (high altitude
Operating Altitude0 - 3,048 m (0 - 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 16 seconds, Warm-up period: 30 seconds
Cool Down PeriodInstant Off or 0 second
Air FilterMaintenance Cycle20,000 hours
Power Supply Voltage100 - 120 V AC, 200 - 240 V AC +/- 10 %, 50/60 Hz
Power Consumption (220 - 240V)Lamp On (Normal / Eco)1860W / 1123W
Standby (Network On / Off)2W / 0.5W
Dimension Excluding Feet (D X W X H)720 x 620 x 280 mm
Weight Approx. 109.3 lbs. / 49.6 kg
Fan Noise (Normal / Eco)45 / 38 dB
