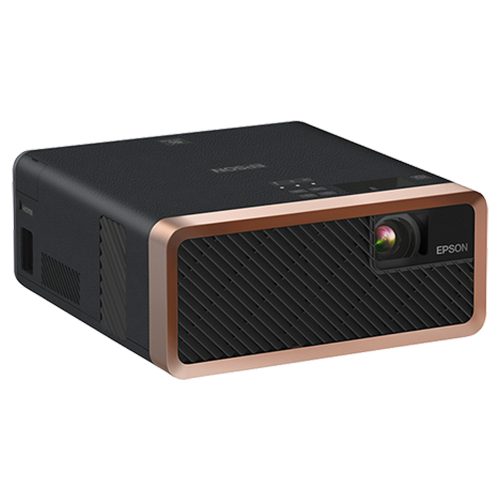

Epson EF-100B ATV Laser Projection TV EpiqVision Mini

A New Type of Streaming Experience – Only from Epson.

The Epson EpiqVision Mini EF-100B ATV Laser Projection TV represents a new type of 3-chip laser projection technology designed for today’s content streamers. Based on unique Epson MicroLaser Array Technology, this projector is not only elegantly compact, but capable of producing an incredibly bright and colorful image up to 150″ on virtually any wall or dedicated screen.

Powered by Google’s Android TV™, the moment you power-on the EF-100, you’re ready to use all your favorite streaming apps.

The world’s smallest 3LCD, true laser-based projector, the EF-100 represents a new type of streaming experience and a significant technical achievement in mini-laser digital projection.

Easy to use
Remarkable image quality
Elegant, Compact Design
Bluetooth connection that supports external speakers

Description

Features
Specifications

More than just a Projector

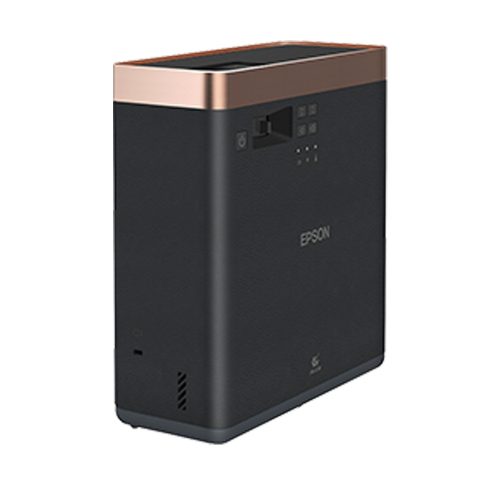

This unique design comes in contrasting white and silver accents or black and copper trimmings. Giving you the ultimate choice in choosing the design that best matches your style.

Android TV™ Ready
All you need is to plug in the power and your entertainment begins. Home entertainment is made more accessible and fuss-free with EpiqVision Mini EF-100B ATV Laser Projection TV, which comes ready with Android TV™ function.

Entertainment on the Go
With its slim and lightweight design, this compact projector can be carried easily from room-to-room. Don't try this with your regular TV!

Projection Technology		RGB liquid crystal shutter projection system (3LCD)
LCD	Size	0.59” (C2 Fine)
	Native Resolution	720p (WXGA)
Projection Lens	Type	No Optical Zoom / Focus (Manual)
	F-Number	1.58
	Focal Length	13.53 mm
	Zoom Ratio	1 – 1.35 (Digital Zoom)
	Throw Ratio	1.04 – 1.4 (Wide – Tele)
Lightsource	Type	Laser Diode
	Life	Normal: 12,000 / Extended: 20,000 hours
Zoom: Wide		30" to 150" [0.65 to 3.41 m]
Zoom: Tele		22" to 111" [0.65 to 3.41 m]
Standard Size		60” screen 1.34 to 1.81 m
Colour Light Output		2,000 lm
White Light Output (Normal / Eco)		2,000 lm / 1,000 lm
Contrast Ratio		Over 2,500,000:1
Internal Speakers		5W Monoaural (with enclosure
Keystone	Vertical	±45°
	Horizontal	±40°
Quick Corner		Yes
Analog Input	D-Sub 15Pin	N/A
	Composite	N/A

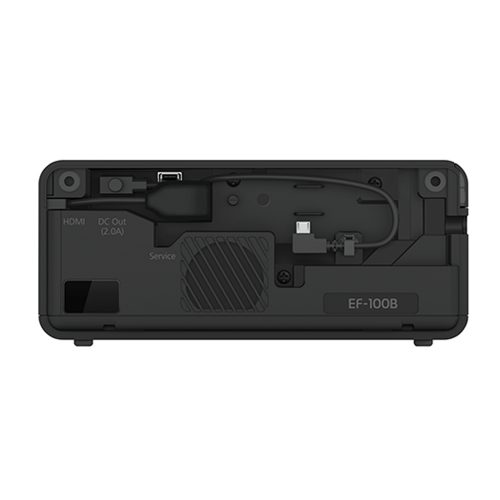

Digital Input	HDMI	1
Audio In		N/A
Audio Out		Stereo Mini Jack x 1
USB Interface	USB Type A	1 (for 2A Power Supply, Firmware Update and Copy OSD Setting)
	USB Type B	1 (for Firmware Update, Copy OSD Settings
Network	Wired LAN	NA
	Wireless	N/A
Supported Speed For Each Mode		N/A
Supported Connection Mode		N/A
Wireless LAN Security		Infrastructure: OPEN, WPA2/WPA3-PSK Access Point: OPEN, WPA2-PSK (AES)
Six Axis Colour Adjustment		N/A
Picture In Picture		N/A
Aspect Mode		Yes (Auto / 16:9 / Full / Zoom)
Screen Mirroring		N/A
Frame Interpolation		N/A
Image Preset Mode		N/A
MPEG Noise Reduction		Yes
Super Resolution		N/A
Detail Enhancement		N/A
Operating Temperature		5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft) 5 - 30 °C <41 - 86 °F> (over 2,286m / 7,500ft) [20%-80% Humidity, No Condensation]
Operating Altitude		0 m to 3,000 m <0 ft to 9,843 ft> (Over 1,500 m / 4,921 ft : with High Altitude mode
Direct Power On / Off		Yes / No
Start-Up Period		Under 6 seconds / Warm-up period: 30 seconds
Cool Down Period		Instant Off
Air Filter	Maintenance Cycle	5,000 H
Power Supply Voltage		100 - 240 V AC ±10%, 50/60 Hz
Power Consumption (220 - 240V)	Lamp (Normal / Medium / Eco)	172W / 115W
	Standby (Network / Energy Saving)	N/A / 0.4W
Dimension Excluding Feet (D X W X H)		227 x 210 x 88 mm
Weight (Including Standard Lens)		Approx. 2.7kg
Fan Noise (Normal / Quiet)		29dB / 26dB
