Epson EB-725Wi Interactive Laser Projector WXGA 3LCD

Epson EB-725Wi WXGA 3LCD Interactive Laser Projector Ultra-short throw
Epson EB-725Wi WXGA 3LCD Interactive Laser Projector Ultra-short throw

Epson EB-725Wi Interactive Laser Projector WXGA 3LCD

Enhance classroom engagement with this bright, easy-to-read WXGA interactive display.

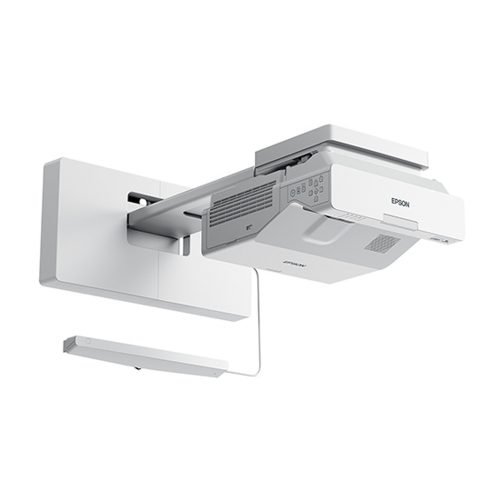

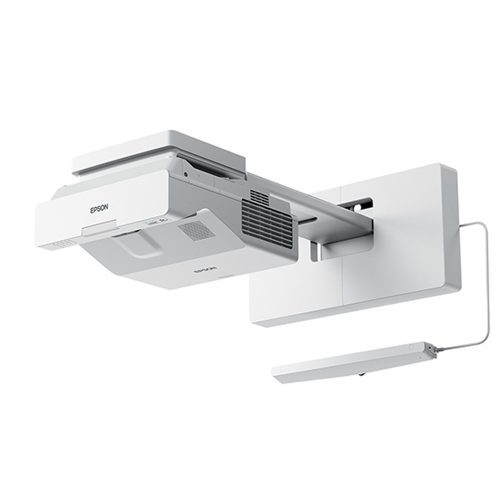

Bring bright, easy-to-read projection to your classroom with the EB-725Wi interactive laser display. Providing 4,000 lumens of color and white brightness and 3LCD technology, this state-of-the-art interactive WXGA display delivers true-to-life 16:10 images up to 100″. A convenient and seamless solution, the EB-725Wi works with new or existing touch modules for EB-595Wi/695Wi models, and features built-in wireless, automatic image alignment and pen calibration for time-saving installation. Plus, it provides a virtually maintenance-free, 20,000-hour laser light source engine with no lamps to replace ever. Designed to enhance classroom collaboration, the EB-725Wi instantly makes nearly any wall or whiteboard interactive.

  • 4,000 lumens of color/white brightness
  • WXGA display; project up to 100″ diagonal
  • 20,000-hour laser light source
  • Time-saving installation
  • Advanced whiteboard function
  • Finger touch and pen interactivity
  • Built-in Wireless
  • Screen Mirroring
Categories: , , ,

Description

Product Brochure

Revolutionary Laser Light Source

With laser light source, enjoy great cost savings with its extended maintenance cycle and without the need to replace the projector’s lamp.

Epson

Advanced Whiteboard Function

Using Epson EB-725Wi projector, saving whiteboard files is made convenient and hassle-free with the Advanced Whiteboard Function. Whiteboard images can be exported in a variety of formats including PNG, JPEG, PDF, and editable EWF2, directly into a USB storage, a PC via USB-B cable or via the network.

Epson

Bright Images
With bright images of up to 4,000lm, it will allow clear image even in ambient light conditions from fluorescent lamps or sunlight from windows.

Epson

SKU NumberV11H998052 /
Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.59” (C2Fine)
Native ResolutionWXGA (1280 x 800)
TypeNo Optical Zoom / Focus (Manual)
F-Number1.60
Focal Length3.7mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio0.28 – 0.37 (Wide to Tele)
LightsourceTypeLaser Diode
Life (Normal / Quiet / Extended) 20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)65” – 100” [38.5 – 60.1 cm] @ 16:10
64” – 100” [39 – 61.8 cm] @ 16:9
White Light Output (Normal / Extended)4000 lm / 2800 lm
Colour Light Output (Normal / Extended)4000 lm / 2800 lm
Contrast RatioOver 2,500,000:1
Sound Output16W Mono x 1
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes (Auto & Manual)

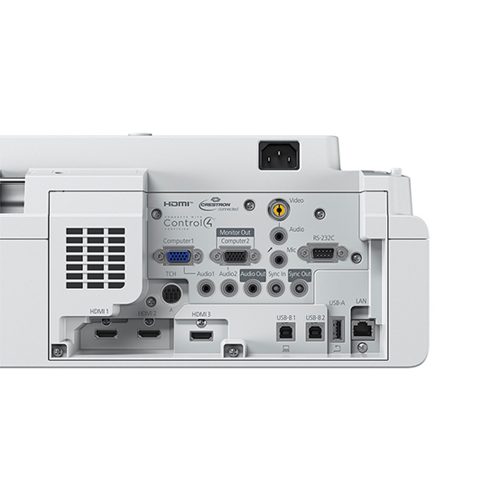

Analog InputD-Sub 15Pin2 (Blue, Black)
CompositeRCA x 1 (Yellow)
Digital InputHDMI3 (HDCP2.3)
Analog Output TerminalD-Sub 15Pin1 (Black) (in common with Computer 2)
Audio InputStereo Mini Jack3
Mic InputStereo Mini Jack1
Audio OutputStereo Mini Jack1
OthersUSB Type A2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings)
USB Type B2 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)
Mic I/OStereo Mini x 1
Control I/ORS-232CD-sub 9 pin x 1
Interactive SyncIn x 1, Out x 1
Touch Unit ControlMini DIN 8pin x 1
NetworkWired LANRJ45 x 1 (100 Mbps)
WirelessYes (ELPAP10 Option)
Wireless LAN - Built-inSupported Speed For Each ModeInfrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless LAN SecurityInfrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP ; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Miracast / Screen Mirroring Built-InSupported Speed For Each ModeInfrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless SecuritySupported Speed For Each ModeInfrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)
TechnologyInfrared
Input DevicesInteractive PenDigital Pen (Easy Interactive Pen A & B)
FingerUp to 6 Fingers (Optional)
Connection To ComputerUSB, Network
CalibrationPen: Auto / Manual (25 Points)
FunctionsHover, Right Click, Auto Adjust Pen Area
Pen Unit Dimension 161 x 24 mm (diameter) maximum
Pen Unit Weight30g (Excluding a battery
Touch Unit Maximum Dimension (D x W x H)65 x 422 x 40 mm
Touch Unit Weight600g
Operating TemperatureSingle Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No Condensation
Supported ModeMulti-projection Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 8 seconds, Warm-up Period: 30 seconds
Quick Start-UpLess than 5 seconds
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle12,000 hours
Power Supply Voltage100 - 240 V AC +/- 10 %, 50 / 60 Hz
Lamp On (Normal / Eco)255W / 197W
Standby (Network On / Off)2.0W / 0.5W
Dimension Excluding Feet (D X W X H)395 x 356 x 133 mm
Weight (with cable cover)Approx. 5.8kg
Fan Noise (Normal / Eco)36dB / 26dB
