Epson EB-735Fi Full HD Ultra-Short Throw Interactive Projector

Classroom experience in a different level

Enhancing learning experiences in classrooms with a giant, interactive, and immersive digital drawing board instead of using a traditional whiteboard will no longer be just a dream. Operating by either an optional six-point multi-touch or two interactive pens, the Epson EB-735Fi projector allows users to create drawings, and share information onto other devices instantly. The PC-less interactivity equips educators and students the direct control of information shown and shared on the crisp Full-HD laser display.This projector also features a virtually maintenance-free, 20,000-hour laser light source engine with no lamps to replace ever.

  • 3,600 lumens of color/white brightness
  • Full HD 1080p* display; project 16:9 and 16:6 images
  • 20,000-hour laser light source
  • Time-saving installation
  • Finger touch and pen interactivity
  • Built-in Wireless

Description

Amazing Image Quality
Enjoy a dynamic viewing experience with Full HD resolution on screen with laser light source. Deliver vibrant and sharp high-resolution image displays from PCs, tablets and smartphones and watch your photos, 3D CAD, Blu-ray and online videos come to life in Full HD. Data figures on spreadsheets and charts will also be displayed clearly for everyone to read accurately.

Advanced Whiteboard Function
Using Epson EB-735Fi projector, saving whiteboard files is made convenient and hassle-free with the Advanced Whiteboard Function. Whiteboard images can be exported in a variety of formats including PNG, JPEG, PDF, and editable EWF2, directly into a USB storage, a PC via USB-B cable or via the network.



Revolutionary Laser Light Source
With laser light source, enjoy great cost savings with its long maintenance cycle and without the need to replace the projector’s lamp.

SKU NumberV11H997052 /
Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.61” (C2Fine)
Native ResolutionFull HD (1080p)
TypeNo Optical Zoom / Focus (Manual)
F-Number1.60
Focal Length3.7mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio0.26 – 0.36 (Wide to Tele)
LightsourceTypeLaser Diode
Life (Normal / Extended)20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)65” – 100” [37.2 – 58.3 cm] @ 16:9
60” – 110” [36.9 – 69.2 cm] @ 16:6
White Light Output (Normal / Extended)3,600lm / 2,500lm
Colour Light Output (Normal / Extended)3,600lm / 2,500lm
Contrast RatioOver 2,500,000:1
Sound Output16W Mono x 1
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes (Auto & Manual)

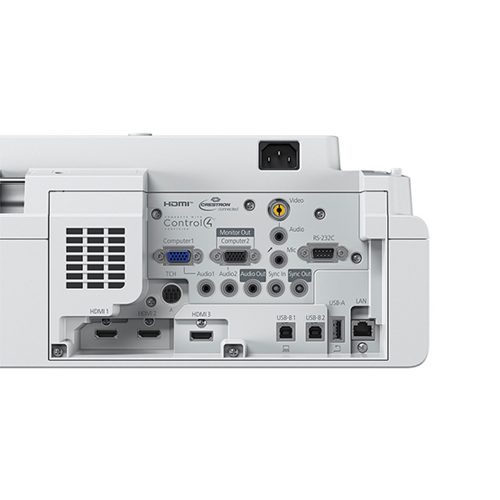

Analog InputD-Sub 15Pin2 (Blue, Black)
CompositeRCA x 1 (Yellow)
Digital InputHDMI3 (HDCP2.3)
Analog Output TerminalD-Sub 15Pin1 (Black) (in common with Computer 2)
Audio InputStereo Mini Jack3
Mic InputStereo Mini Jack1
Audio OutputStereo Mini Jack1
OthersUSB Type A2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings)
USB Type B2 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)
Mic I/OStereo Mini x 1
Control I/ORS-232CD-sub 9 pin x 1
Interactive SyncIn x 1, Out x 1
Touch Unit ControlMini DIN 8pin x 1
NetworkWired LANRJ45 x 1 (100 Mbps)
WirelessYes (ELPAP10 Option)
Wireless LAN - Built-inSupported Speed For Each ModeInfrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless LAN SecurityInfrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP ; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Miracast / Screen Mirroring Built-InSupported Speed For Each ModeInfrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless SecuritySupported Speed For Each ModeInfrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)
TechnologyInfrared
Input DevicesInteractive PenDigital Pen (Easy Interactive Pen A & B)
FingerUp to 6 Fingers (Optional)
Connection To ComputerUSB, Network
CalibrationPen: Auto / Manual (25 Points)
FunctionsHover, Right Click, Auto Adjust Pen Area
Pen Unit Dimension 161 x 24 mm (diameter) maximum
Pen Unit Weight30g (Excluding a battery
Touch Unit Maximum Dimension (D x W x H)65 x 422 x 40 mm
Touch Unit Weight600g
Operating TemperatureSingle Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No Condensation
Supported ModeMulti-projection Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 8 seconds, Warm-up Period: 30 seconds
Quick Start-UpLess than 5 seconds
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle12,000 hours
Power Supply Voltage100 - 240 V AC +/- 10 %, 50 / 60 Hz
Lamp On (Normal / Eco)255W / 197W
Standby (Network On / Off)2.0W / 0.5W
Dimension Excluding Feet (D X W X H)395 x 356 x 133 mm
Weight (with cable cover)Approx. 5.8kg
Fan Noise (Normal / Eco)36dB / 26dB
