Engage students with easy-to-read images up to 120″ with this WXGA display.

Enhance engagement in today’s socially distanced classrooms with eye-catching, easy-to-read images using the EB-725W WXGA 3LCD ultra short-throw laser display. Designed to maximize classroom collaboration and productivity, this dynamic 4,000-lumen*3 laser display projects captivating 16:10 resolution images up to 120″ diagonal with virtually no shadowing from nearly anywhere in the room. A flexible, easy-to-use solution, the EB-725W makes classroom projection more convenient than ever with built-in wireless, Instant On activation and a virtually maintenance-free, 20,000-hour laser light source with no lamps to replace ever*.

  • 4,000 lumens of color and white brightness*
  • WXGA 16:10; project up to up to 120″
  • 20,000-hour laser light source*
  • Fast setup time with laser light source
  • Built-in wireless
  • Screen Mirroring
Categories: , , ,

Description

Product Brochure

Revolutionary Laser Light Source

With laser light source, enjoy great cost savings with its extended maintenance cycle and without the need to replace the projector’s lamp.

Epson

Bright Images

With bright images of up to 4,000lm, it will allow clear image even in ambient light conditions from fluorescent lamps or sunlight from windows.

Epson

Ultra-Short Throw Advantages

Teachers and students will no longer be blinded by projection while presenting, and no shadows will be cast on the screen. This allows less disruption to lesson and more presentation space.

SKU NumberV11H999052 /
Projection TechnologyRGB liquid crystal shutter projection system
LCDSize0.59” (C2Fine)
Native ResolutionWXGA (1280 x 800)
TypeNo Optical Zoom / Focus (Manual)
F-Number1.60
Focal Length3.7mm
Zoom Ratio1.0 – 1.35 (Digital Zoom)
Throw Ratio0.28 – 0.37 (Wide to Tele)
LightsourceTypeLaser Diode
Life (Normal / Quiet / Extended) 20,000 / 20,000 / 30,000 hrs
Screen Size (Projected Distance)65” – 120” [38.5 – 72.5 cm] @ 16:10
64” – 116” [39 – 72 cm] @ 16:9
White Light Output (Normal / Extended)4000 lm / 2800 lm
Colour Light Output (Normal / Extended)4000 lm / 2800 lm
Contrast RatioOver 2,500,000:1
Sound Output16W Mono x 1
Vertical / Horizontal Keystone±3° / ±3°
Quick CornerYes (Manual)

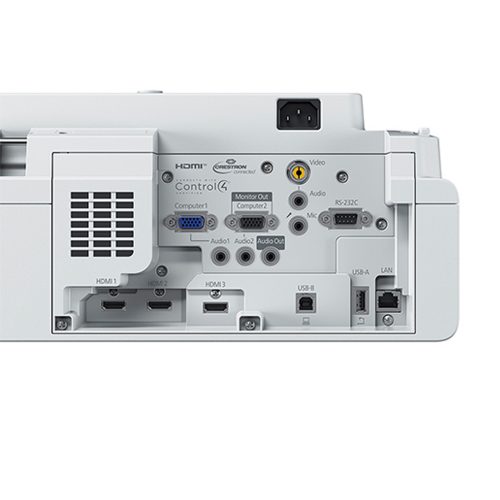

Analog InputD-Sub 15Pin2 (Blue, Black)
CompositeRCA x 1 (Yellow)
Digital InputHDMI3 (HDCP2.3)
Analog Output TerminalD-Sub 15Pin1 (Black) (in common with Computer 2)
Audio InputStereo Mini Jack3
Mic InputStereo Mini Jack1
Audio OutputStereo Mini Jack1
OthersUSB Type A2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings)
USB Type B1 (for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings)
Mic I/OStereo Mini x 1
Control I/ORS-232CD-sub 9 pin x 1
Interactive SyncN/A
Touch Unit Controll N/A
NetworkWired LANRJ45 x 1 (100 Mbps)
WirelessYes (ELPAP10 Option)
Wireless LAN - Built-inSupported Speed For Each ModeInfrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless LAN SecurityInfrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP ; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)
Miracast / Screen Mirroring Built-InSupported Speed For Each ModeInfrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2,
IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2
Supported ModeInfrastructure, Access Point (Wi-Fi Direct)
Wireless SecuritySupported Speed For Each ModeInfrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK(AES)
Operating TemperatureSingle Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No Condensation
Supported ModeMulti-projection Use0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation
Operating AltitudeOver 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)
Direct Power On / OffYes
Start-Up PeriodLess than 8 seconds, Warm-up Period: 30 seconds
Quick Start-UpLess than 5 seconds
Cool Down PeriodInstant Off
Air FilterTypeElectrostatic Filter
Maintenance Cycle12,000 hours
Power Supply Voltage100 - 240 V AC +/- 10 %, 50 / 60 Hz
Lamp On (Normal / Eco)255W / 197W
Standby (Network On / Off)2.0W / 0.5W
Dimension Excluding Feet (D X W X H)395 x 356 x 133 mm
Weight (with cable cover)Approx. 5.7kg
Fan Noise (Normal / Eco)36dB / 26dB
