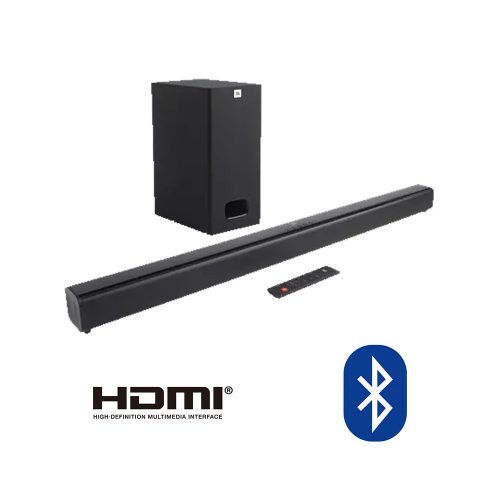

JBL Cinema SB130

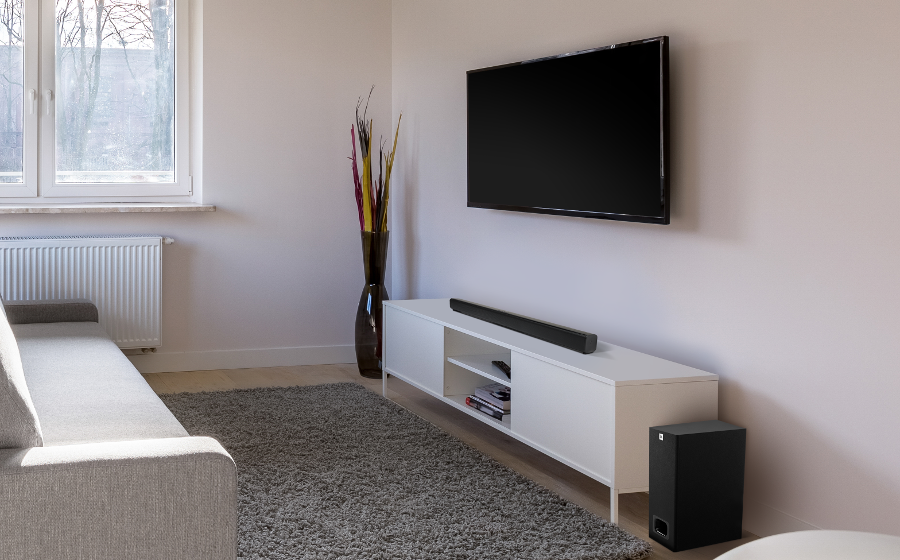

The JBL Cinema SB130 features 110W system power, Dolby Digital, two full range drivers and comes with a wired subwoofer. Enjoy powerful sound with extra deep bass for movies and music entertainment. It’s Bluetooth-enabled so you can play your favorite music wirelessly from any smartphone, tablet or laptop and features a one cable connection with HDMI ARC that ensures a hassle-free user experience.

Description

JBL

110W power output

Incredible, powerful sound for an immersive cinematic experience.

Wireless music streaming via Bluetooth

Wireless music streaming via Bluetooth

Stream and enjoy all your music wirelessly from any mobile device.

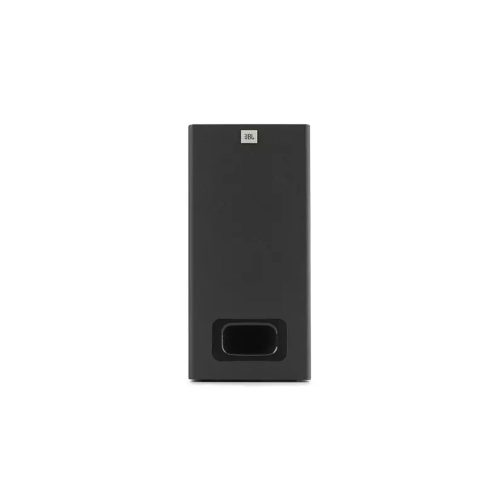

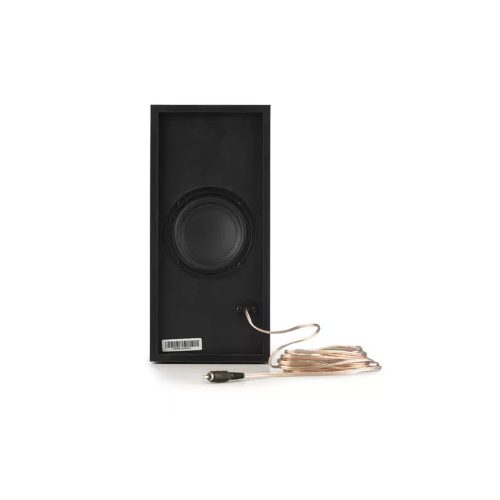

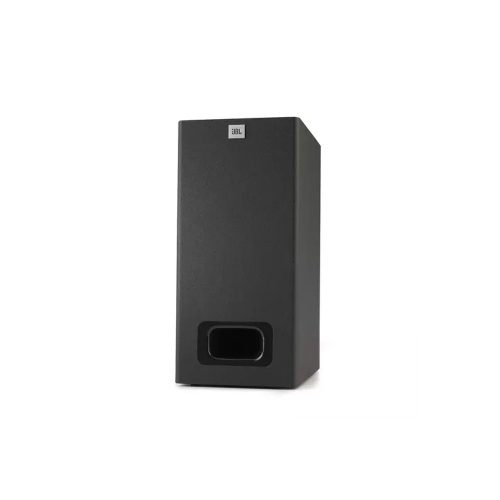

Wired subwoofer for extra deep bass

Wired subwoofer for extra deep bass

Enjoy deep and thrilling bass.

Dolby Digital embedded

Dolby Digital embedded

Dolby Digital embedded for the ultimate movie experience.

General Specifications
Power supply 100 - 240VAC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%)110W
Soundbar power output (Max. @THD 1%)2 x 27W
Subwoofer power output (Max. @THD 1%)56W
Soundbar transducer 2 x 2" full range driver
Subwoofer transducer 4", wired sub
Operating temperature 0°C - 45°C
Audio Specifications
Max SPL 82dB
Frequency response 40Hz - 20kHz
Audio inputs 1 Optical, Bluetooth(USB is for Service only.)
Dimensions (W x H x D)
Soundbar dimensions 900 x 67 x 63(mm) / 35.4" x 2.6" x 2.5"
Subwoofer dimensions 150 x 320 x 220(mm) / 6" x 12.6" x 8.7"
Soundbar weight 1.5kg
Subwoofer weight 2.8kg
Packaging dimensions 975 x 170 x 355mm / 38.4" x 6.7" x 14"
Packaging weight (Gross weight)5.8kg
Control and Connection Specifications
Bluetooth version 4.2
Bluetooth profile A2DP V1.3/AVRCP V1.5
Bluetooth frequency range 2402MHz-2480MHz
Modulation type GFSK, π/4 DQPSK
USB port Type A
USB rating 5VDC/0.5A
Supporting file format mp3, wav
MP3 Codec MPEG 1 Layer 2/3
MPEG 2 Layer 3 Yes
MPEG 2.5 Layer 3 Yes
MP3 sampling rate 16kHz - 48kHz
MP3 bitrate 80kbps - 320kbps
80kbps - 160kbps (MPEG 2.5 Layer 3)Yes
WAV sample rate 16kHz - 48kHz
WAV bitrate Up to 3000kbps
Video Specifications
HDMI Video output (With Audio return channel)q
HDMI HDCP version 1.4
