Stealth Acoustics Invisible Speakers LR4G

Full Range, 6-Element Premium Invisible Speaker

The Stealth Acoustics model LR4G is a two panel, in-wall or in-ceiling speaker that becomes completely invisible after installation. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting perimeter. This model utilizes a separate panel for the low-frequency driver to maximize clarity and reduce intermodulation distortion.

Description

Frequency Response:
45Hz to 20kHz
Power Capacity:200 watts RMS

100 watts minimum
recommended power
Protection:Three independent self-resetting
devices (low, mid-range and high
frequency)
Sensitivity:80 dB (1 watt / 1 meter)
System Impedance:8Ω nominal
Driver Components:High frequency:1” (25 mm) neodymium motor
Midrange frequency:Four 1” (25 mm) neodymium motors
Low-frequency:1.5” (38 mm) voice coil
8” (203 mm) woofer
Ceramic 20 oz. (622 gr) magnet
Polar Dispersion:170 degrees vertical and horizontal

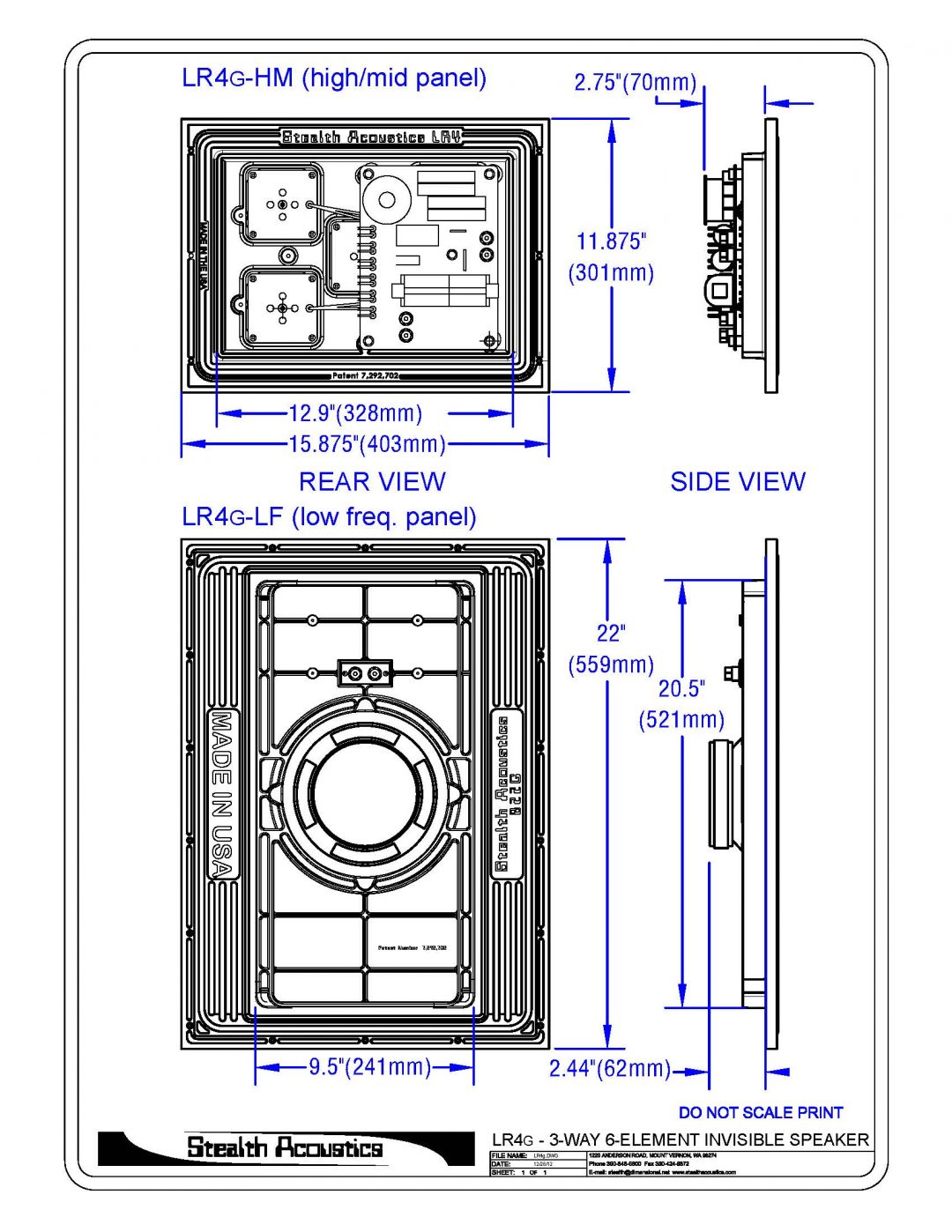

Dimensions:W15-7/8” (403 mm)
H34” (863 mm)
Mounting Depth:2-3/4” (70 mm)
Product Weight:26 lbs. (12 kg) each
Shipping Weight:55 lbs. (25 kg) per pair

30 lbs. (14 kg) per single
Included Accessories:Mounting shims

Shim tape

Mounting screws

Terminal wrench
Optional Accessories:PS-12 PlaceSaver (HM Panel)

PS-22 PlaceSaver (LF Panel)

MBX-12 Metal Back Box (HM Panel)

BX-22 Wood Back Box (LF Panel)

MBX-22 UL Listed Metal Back Box (LF Panel)

MBA-22 UL Listed Adjustable Metal Back Box (HM & LF Panel)

MBC-12 Concrete Back Box (HM Panel)

MBC-22 Concrete Back Box (LF Panel)

SK-1 Shim Kit

CVXMR 100, 75 and 25 volt Constant Voltage Transformers

WARRANTY – Extended Warranty 15 year
