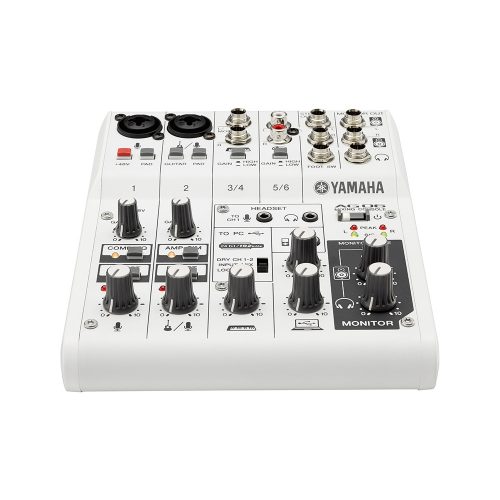

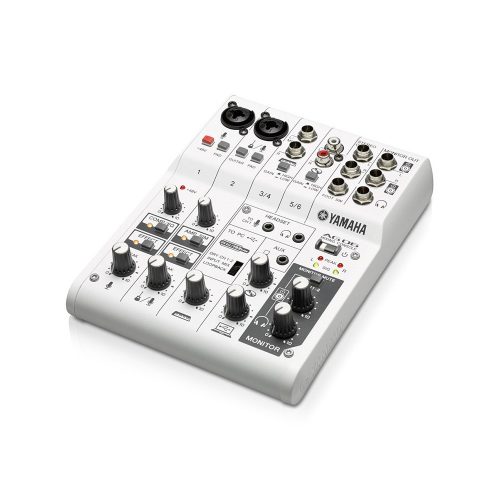

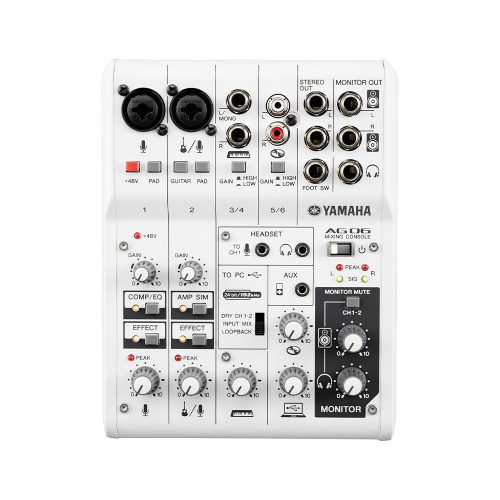

Yamaha AG Series AG06

  • High resolution (24-bit192kHz) 2-track audio recording and playback.
  • Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT and AMP SIM processing.
  • +48V phantom power on CH1 input for condenser mics and Dl boxes.
  • Hi-Z input for guitars on CH2.

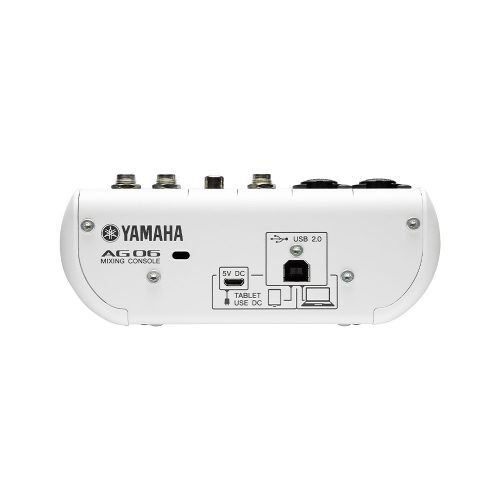

  • USB bus-powered for Mac & PC.

Description

Music Streaming / Webcasting

Yamaha

Ready to share your musical creations with the world? AG is an ideal tool for fast and easy production of musical content for live streaming sites like YOUTUBE LIVE and USTREAM, online lessons in real time, or creating video or audio podcasts offline.The AG's studio-quality sound will give your content a professional edge to win over your audience and increase your fan-base.



LOOPBACK function for internet live streaming

The LOOPBACK function enables live broadcasting of all the microphones, instruments and other audio sources along with background music from your PC / Mac or iPad.

Flexible connectivity

Since AG comes equipped with phantom power, you can connect a wide range of microphones including professional-level condenser mics. Andthe AG’s flexible Hi-Z input lets you connect a wide range of instruments like guitars, bass guitars and synthesizers.Equipped with studio-quality D-PRE mic preamps your AG will be able to capture the distinctive nuances of your vocal and instrumental performances with high-resolution sound.

1-TOUCH DSP offers professional sound with a single touch

AG features 1-TOUCH DSP that utilizes Yamaha’s state-of-the-art signal processing technology. COMP/EQ will hone your tone while EFFECT adds ambient reverb, and AMP SIM delivers a classic, warm tube amp sound—all at the touch of a button.

AG DSP Controller allows additional control of DSP settings

Compatible with Windows and MAC, AG DSP Controller gives you additional control of 1-TOUCH DSP parameters such as COMP, EQ, HPF, reverb, and the AMP SIM. EASY mode utilizes a simple intuitive interface while EXPERT mode gives users more detailed control.

High resolution (192 / 24bit) playback and recording

AG’s high-quality design enables 192kHz / 24bit sound that can reproduce even the most subtle nuances of your original recordings. If you useASIO compatible playback software, you can even bypass the internal Kernal mixer and reproduce the original sound faithfully.AG’s 192kHz/24bit sound quality is ideal for capturing the purest reproduction of your analog recordings when archiving your treasured collection.



Outline
I/OPhantom power+ 48 V
Input ChannelsMono[MIC/LINE]2 including HEADSET MIC (Plug-in Power)
Stereo[LINE]2
AUX1
Output ChannelsSTEREO OUT1
MONITOR OUT1
PHONES2 including HEADSET PHONES
BusStereo: 1
Input Channel FunctionPAD26 dB
PEAK LEDLED turns on when the signal reaches 3 dB below clipping level
On-board processorsDSPCH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb)
Level MeterUSB Output Level; 2 x 2 point LED meter [PEAK, SIG]
USBUSB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
General specifications
Power requirementsDC 5 V, 500 mA
Power consumptionMax. 2.5 W
System RequirementsOSWindows 7 or later / Mac OS X 10.7 or later
DimensionsW155 mm (6.1")
H63 mm (2.5")
D202 mm (8.0")
Net weight1.0 kg (2.2 lbs)
OptionsFoot Switch: FC5, Mic Stand Adaptor: BMS-10A
OthersFoot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C
