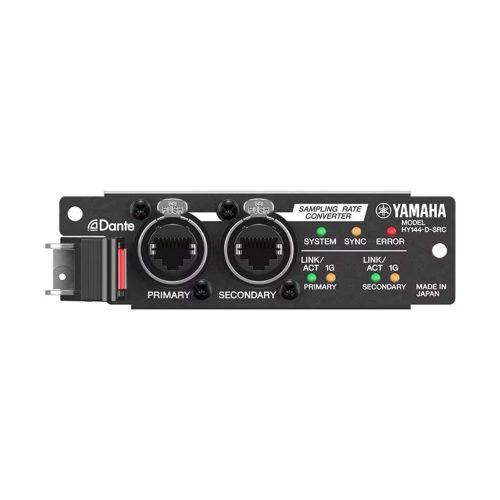

Yamaha Audio Interface Card HY144-D-SRC

The HY144-D-SRC audio interface card supports the Dante audio network protocol, handling up to 144 input and 144 output channels of 96 kHz/32-bit digital audio. Onboard sample rate conversion allows interconnection between devices operating at different sampling rates. Five operational modes can be selected via firmware.

Categories: ,


  • Transmits and receives up to 144 input and 144 output channels of uncompressed 96 kHz/32-bit digital audio.
  • Primary and secondary connectors support redundant connections. Daisy chain connections also supported.
  • Five firmware-selectable operating modes: 144io (SRC off, 144 in/144 out), 144io SyncSRC (SRC on, synchronous, 144 in/144 out), 72io AsyncSRC (SRC on, asynchronous, 72 in/72 out), 144in AsyncSRC (SRC on, asynchronous, 144 in/0 out), 144o AsyncSRC (SRC on, asynchronous, 0 in/144 out).
  • Dimensions (W x H x D): 125 x 37 x 207mm (4.9″ x 1.5″ x 8.2″)
  • Net Weight: 0.25 kg (0.6 lbs)
