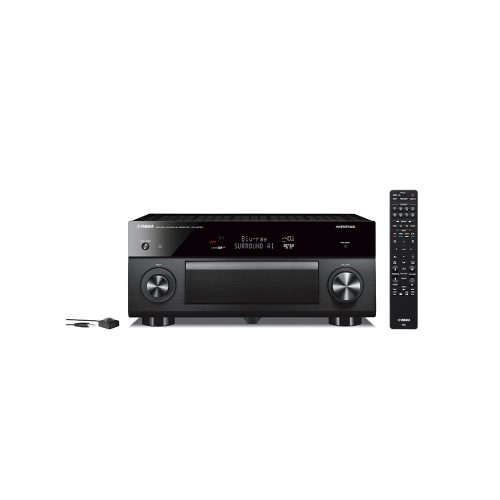

Yamaha AVENTAGE AV Receiver RX-A2080

9.2-channel AVENTAGE model with superior three-dimensional sound field playback and the latest, most advanced Surround:AI features.

  • 9-channel powerful surround sound
  • Dolby Atmos® and DTS:X™ with CINEMA DSP HD3
  • YPAO™-R.S.C. with 3D, multi-point measurement and precision EQ
  • Ability to add wireless surround speaker/s* (*MusicCast 20 or MusicCast 50)
  • Amazon Alexa voice control compatibility* (*Availability varies by region)
  • Highly rigid construction including Anti Resonance Technology (A.R.T.) Wedge

Description

Surround:AI

The AI technology built into the DSP analyses the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the greatest effect. This AI instantaneously analyses scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimises the surround effect in real time, just as if a Yamaha sound engineer tunes the best sound specifically for you. This creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible.



Dolby Atmos® and DTS-X™ Playback with CINEMA DSP HD3

This AV receiver supports Dolby Atmos and DTS-X playback with CINEMA DSP HD3, taking the surround sound experience to new heights. The revamped CINEMA DSP HD3 features new signal processing algorithms and three sets of high performance processors. This maximises theatre sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. You will experience a realistic cinema sound field with the sense of truly being immersed in the movie scene.



ESS SABRE™ ES9007S Premier DACs

Incorporating the SABRE ES9007S Premier Audio DACs from ESS Technology to achieve an exceptionally good signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.



YPAO™ - R.S.C. with 3D, Multi-Point Measurement and Precision EQ

YPAO-R.S.C. (Reflected Sound Control) analyses the room acoustics with the included YPAO microphone to tune your system for the best sound in your unique room. It employs R.S.C. to correct early reflections for studio-quality surround sound. YPAO 3D provides automatic sound parameter optimisation that maximises the 3D sound field effectiveness of CINEMA DSP HD3 as well as Dolby Atmos and DTS:X. Precision EQ calculation achieves the most natural room acoustics possible.



Wireless Surround Speakers

Combine this AV receiver with the MusicCast 50 or MusicCast 20 wireless streaming speaker and enjoy the amazing convenience of creating a home theatre with wireless rear speakers. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your current living room into a special entertainment environment where you can fully enjoy movies and music.



AirPlay 2

Hey Siri. Play music in the kitchen and living room.

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply ask Siri for an assist.

Amplifier SectionChannel9.2
Rated Output Power (1kHz, 1ch driven)220 W (4 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven)140 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)220 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms)165 / 210 / 285 / 405 W
Surround Sound ProcessingSurround:AIYes
CINEMA DSPYes (HD3)
DSP Programs24
Dialog Level AdjustmentYes
Virtual Presence SpeakerYes
Virtual Surround Back SpeakerYes
Dialogue LiftYes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSPYes (Virtual CINEMA FRONT)
Dolby AtmosYes
Dolby TrueHDYes
Dolby Digital PlusYes
Dolby SurroundYes
DTS:XYes
DTS-HD Master AudioYes
Audio FeaturesFile FormatMP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
Pure DirectYes (with video on mode)
Compressed Music EnhancerYes
High-resolution Music EnhancerYes
YPAO multi-point measurementYes with R.S.C. (Reflected Sound Control), 3D, 64-bit Precision EQ Calculation and Angle Measurement
YPAO VolumeYes
Adaptive DRC (Dynamic Range Control)Yes
Initial Volume & Maximum Volume SettingYes
A.R.T. WedgeYes
Bi-amp capabilityYes
Audio DelayYes (0-500 ms)
DA ConverterESS 384 kHz / 32-bit SABRE Premier DAC ES9007S x 2
Video Features4K Ultra HD Pass-through and upscalingYes (4K / 60p, 4:4:4)
HDMI 3D passthroughYes
HDMI eARCYes (via future firmware update)
HDMI Audio Return ChannelYes
HDMI Up-scalingYes (Analogue to HDMI® / HDMI to HDMI)
Video adjustmentYes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-SyncYes
ConnectivityMusicCast SurroundYes
HDMI Input/Output7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CECYes (SCENE, Device Control)
USB InputUSB Memory, Portable Audio Player
Network PortYes
Wi-FiYes (2.4 / 5 GHz)
AirPlayYes
BluetoothYes (SBC / AAC)
Front AV InputUSB / Analogue Audio
Digital Audio Input/Output: Optical3 / 0
Digital Audio Input/Output: Coaxial3 / 0
Analog Audio Input/Output9 (front 1) / 0
Phono InputYes
Component Video Input/Output2 / 0
Composite Video Input/Output4 / 0
Preout7.2-ch
Headphone Output1
Tuner SectionFM/AM TunerYes
User InterfaceOn-screen displayGraphical User Interface
SCENESCENE PLUS (8 sets)
App ControlYes (iPhone / iPad / Android phone / tablet)
Web Browser ControlYes
Remote Control UnitYes (Full LED Backlight)
Zone ControlZone 2 Audio OutputPreout / HDMI
Zone 3 Audio OutputPreout
Zone 4 Audio OutputHDMI
Powered ZoneZone 2 / 3
Zone Video OutputHDMI / Component / Composite
Zone HDMIYes (Advanced HDMI Zone Switching)
Zone B OutputHDMI
Zone GUIYes
RS-232C InterfaceYes
+12V Trigger Output2
Remote (IR) Input/Output1 / 1
Party ModeYes
GeneralStandby Power Consumption (IR only)≤0.1W
Auto Power StandbyYes
ECO modeYes
Dimensions (W x H x D)435 x 192 x 474 mm (with antenna up: 435 x 269 x 474 mm); 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 10-1/4” x 18-5/8”)
Weight17 kg; 37.5 lbs.
