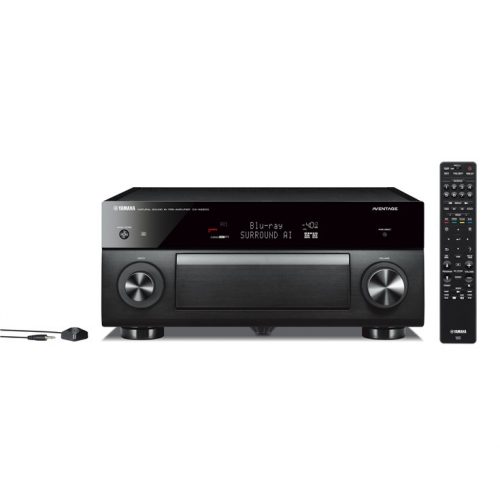

Yamaha AVENTAGE AV Receiver CX-A5200

Experience the future of home cinema with the 11.2-channel CX-A5200 AVENTAGE pre-amplifier. Yamaha’s renowned CINEMA DSP HD3 combined with Dolby Atmos® and DTS:X™ deliver an exhilarating home cinema experience.

  • AVENTAGE 11.2-channel pre-amplifier
  • SURROUND:AI automatically optimises the surround effect in real time
  • Dolby Atmos and DTS:X with CINEMA DSP HD3
  • HDMI® (7 in / 3 out) with Dolby Vision™ and Hybrid Log-Gamma
  • Studio-grade ESS DAC (ES9026 PRO x 2)
  • MusicCast multi-room technology
  • Amazon Alexa voice control compatibility* (*Availability varies by region)

Description

CX-A5200

AV Receiver

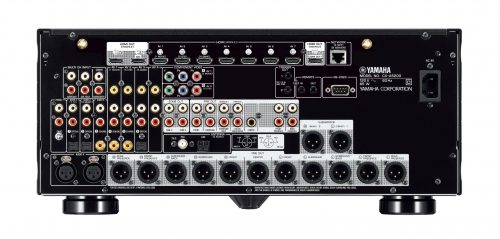

Connectivity HDMI Input/Output 7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
USB Input USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes
Bluetooth Yes

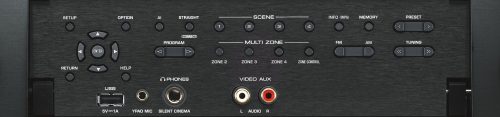

Front AV Input USB / Analogue Audio
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 0
Phono Input Yes
XLR Terminal Yes
Component Video Input/Output 2 / 0
Composite Video Input/Output 4 / 0
Preout XLR Balance: 11.2 ch, RCA Unbalance: 11.2 ch
Headphone Output 1
Zone Control Zone 2 Audio Output Preout / HDMI
Zone 3 Audio Output Preout
Zone 4 Audio Output HDMI
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (Advanced HDMI Zone Switching)
Zone B Output HDMI
Zone GUI Yes
RS-232C Interface Yes
+12V Trigger Output 2
Remote (IR) Input/Output 1-Jan
Party Mode Yes
General Standby Power Consumption (IR only) ≤ 0.1W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 193 x 474 mm (with antenna up: 435 x 270 x 474 mm)
Weight 15.2 kg; 33.5 lbs.
