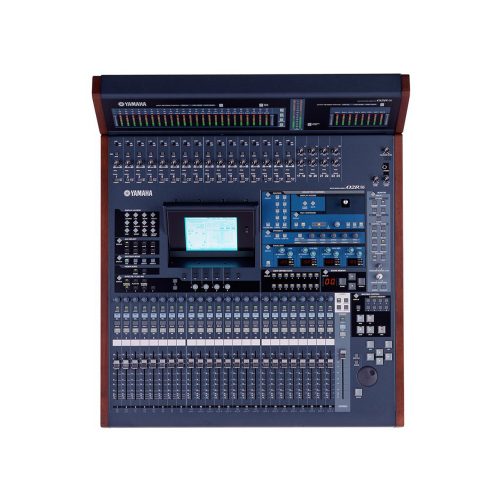

After its release in August 1995, the 02R rapidly became the de-facto digital console standard for musicians and engineers around the globe. The 02R96 picks up where the 02R left off, implementing the most advanced digital audio technology developed and refined in parallel with development of the top-of-the-line DM2000 console. The result is that the 02R96 surpasses the 02R in every respect: audio quality, processing power, and DAW integration capability. Where the 02R had 21 motor faders, the 02R96 has 25. Other additions include recorder control keys, user defined keys, and dramatically improved operability overall. But since it has the same footprint as the 02R, it can be used as a direct replacement without requiring major infrastructure changes.

Advanced custom DSP7 LSIs feature 32-bit internal processing (58-bit accumulator) at extremely high speed. Full functionality is provided when mixing all 56 channels at 96 kHz. All analog inputs and outputs — including the 16 microphone/line inputs — employ precision 24-bit A/D and D/A converters for an outstanding 110-dB dynamic range. Top-performance head amplifiers provide precise, uncolored pre-amplification prior to A/D conversion, and optimum circuit configurations and parts for all stages of the design were determined through repeated listening tests by some of the best "ears" in the industry.

Although it maintains the same compact desk-top dimensions as the 02R, the 02R96 offers generous mixing capacity with up to 56 simultaneous inputs. All 56 input channels include four-band parametric EQ, gating, compression/limiting, and up to 453 milliseconds of delay with variable feedback. What's more, all of this functionality is available at 96 kHz. The output section also offers plenty of versatility with 18 buses: 8 group buses, 8 auxiliary buses and a stereo bus. Group buses 1 through 6 also function as surround buses, and a Bus to Stereo function allows sound-reinforcement type sub-mixing as well as easy downmixing of 5.1 or 3-1 surround to stereo. Of the 8 auxiliary buses, 1 through 6 can be used as surround effect sends, and there's a "Unity" function that automatically sets the auxiliary buses to nominal (0 dB) level, so they can be used as additional group buses.

All 56 input channels, 8 group buses, 8 auxiliary buses, and stereo bus feature powerful mixing functions including gate and compressor dynamics processing, input attenuation, four-band parametric EQ with a choice of Type I and Type II algorithms, channel inserts, delay, surround and stereo panning, and phase. Easy-access dedicated controllers are provided for routing, auxiliary send, dynamics, stereo and surround panning, and EQ. Control data is graphically displayed via the LCD screen, and can be saved in "libraries" for easy recall whenever needed. All inputs, outputs, insert patch points, direct outputs, and effect sends and returns can be freely patched to configure the system as required via graphical on-screen "digital patching" displays: for example, you could patch one input to multiple channels, or assign the signal from one bus to multiple outputs. The encoders associated with each fader can be used to make input patch and direct out settings, and you can save your patch settings as library data for recall when needed.

The 02R96's four internal effect processors deliver full functionality and performance even when the console is running at 96 kHz. New effect programs such as multi-band compression and surround-compatible 5.1 reverb and 5.1 modulation* augment the console's processing capabilities, and can be used in a send/return loop or as inserts effects.

* Each surround processor may occupy up to four of the onboard effect processors.

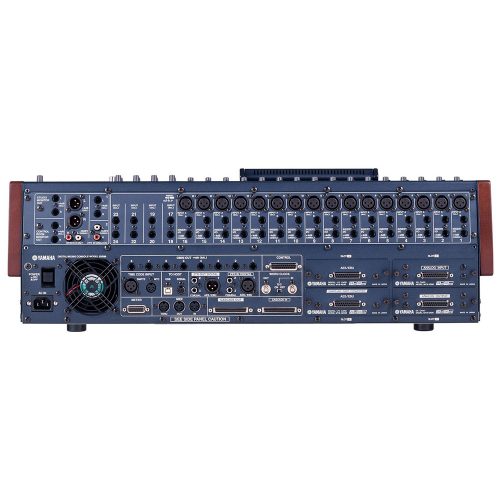

The 02R96 rear panel provides 16 microphone/line inputs with balanced XLR/TRS jacks that feature top-performance head amplifiers for outstanding audio quality. These inputs also offer insert I/O jacks with bypass switches, and individual phantom power switches. There are five 2-track inputs: two analog and three digital with built-in sample rate converters. All analog inputs and outputs employ precision 24-bit, 96-kHz converters. Eight versatile "omni" outputs can be used for stereo or surround monitoring. One AES/EBU format digital stereo output and two coaxial digital stereo outputs provide a total of three digital outs for broad connectivity.

Each of four Mini-YGDAI (Yamaha General Digital Audio Interface) expansion card slots support up to 16 additional channels of digital I/O in AES/EBU, ADAT or TASCAM format, as well as a range of other interface cards including double-speed 96 kHz (AES/EBU) digital I/O cards, 96-kHz compatible AD/DA cards, and a range of analog I/O cards. The 02R96 expansion slot also accepts various Mini-YGDAI compatible cards available from third parties.

24 faders provide access to the console's 56 input channels in three layers: 1 through 24, 25 through 48, and 49 through 56 plus master. Add the stereo master and you have a total of 25 top-quality 100-millimeter motor faders with high 8-bit/256-step resolution. The bus and auxiliary faders are provided in another layer, and a "remote" layer is provided for external device control. A Fader Mode key additionally allows the auxiliary send levels to be assigned to the faders. The rotary encoder and switch associated with each fader can be switched to any of four modes via the Encoder Mode key. The encoders can be used for panning or auxiliary send, as well any two functions you assign. You could assign input patching or direct out assignments to the encoders to allow fast, efficient setup in your specific work environment.

The 02R96 features automix capability with 1/4-frame resolution, allowing full automation of parameters right down to the internal effects. Automix functions can be assigned to the User Defined Keys for easy access. Scene memories allow fade times and recall safe settings to be specified independently for each channel, while recall safe can even be specified at the function level. The supplied 02R96 Editor that runs on the Studio Manager application can be used to manage scene and automix data on your personal computer.

In addition to "horizontal pairing" of adjacent channels, the 02R96 allows "vertical pairing" of channels on different layers so that, for example, you can control up to 24 stereo sources from a single layer. Grouping functions include the familiar fader and mute grouping, as well as sophisticated EQ and dynamics grouping. The latter can be a great advantage when mixing surround sound.

The 02R96 comes supplied with an advanced 02R96 Editor application for Windows or Mac computers. The 02R96 connects to your computer via the TO HOST interface (USB or RS232), creating a production environment that goes beyond simple parameter viewers. The Console Window, Selected Channel Module, Surround Editor, Patch Editor, Effect Editor, Timecode Counter Window, GEQ Editor, and Library Window can be accessed via the computer's expansive color display, and the main mixer functions can be edited offline. Memory management functions allow 02R96 data to be transferred to and from the computer where it can be managed and even shared via LAN or the Internet.

In addition to its extensive stand-alone capabilities the 02R96 can integrate with your computer-based DAW (Digital Audio Workstation) or digital recorder to create an advanced digital production environment. The 02R96 can function as a physical controller for both recorder and mixer sections of your DAW. The standard library includes control compatibility with Digidesign Pro Tools® and Steinberg NUENDO® workstations, and the General DAW mode supports a range of other DAW systems. MIDI control tables can also be created to provide functionality with MIDI-compatible DAW systems.

Surround panning was originally provided on the 02R and 03D, but the 02R96 goes much further with a comprehensive range of features for surround production. The Bus to Stereo function makes it easy to downmix 5.1 or 3-1 surround sources to stereo, and the 3-1 output can be connected via Dolby Surround or DTS stereo encoders back to an 02R96 slot input to allow real-time comparison between the encoded and pre-encoded sound. A panning joystick is provided in the Selected Channel control section to facilitate complex panning moves and trace specified panning patterns. Surround panning features 127 x 127 resolution, and divergence control is possible in 0 ~ 100 steps. Surround-compatible effects in up to 8-in/8-out configurations include 5.1 reverb, modulation, and dynamics.* EQ and dynamics grouping is another feature that can be a great advantage for surround production.

* Each surround processor may occupy up to four of the onboard effect processors.

The 02R96 monitor section provides facilities for muting individual buses (speakers), centralized level control of all monitor outputs, stem mix monitoring, and real-time comparison between the encoded and pre-encoded Dolby Surround or DTS stereo sound. Downmix processing allows 5.1 to 3-1, 5.1 to stereo, or 3-1 to stereo monitoring without affecting the signal sent to the recorder. A Speaker Control function allows fine control of the monitoring environment to match the program material you are mixing as well as your working environment. All of the top-line DM2000 console's surround features have been implemented in the 02R96, including bass management, attenuators for precise speaker level control, and delay for "virtual speaker repositioning".
