Outline |

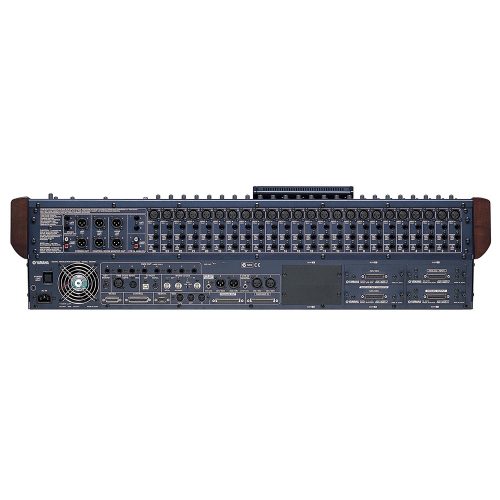

Mixing capability | Mixing channels | 96 |
GROUP | 8 |
AUX | 12 |
MAIN | Stereo |
MATRIX | 4 Stereo |
Input channel functions | Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan |
Output channel functions | Attenuator, 4-band PEQ, Compressor, Delay |
On-board processors | 8x SPX multi effectors, 6x 31-band GEQs |
I/O | Mic inputs | 24 |
Phantom power | +48V DC; ON/OFF per channel |
Line inputs | 2x 2tr in |
AD converter | 24-bit; 128-time over sampling |
Line outputs | Stereo output, Studio monitor output, 2x C-R monitor output, 8x Omni output |
DA converter | 24-bit; 128-time over sampling |
Digital I/O | 3x 2tr in/out, Cascade I/O |
Expansion slots | 6x Mini-YGDAI (16-in/16-out) |
Control and others | To Host(USB/Serial), Control(GPI), Remote, MIDI, Time code in (SMPTE/MTC), Keyboard, Word clock in, 2x Word clock out, Smart media slot, 2x Lamp on MB2000 optional meter bridge |
General specifications |
Internal processing | 32bit, Accumulator: 58bit |
Sampling frequency rate | Internal | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
External | 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) |
Signal delay | Less than 2.3ms (@48kHz), Less than 1.2ms (@96kHz) |
Total harmonic distortion | Less than 0.05% (20Hz-40kHz) |
Frequency response | 0, +0.5, -1.5dB 20Hz-40kHz |
Dynamic range | DA: 110dB; AD+DA: 108dB |
Hum & noise level | Equivalent input noise | -128dBu |
Residual output noise | -94dBu |
Crosstalk | -80dB |
Power requirements | AC100V, 120V, 220-240V 50/60 Hz |
Power consumption | 300W |
Dimensions | W | 906mm; 35-11/16in |
H | 257mm; 10-1/8in |
D | 821mm; 32-5/16in |
Net weight | 43kg; 94.8lbs |
Accessories | Owner’s Manual, Studio Manager Installation Guide, AC power cord |
