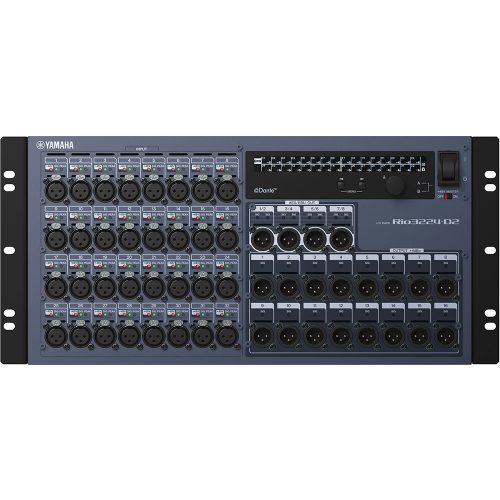

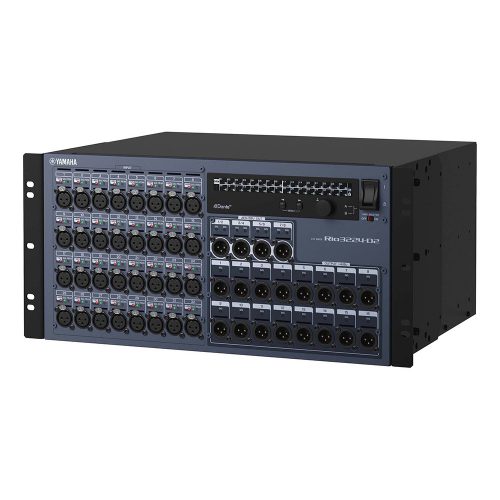

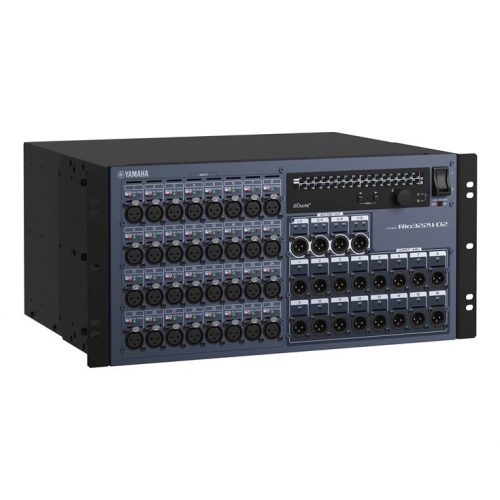

Yamaha RIVAGE PM10 Rio3224-D2

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

  • 32 analog inputs and 16 outputs, and 8 digital outputs.
  • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
  • Comprehensive display and local control of gain and other parameters.
  • Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
  • Net Weight: 13.5 kg (29.8 lbs)

Description

Yamaha’s unwavering approach to live sound reinforcement is wholly inherited in the Rio3224-D2 and Rio1608-D2 I/O Racks, allowing the on-stage sound to be cleanly captured and then shaped as required by the engineer. Analog circuitry developed for the first-generation Rio3224-D and Rio1608-D I/O Racks has been revised to deliver sound that represents another evolution in Yamaha’s “natural sound” concept, and overall performance that is truly worthy of “RIVAGE PM series” status.

Audinate’s Dante network protocol offers extensive flexibility for system setup and configuration. With Dante, you have the freedom to use just about any combination of devices that suits the application, and to position those devices wherever they will be most convenient. It also allows for redundancy that can keep the system running even if a problem occurs. Then there’s the Dante Controller software application for easy, flexible patching of devices on the network.

In addition to supporting the AES67 standard for audio over IP interoperability, Dante offers other valuable facilities such as Dante Device Lock to prevent unauthorized operation, and the Dante Domain Manager for efficient user authentication and role-based security.*

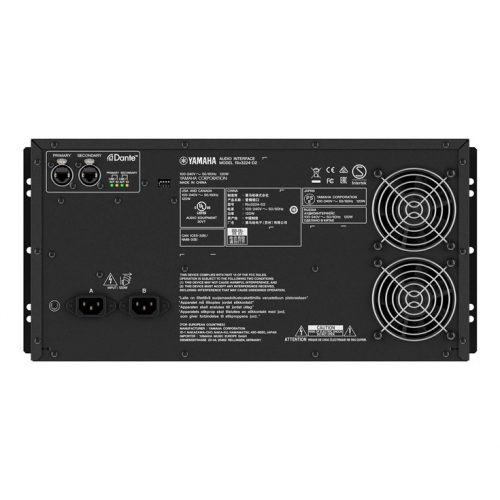

Power failure is a major risk when operating any audio I/O device. Both the Rio3224-D2 and Rio1608-D2 I/O Racks include dual power supply units to reduce the chance that power loss will result in downtime during a show. If a problem occurs with one power source, operation will continue unaffected as long as the second power source is active. Internal airflow has been redesigned too, reducing fan noise for notably quieter operation.

When multiple consoles are connected to one I/O rack and operators at those consoles make analog gain changes, the results can be unpredictable and usually undesirable. The Rio3224-D2 and Rio1608-D2 feature a Gain Compensation function that automatically adjusts gain at the digital stage to compensate for analog gain changes, ensuring that sound is sent to the network at a constant level.



Character Displays and Control Improvements

Another Rio3224-D2 and Rio1608-D2 refinement is the provision of character/icon displays rather than basic LED indicators, allowing quick, easy confirmation of Dante settings as well as metering, gain, high-pass filters, phantom power, and more. It is also possible to edit gain, high-pass filters, and phantom power settings directly from the I/O Rack interface, and even lock them if required. Remote operation from the R Remote software application is also possible.

Sampling frequency rateExternal44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)
Signal delayLess than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
Total harmonic distortionLess than 0.05% 20 Hz-20 kHz@+4 dBu into 600Ω, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600Ω, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min.
Frequency response+0.5, –1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, –1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
Dynamic range112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
Hum & noise levelEquivalent input noise–128 dBu typ., Input Gain= Max.
Residual output noise–88 dBu, ST master off
Crosstalk-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz
Power requirements100-240V, 50/60Hz
Power consumption120W
DimensionsW480 mm (18.9")
H220 mm (8.7")
D368 mm (14.5")
Net weight13.5 kg (29.8 lbs)
AccessoriesOwner’s Manual, AC power cord (250cm), Dante Virtual Soundcard Token leaflet
OthersNC Value: FAN MODE LOW: NC=20 / HIGH: NC=30 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: –20 - 60°C
