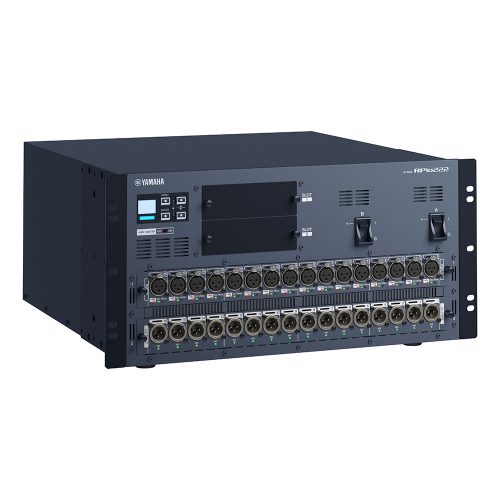

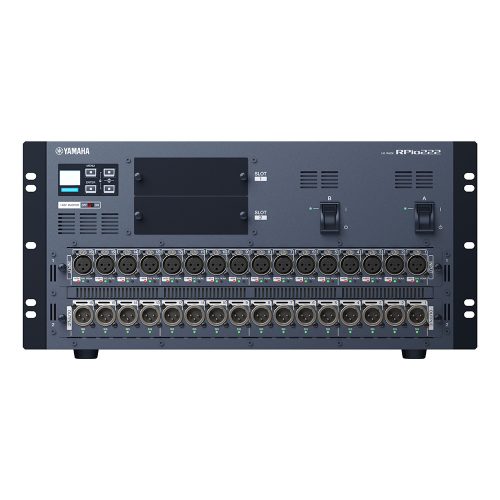

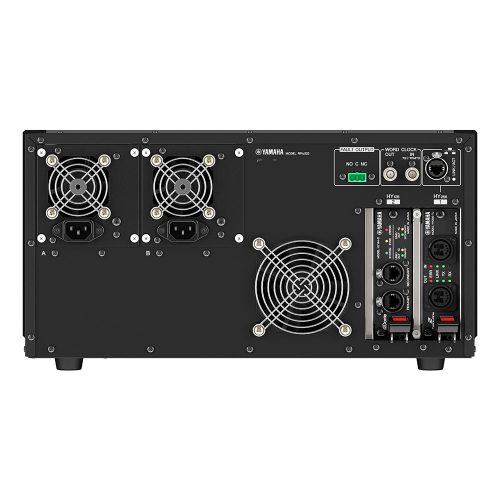

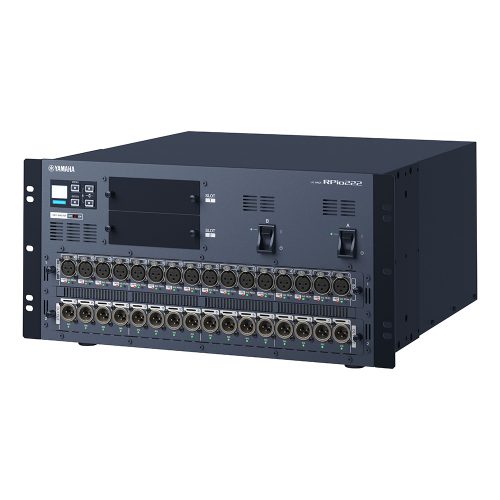

Yamaha RIVAGE PM10 RPio222

The RPio222 I/O rack features two RY card slots that provide flexible analog and digital I/O configuration and expansion capability for RIVAGE PM series systems employing low-latency TWINLANe networking. Dual power supply units are built in.


  • Two RY card slots that enable you to expand analog inputs and outputs, and/or digital inputs and outputs.
  • Two HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
  • HY card slot 1 features 256 ins/outs, and HY card slot 2 features 128 ins/outs.
  • Two mini-YGDAI slots to support various audio formats.
  • Dual redundant power supply built-in
  • Dimensions (WxHxD): 480 x 232 x 491mm (18.9" x 9.1" x 19.3") (5U rack size)
  • Net Weight: 19 kg (41.9 lbs)
