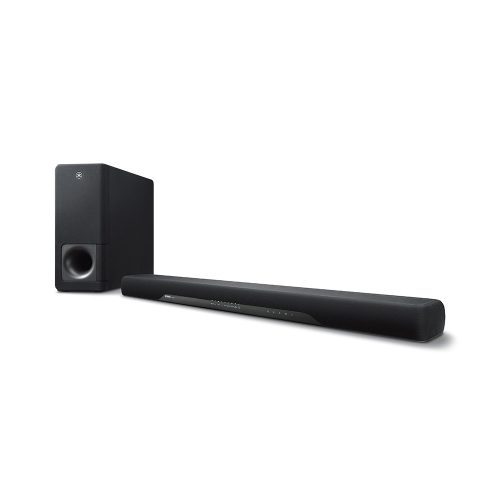

Yamaha Sound Bar ATS-2070

Sleek. Dynamic. Wireless.

World’s first use of DTS Virtual:X*. 3D surround as you’ve never heard before. Just this one device gives you sound coming down from the ceiling — such as the sound of rainfall from the sky or a spaceship flying overhead. Soak in the immersive, stunning presence of your favourite movies, concert videos and games — as if you’re really there!

Description

Vast soundscape. Soak in it

World's first use of DTS Virtual:X*. 3D surround as you’ve never heard before. Just this one device gives you sound coming down from the ceiling — such as the sound of rainfall from the sky or a spaceship flying overhead. Soak in the immersive, stunning presence of your favourite movies, concert videos and games — as if you’re really there!

* In-house research (as of May 2017). The firmware for DTS Virtual:X is already available.

** Even if your sources are not compatible with 3D surround, a special “Up-mix” function provides enhanced multi-dimensional presence.

No more. With the ATS-2070, you can hear it all. Fully dynamic, exceptionally clear sound — with a simple connection. What’s more, a Clear Voice function brings the sound of narration and dialogue to the forefront, while keeping the overall sound quality intact. Movies, TV shows, sports commentary, news casts — all instantly more clear and audible.

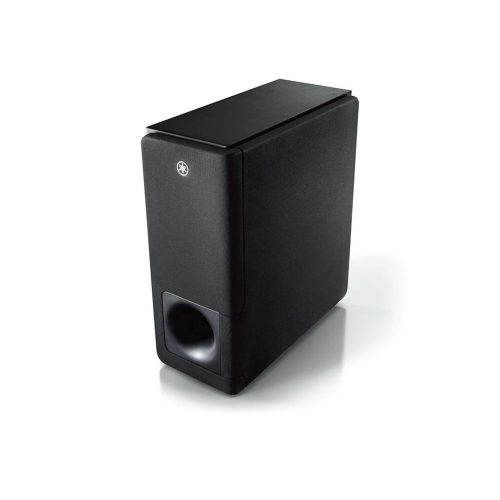

Bass to move you, and keep you moving! Powerful, profound movie theatre sound — right in your home. Since the ATS-2070 system includes an external subwoofer, enjoy the explosive sounds of action movies and the electrifying atmosphere of concert videos — and make your home entertainment more exciting than ever.



Design

Perfect blend. Your style, your room

Just 60 mm (2-3/8") high, the centre unit can fit in front of your TV, and never obstruct your view. Plus, you can attach it to a wall using the keyholes, and get amazingly great sound in a slim package — a perfect match for your TV, whatever the installation.

* Included attachment template makes it extremely easy to position the screws for installation.

Stream your favourite music right from your smartphone, with true high-quality wireless performance. The ATS-2070 automatically enhances the high-end of compressed music sources (such as MP3) and deepens the mid-to-low ranges — giving you exceptionally vivid and warm sound of quality approaching the original.

A simple HDMI connection is all you need for your TV and Blu-ray Disc™ player. Open the box, put the ATS-2070 where you want, and connect the cables. Clean. Fast. Easy.

* HDMI cables sold separately

If your TV is compatible with HDMI-CEC, you can turn the power on / off, switch inputs, adjust the volume and easily perform other operations in combination with the TV — with just a single remote.



Fingertip control

If you need to go deeper, there’s a HOME THEATER CONTROLLER app, giving you smart operability in a beautiful, intuitive, and easy-to-understand design. Select the content you want to play, fine-tune the sound quality, as well as turn the system power on and off — all with convenient fingertip control from your smartphone.

GeneralDrivers(Centre Unit) : Four 4.6 cm (1-3/4”) woofers, Dual 2.5 cm (1") tweeters, (Subwoofer) : 16 cm (6-1/4”) cone woofer
Output Power200W total power: 100 W + 100 W subwoofer
Power Consumption(Centre Unit) : 30 W, (Subwoofer) : 19 W
Standby Power Consumption(Centre Unit) : 0.4 W (HDMI control, Bluetooth standby off), 0.9 W (HDMI control on, Bluetooth standby off), 0.5 W (HDMI control off, Bluetooth standby on), 0.9 W (HDMI control on, Bluetooth standby on)
Dimensions (W x H x D)(Centre Unit) : 930 x 60 x 108 mm; 36-5/8” x 2-3/8” x 4-1/4”, (Subwoofer) : 180 x 437 x 401 mm; 7-1/8” x 17-1/4” x 15-3/4”
Weight(Centre Unit) : 2.7 kg; 6.0 lbs, (Subwoofer) : 7.9 kg; 17.4 lbs
Input / OutputHDMI1 in / 1 out
Digital Optical1 in
Analog Audio1 in
HDMI4K Pass-throughYes (50 / 60 Hz YCbCr=4:4:4, HDR, HDCP2.2)
3D Pass-throughYes
ARCYes
CECYes
Auto Lip-SyncYes
Sound TechnologySurround TechnologyDTS Virtual:X
Surround ModeMusic, TV program, Movie, Sport, Game
Compressed Music EnhancerYes (for Bluetooth®)
Bass ExtensionYes
Audio FormatsDolby DigitalYes
Dolby Pro Logic IIYes
DTS Digital SurroundYes
ConnectivityWireless Music StreamingYes (with Bluetooth)
Bluetooth Version/Profile(Version) Ver. 4.1 + EDR (Profile) A2DP, SPP (Audio Codec) SBC, MPEG AAC
Bluetooth Maximum Communication Range10 m ; 33 ft (*without obstructions)
Wireless SubwooferYes
Other FeaturesApp ControlYes
