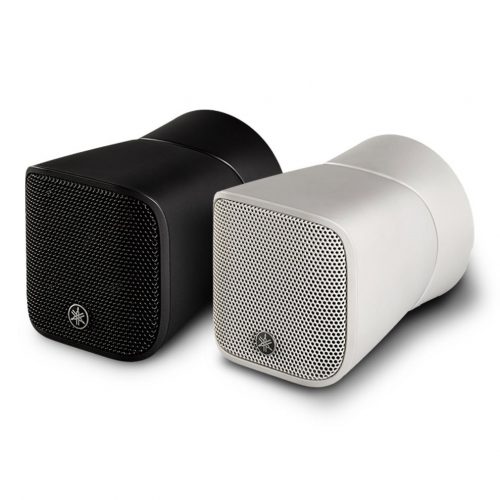

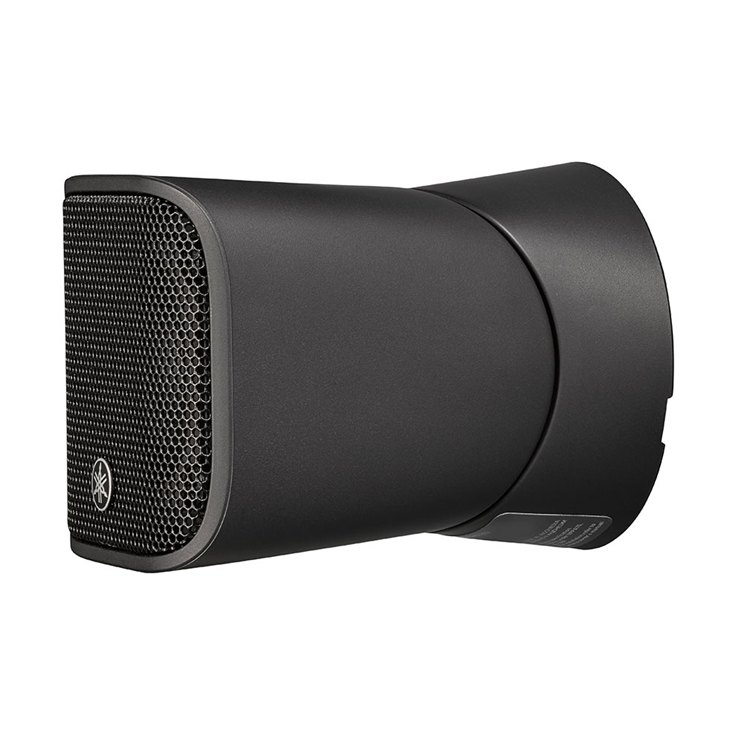

Yamaha VXS Series “M model” VXS1MLB / VXS1MLW

Full-range compact surface mount speaker with a 1.5″ driver

  • Newly developed 1.5-inch full-range driver unit
  • Wide 170° horizontal and vertical dispersion

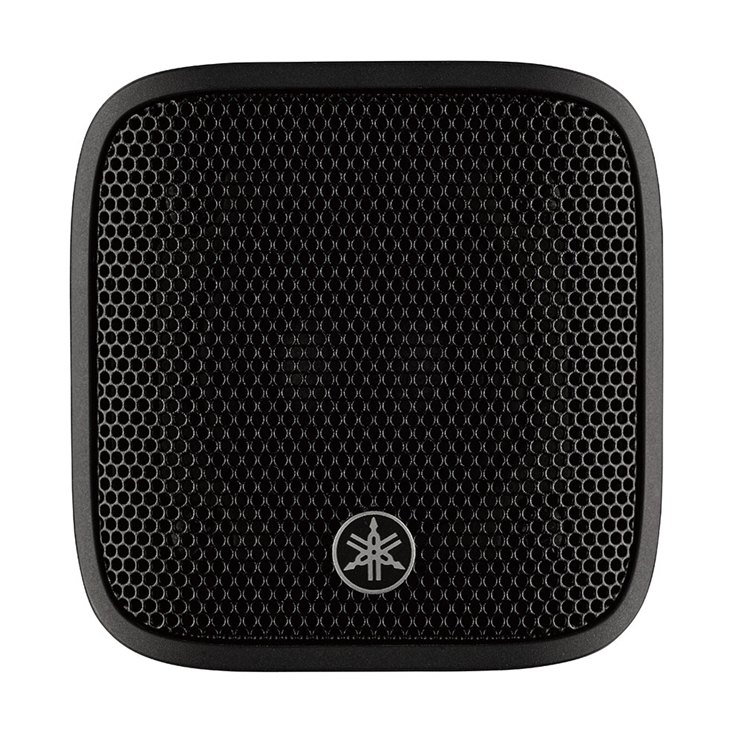

  • Compact 62mm x 62mm form blends unobtrusively with any décor

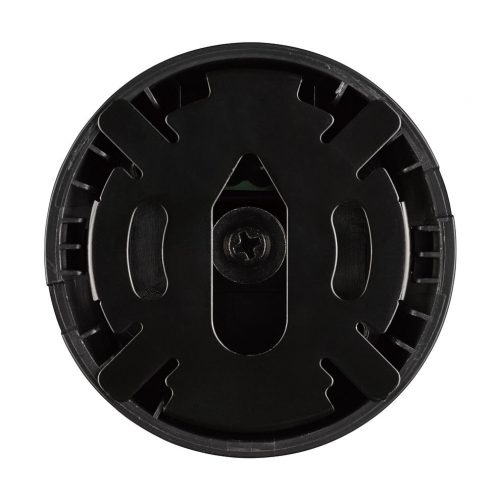

  • Dedicated wall/ceiling mount hardware supplied
  • Packaging single
  • Paintable enclosures and grilles


Optimized for Background Music

Background music reproduction requires uniform dispersion, uniform frequency response, and optimum sound pressure level for the space. The VXS Series M model has been designed specifically for BGM applications, and satisfies all of the above conditions to the highest degree. Broad 170° horizontal and vertical dispersion delivers uniformly accurate frequency response throughout the coverage area, providing sound so natural that the listener might be fooled into believing it is a live musical performance.


High-performance Full-range Driver

The VXS1ML features a newly developed compact 1.5-inch full-range driver with a powerful neodymium magnet. This innovative driver has been painstakingly designed to achieve remarkably detailed, realistic reproduction of musical waveforms. The entire system has been fine-tuned to deliver top-quality sound in a surprisingly compact, lightweight unit.


A Sublime Blend of Function and Elegance

In addition to being packed into the smallest possible dimensions to minimize visual impact, the VXS1ML boasts smoothly flowing lines that allow it to blend unobtrusively with just about any interior décor. The VXS1ML brings together the best of both worlds: outstanding sound and sophisticated visual appeal.

Speaker typeFull-range, acoustic suspension type
Frequency range (-10dB)180Hz-20kHz
Nominal coverageH170°
ComponentsLF-HF1.5″ Cone
Power ratingNOISE5W
Nominal impedance
SPLSensitivity (1W; 1m on axis)79dB SPL *1
Peak (Calculated)92dB SPL *2

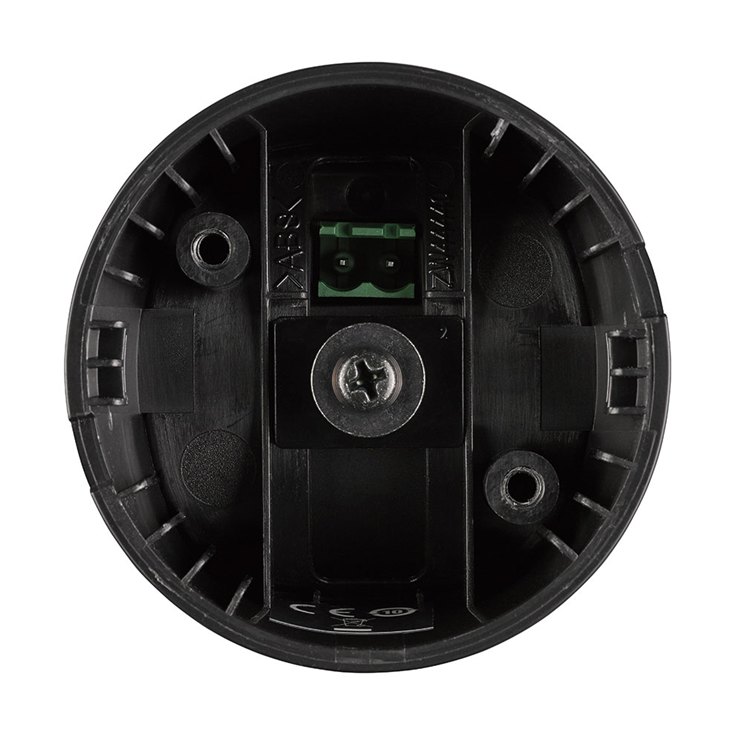

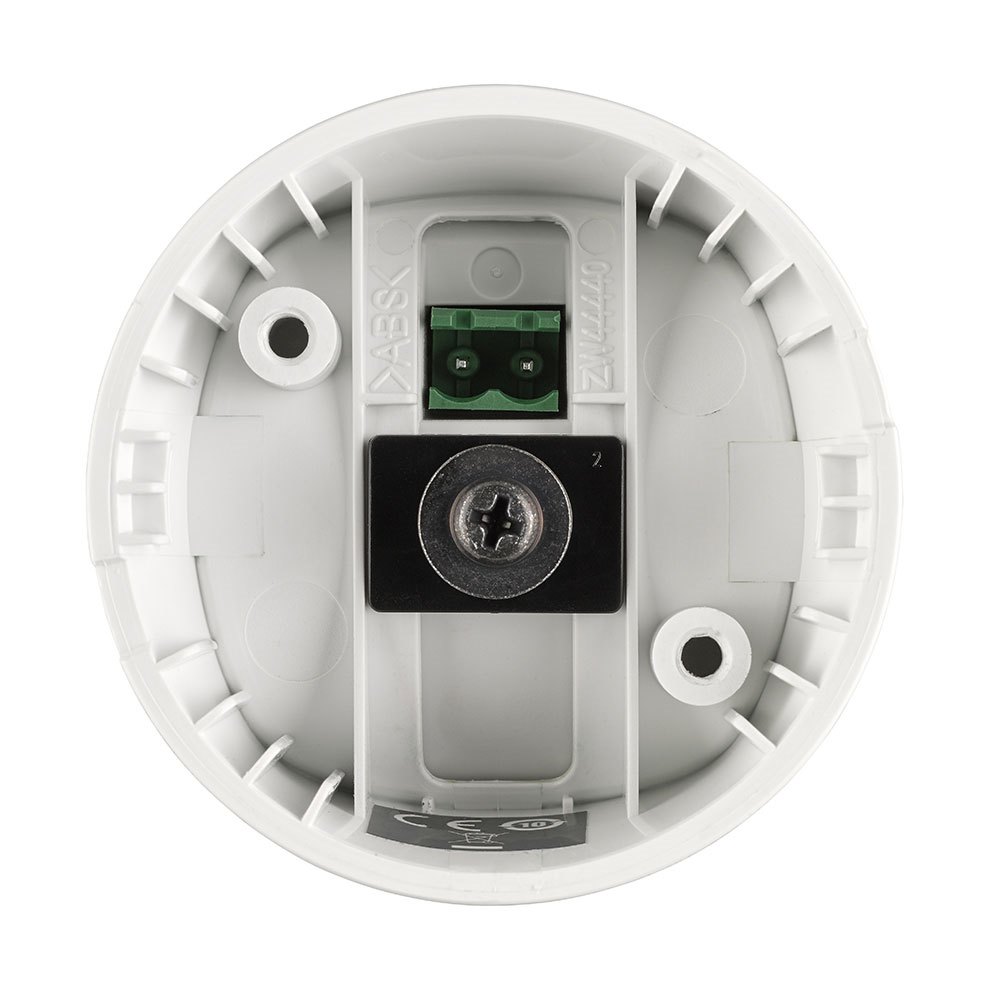

I/O connectorsEuroblock (2 pin) × 1

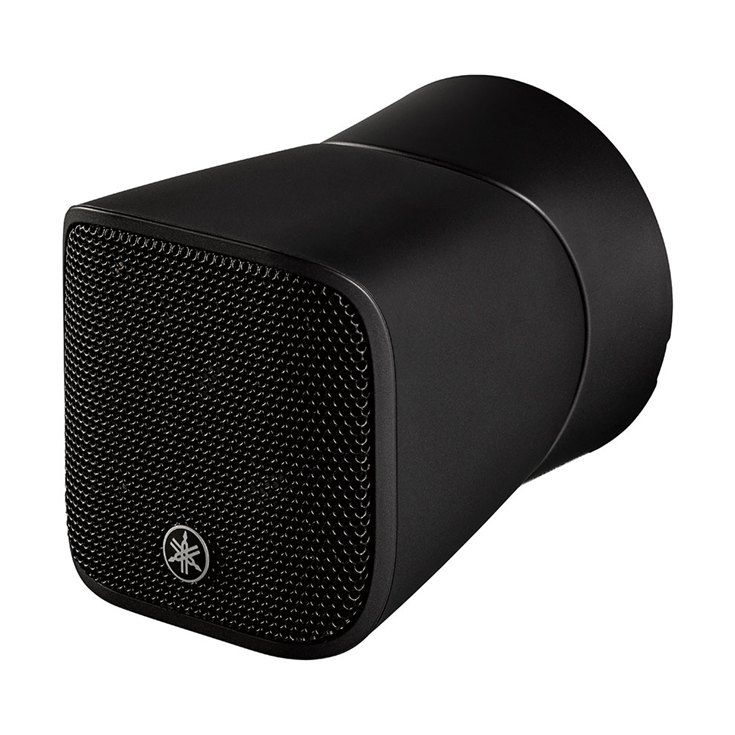

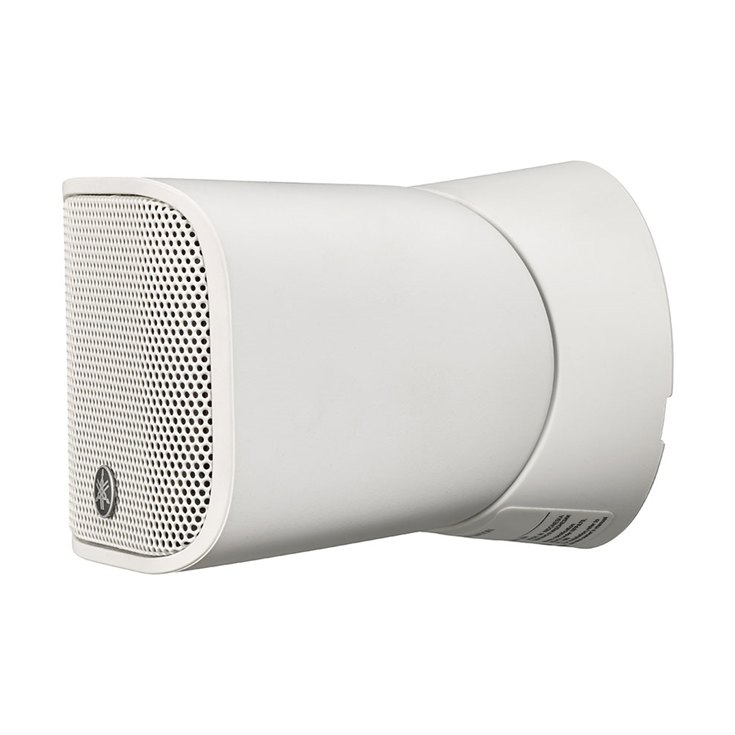

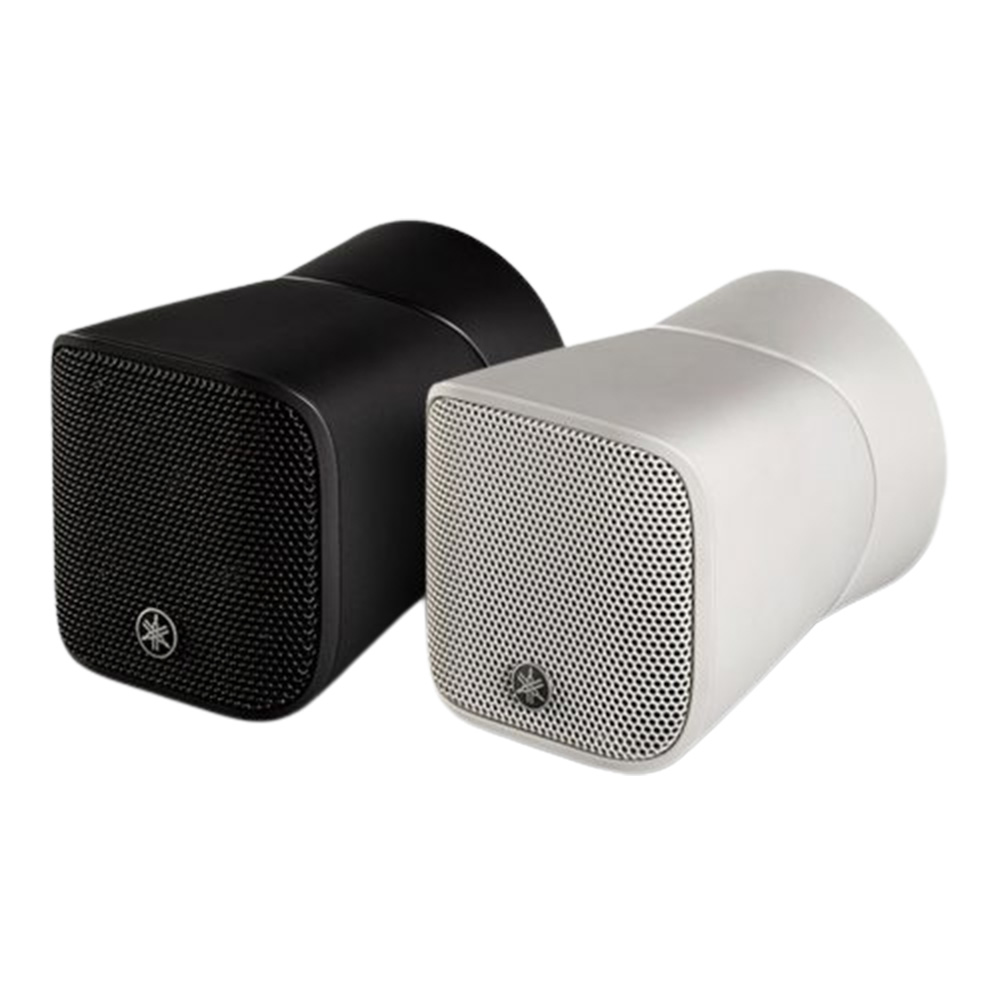

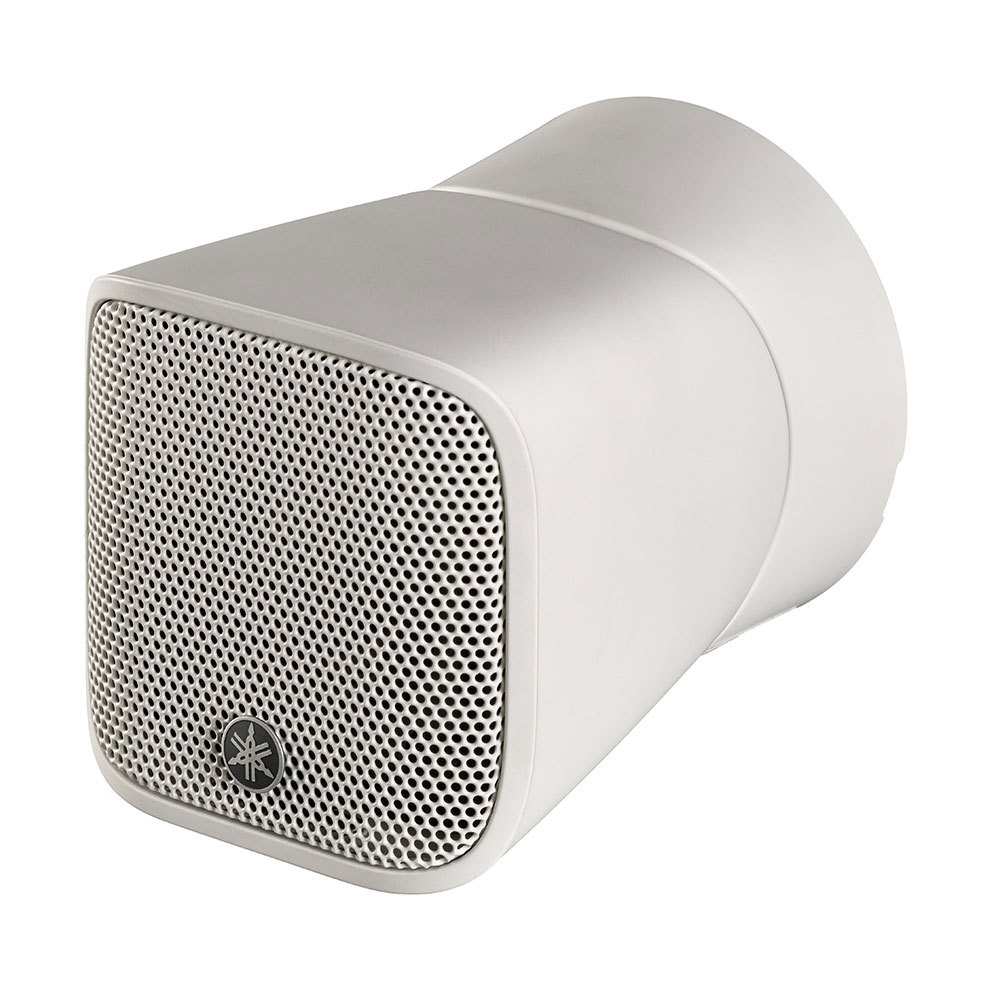

FinishVXS1MLB: Black (approximate value: Munsell N3), VXS1MLW: White (approximate value: Munsell N9)
DimensionsW62mm (2.4″) *3
H62mm (2.4″) *3
D82mm (3.2″) *3
Net weight0.17 kg (0.37 lbs) *3

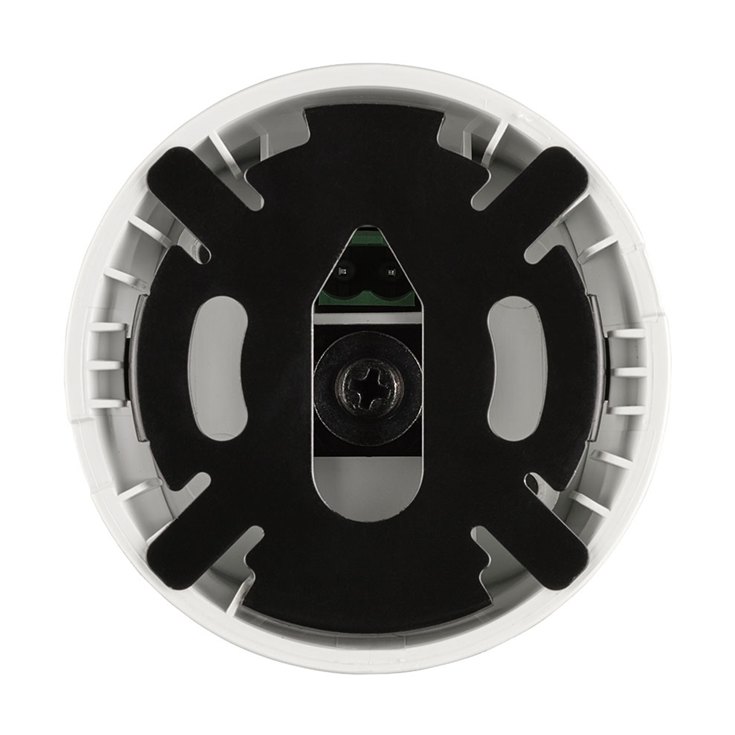

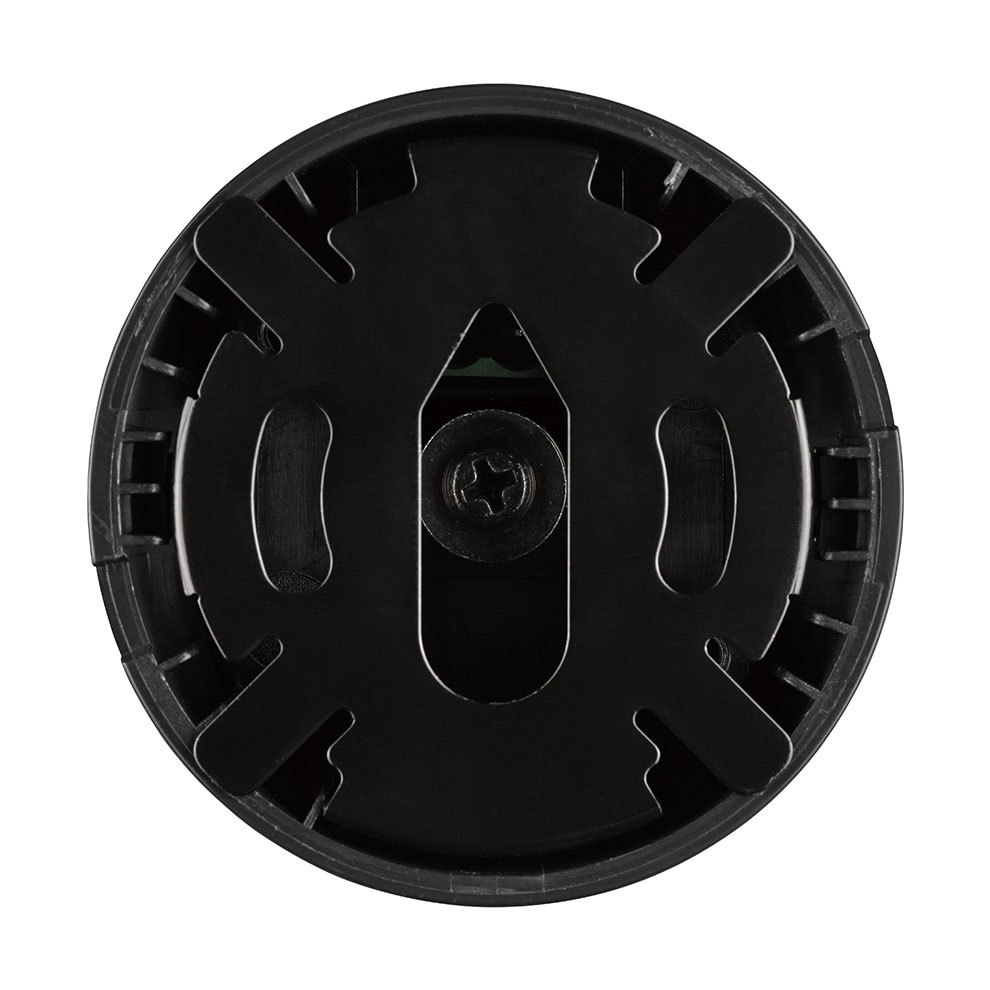

AccessoriesWall/Ceiling Bracket
PackagingPackaged each
CertificateNFPA70, CE, RoHS
OptionsCMA1MB / CMA1MW: Ceiling Mount Adapter, RMA1MB: Rail Mount Adapter
