Stealth Acoustics Invisible Speakers LR6G

Stealth Acoustics Invisible Speakers LR6G

Full Range, 2-Way Invisible In-Wall Or In-Ceiling Speaker

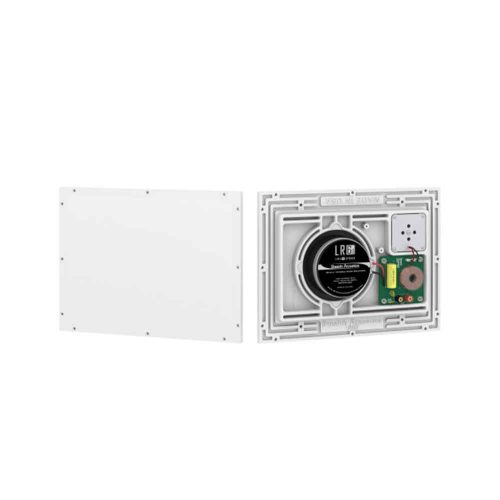

The Stealth Acoustics model LR6G is a 2-way, full-range speaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.

Description



RECOMMENDED USES

Home Theater / Surround Sound
High End Multi-Room Audio Systems
Foreground Music
Background Music
Voice Paging
Sound Reinforcement

Frequency Response:

45Hz to 20kHz

Power Capacity:

100 watts RMS

50 watts minimum
recommended power



Protection:

Two independent self-resetting
devices (low and high frequency)

Sensitivity:

83 dB (1 watt / 1 meter)



System Impedance:

8Ω nominal

Driver Components:

High frequency:

1” (25 mm) neodymium motor



Low-frequency:

1.5” (38 mm) voice coil, 6.5” (165 mm) woofer

Ceramic 20 oz. (622 gr) magnet

Polar Dispersion:

170 degrees vertical and horizontal

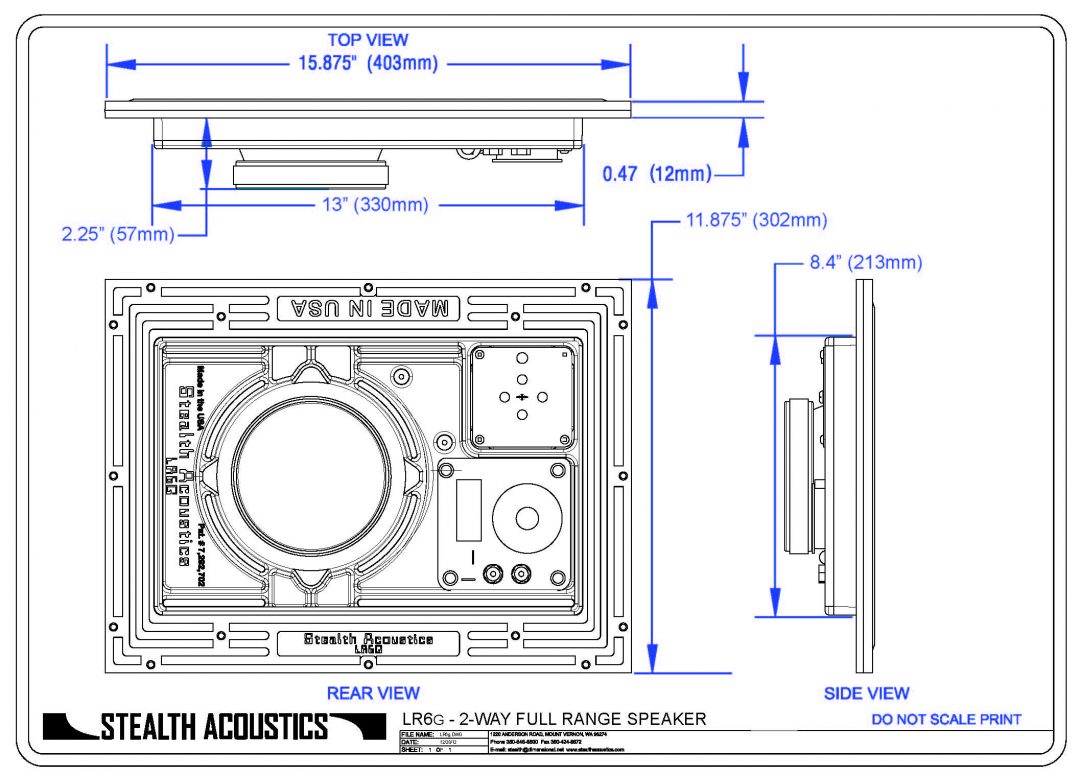

Dimensions:

Width: 15-7/8” (403 mm)

Height: 11-7/8” (302 mm)



Mounting Depth:

2-1/4” (58 mm)

Product Weight:

8.7 lbs. (3.9 kg) each

Shipping Weight:

21 lbs. (9.5 kg) per pair

13 lbs. (5.9 kg) per single

Included Accessories:

Mounting shims

Shim Tape

Mounting screws

Terminal wrench
