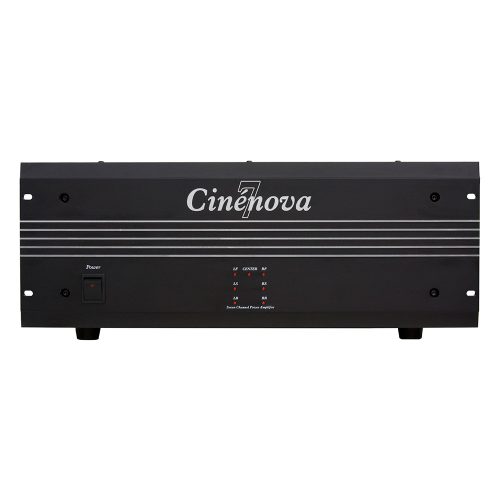

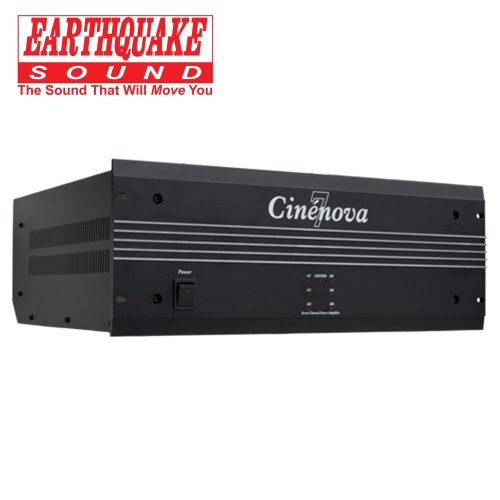

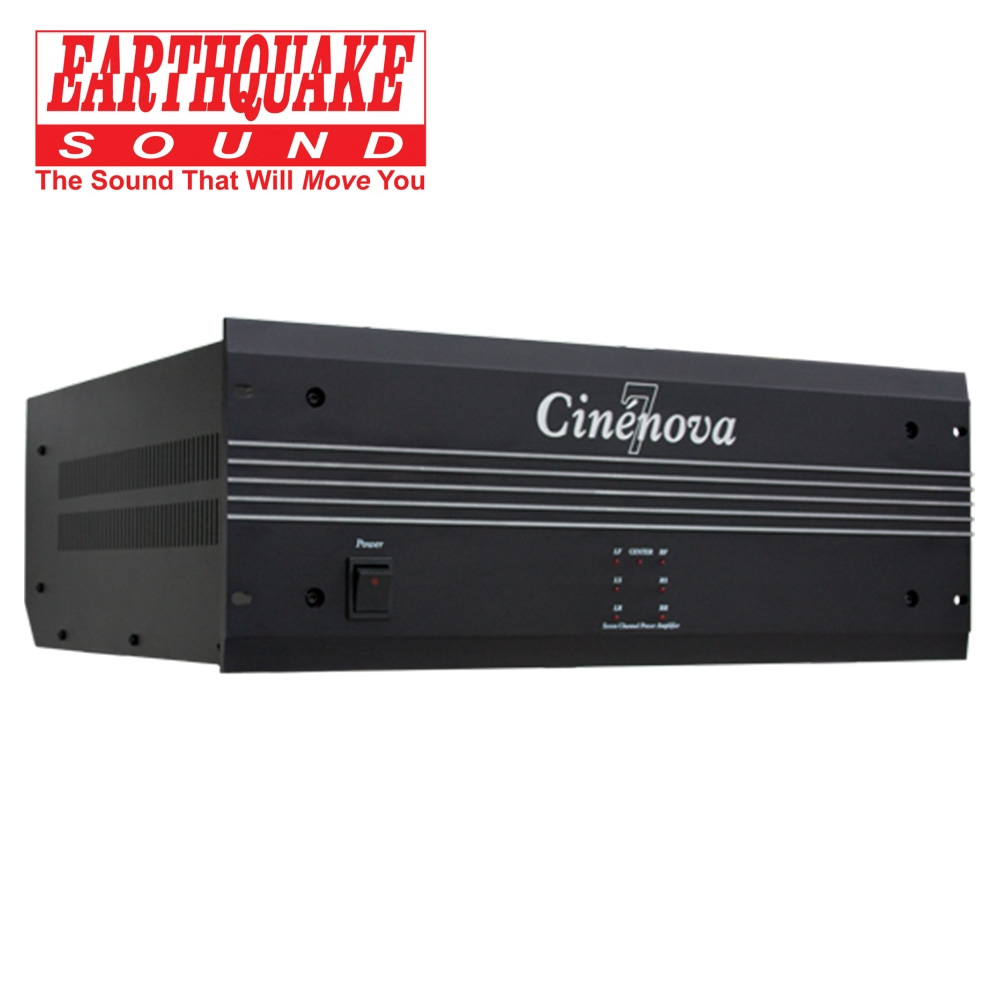

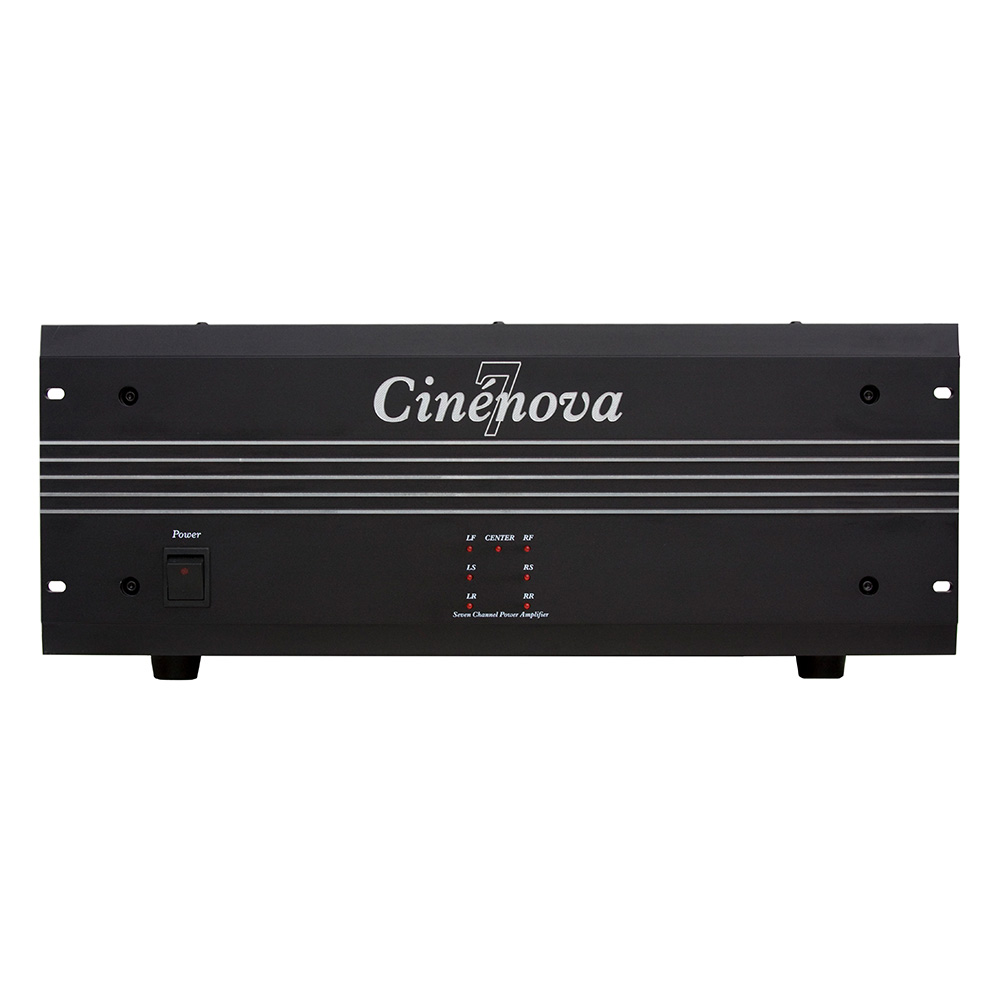

Amplifier Cinenova 7

The Cinénova name represents the pinnacle of amplification regardless of price. The Cinénova design concept has been a tempered blend of traditional high-end virtues combined with innovative and novel circuitry design.

It employs 8 massive output transistors per channel ensuring that even the most demanding speakers are held in an iron grip and any soundtrack is reproduced with dynamic precision and articulation.

Since its inception, the Cinénova design concept has been a tempered blend of traditional high-end virtues combined with innovative and novel circuitry design. Produced using in-house proprietary manufacturing techniques, his tradition lives on in the new Cinénova 7 with a completely monaural design and enhanced class AB operation. The result is industry leading efficiency making the Cinénova 7 a true green amplifier.

  • Ultimate sound quality
  • Low distortion
  • Monaural design

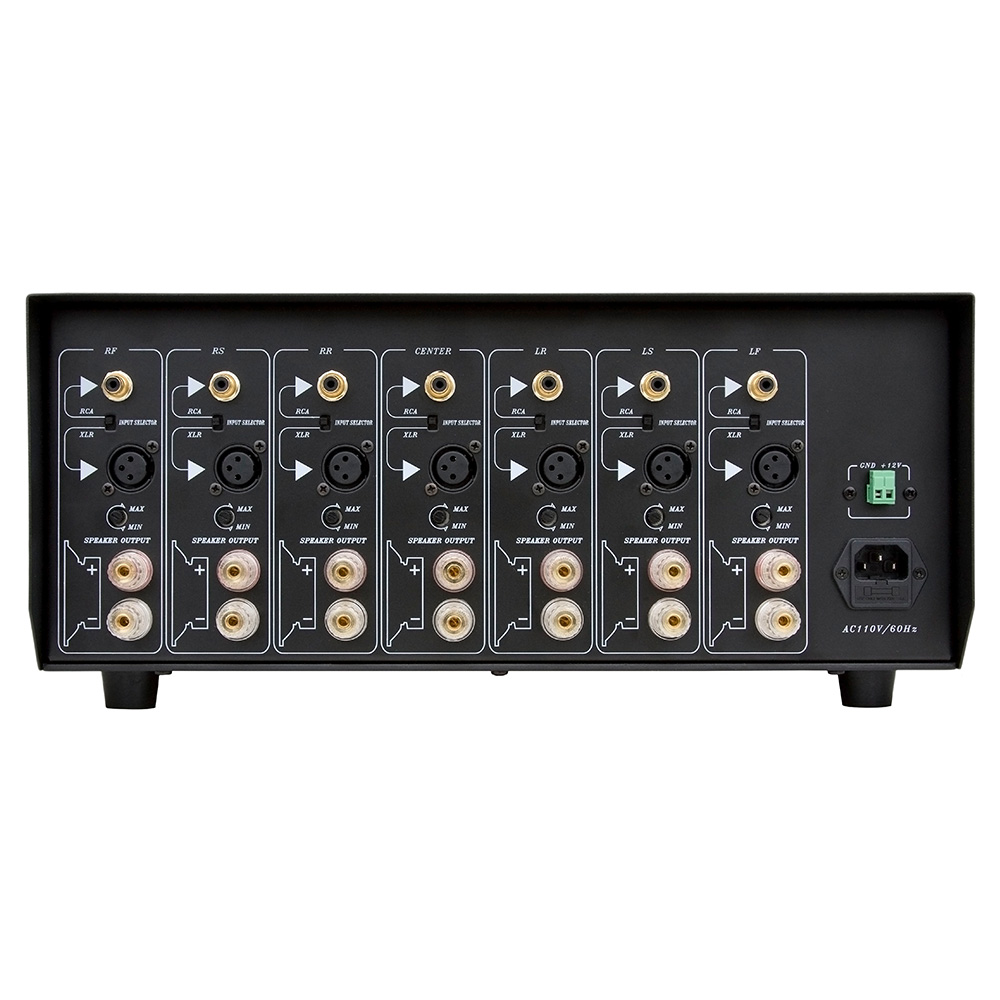

  • Fully balanced XLR inputs per channel
  • 12VDC trigger detects an incoming signal and will automatically power on the amplifier
  • Fused operation indicators

Description

Number of Channels7
Power Rating Per Channel (All Channels Driven)(8-ohm load) Rated: 150 WRMS
(4-ohm load) Rated: 250 WRMS
(2-ohm load) Rated: 300 WRMS
Output Load ImpedanceSafe with all loads from 2-Ohm to 16-Ohm
Input ImpedanceRCA: 28-kOhms
XLR: 48-kOhms
Input Sensitivity0.4 VAC – 6 VAC
The input selector gain set is based on your processor output voltage
Voltage Gain (Av)42V Gain Relative to 1W
Frequency ResponseUp to 30kHz ±0.1dB
Crossover Filter (LPF/HPF)N/A
Total Harmonic Distortion + Noise0.003% at 1W
S/N Ratio (A-Weighted)Greater than -121 dB
Cross Talk / Channel SeparationGreater than -110 dB from 17Hz to 40kHz
Slew Rate60V/microsecond
Damping Factor600 at 8-Ohm
300 at 4-Ohm
DC Output Offset0.004
Power Requirement120 VAC/240 VAC Factory Pre-set
Dimensions (W x H x D)432 x 175 x 413mm (17″ x 6.88″ x 16.25″)
Weight36.3 kg (80 lbs)
