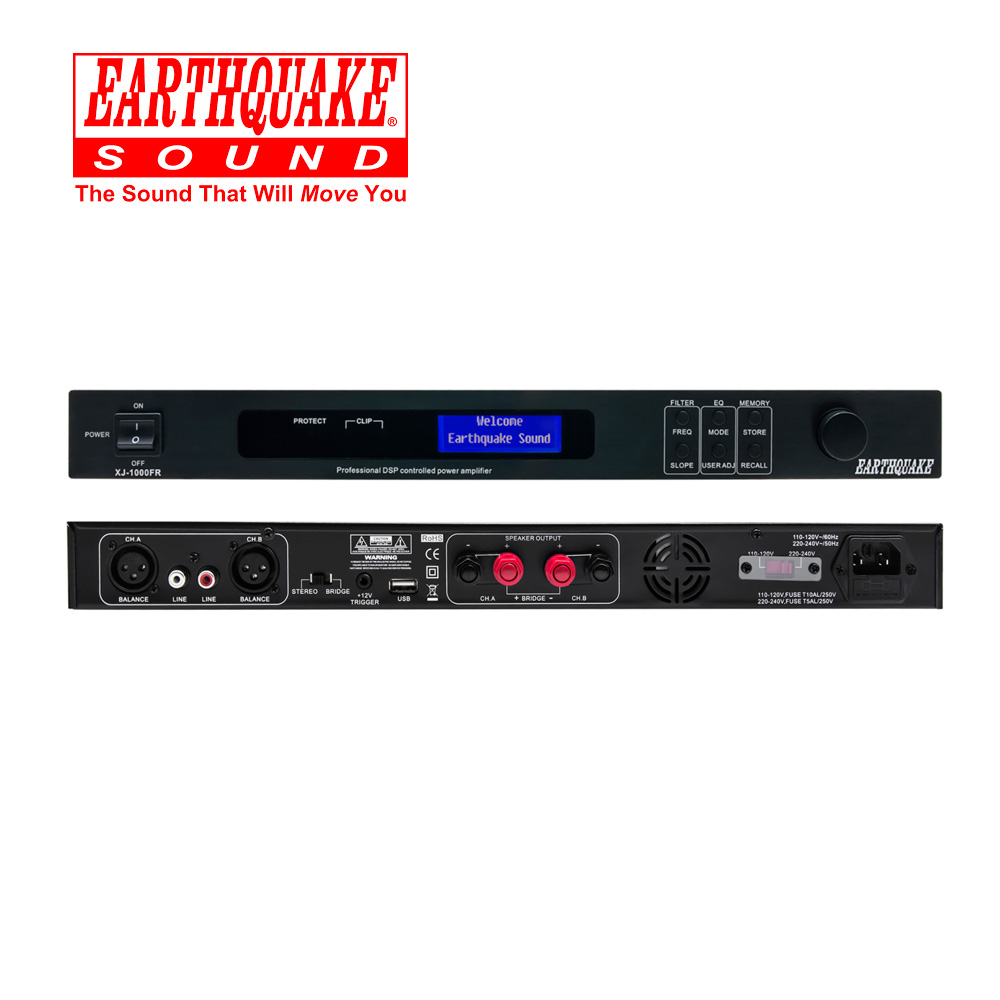

Amplifier XJ-1000FR

Earthquake’s XJ-1000FR is a high fidelity DSP (digital signal processing)professional amplifier. Equally suited for home and professional use, the XJ-1000FR is ideal for full range stereo reproduction and a variety of other home and studio applications.

Versatile & loaded with features, the XJ-1000FR offers users six preset equalizers: flat, music, movie, dynamic, impact, and a user mode. In user mode, a 30-band equalizer is available and programmable for ultimate sound customization. There are 4 memory storage modes that can be used to store and recall the DSP settings.

LPF (low pass filter) and HPF (high pass filter) can be set from 50Hz to 4kHz. Built-in Left / Right RCA Inputs and Left / Right XLR Balanced Inputs accommodate for a wide range of input signals; thus adding to the versatility of the XJ-1000FR.

Description

Digital Signal Processing

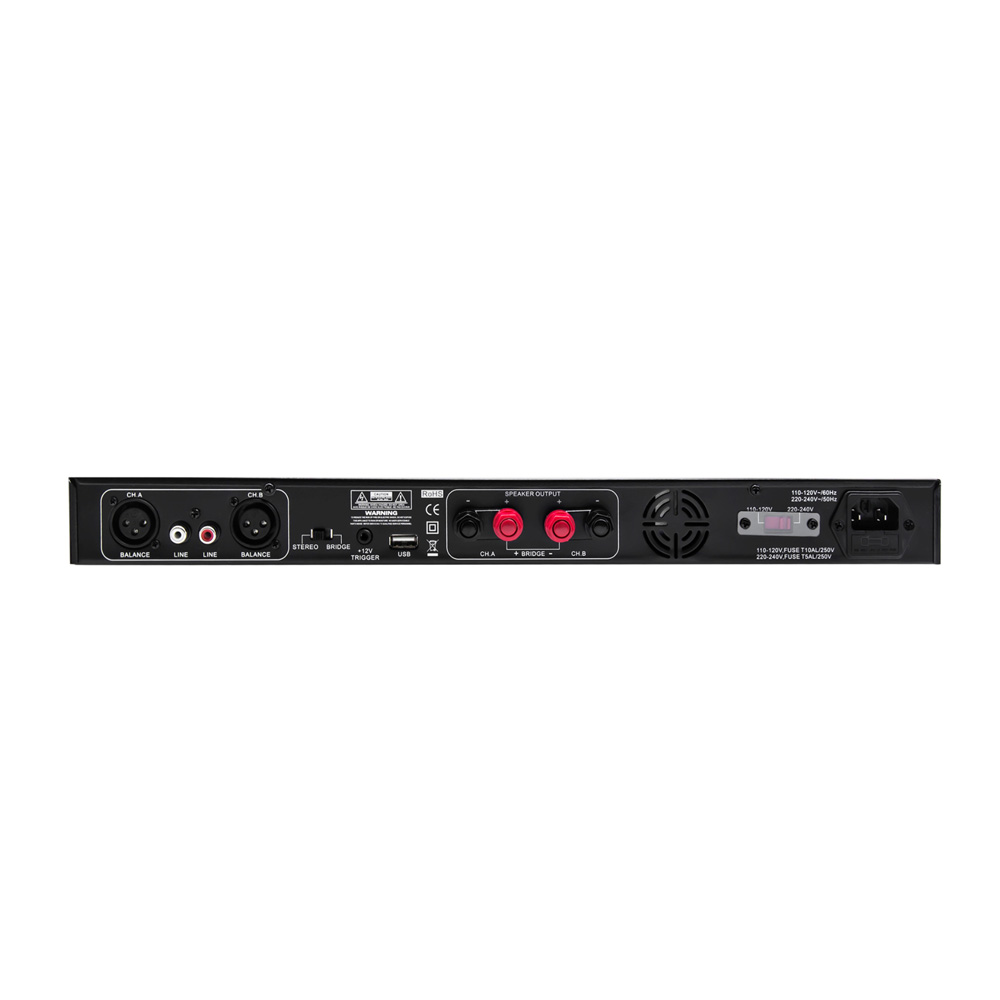

Left / Right RCA Inputs
Left / Right XLR Balanced Inputs
Stereo / Bridged Switch
DRCDC (Dynamic Rail Control Drive Circuitry)
External Trigger Input
USB Port
MAC & PC compatible
Detachable Rack Ears
Not suitable for powering tactile transducers
Output Power:1 x 1400W IHF (4-Ohms Mono)
1 x 1000W IHF (8-Ohms Mono)
2 x 700W IHF (2-Ohms stereo)
2 x 500W IHF (4-Ohms stereo)
2 x 300W IHF (8-ohms stereo)
1 x 1000 WRMS (4-Ohms Mono)
1 x 600 WRMS (8-Ohms Mono)
2 x 500 WRMS (2-Ohms stereo)
2 x 300 WRMS (4-Ohms stereo)
2 x 150 WRMS (8-ohms stereo)
Load Impedance2 Ohms or greater
Frequency Response10Hz-24kHz
Total Harmonic Distortion<0.02%
S/N Ratio112dB (balanced) @ rated power
108dB (unbalanced) @ rated power
Damping factorabove 1500 @ 200Hz 4-Ohm
Dimensions (W x H x D)432 x 45 x 337mm (17" x 1-3/4” x 13-1/4”)
