Amplifiers IQ-1500

The amplifier is designed to meet the highest standards of performance and sound quality. In addition Earthquake Sound’s IQ certification and patented Class “J” circuitry ensure that the amplifier meets and exceeds all industry standards. The new amplifiers include many unique technologies that allow it to deliver “World Class” performance, even under extreme operating conditions.

The is a ruggedly constructed high quality professional amplifier. The Digital feedback class “J” Circuitry, allows the amplifier to produce massive amounts of power with minimal heat production. This patented circuitry delivers high efficiency in the range of 99%- The typical class AB amplifier runs at about 40 to 50%.

The IQ-1500 offers a room correction technique that surpasses that of all previous attempts. The intelligent “Back EMF” drive circuit interacts with the subwoofer design and memorizes system tuning frequencies and system type. The information which is stored in the microprocessor turns on a preset group delay curve that serves as a correction reference. This information deals only with time correction that moves the peaks and the dips in a room to a flat. Once that is achieved the user will resort to the final correction- EQ the room. For that reason Earthquake’s is truly an intelligent system. 20Hz, 30Hz and 40Hz frequencies can be cut or boosted by a whopping 6dB. These corrections help in producing wider range of listening position that is unprecedented for the room. Please note that boosting the response at 20Hz is very demanding for a subwoofer. Consult with your subwoofer maker, and determine if their subwoofer is designed to take a boost at such low frequencies.

Description

Channel and power status LEDs
DC turn ON/OFF
110V/220V AC selector
Earthquake Class J circuitry
XLR/RCA and high level input connections
20Hz, 30Hz, and 40Hz room equalization with 12dB range and boost
Adjustable 24dB lowpass filter from 40Hz–200Hz with bypass
25Hz, 12dB/Oct switchable subsonic filter
Full and advanced room correction

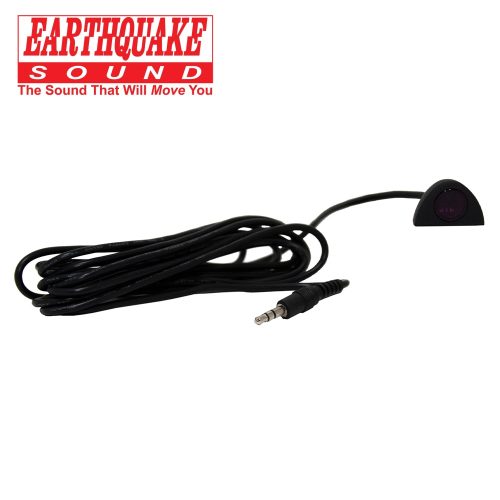

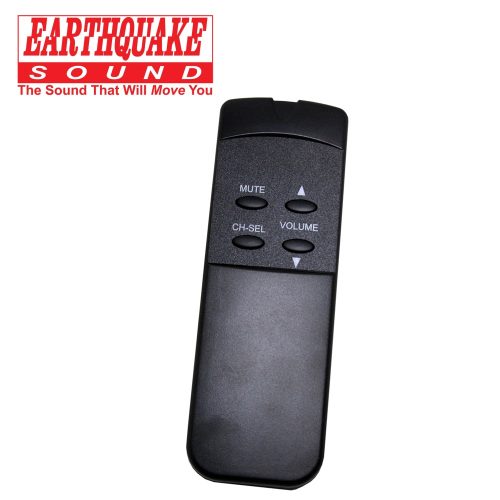

IR input and remote control with volume control
Auto signal sensing on/off switch
Protection CircuitryShort circuit
Open circuit
RF burnout
Over temp
Turn on/off transient protection
DC protection
Limiter circuitry
Phase shift
Phase Delay

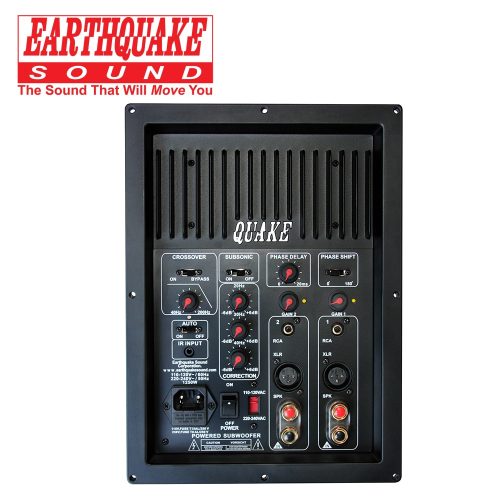

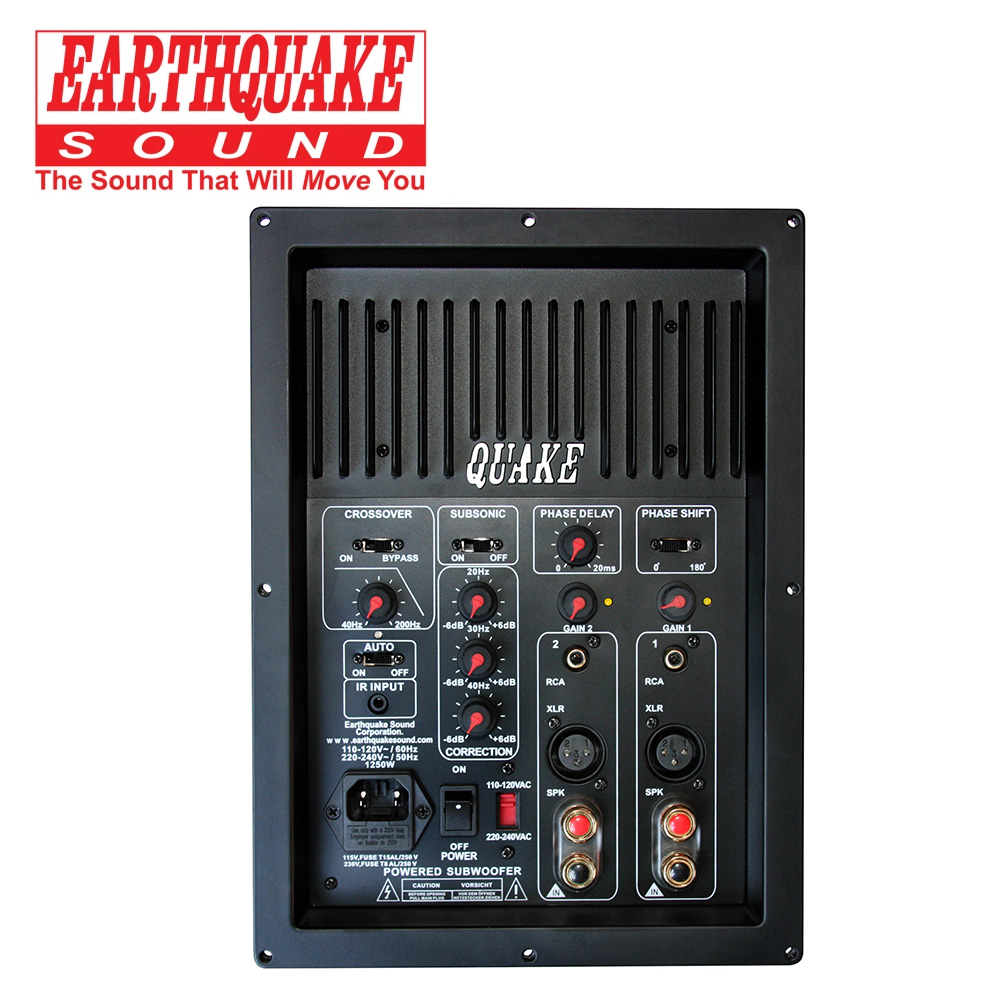

Custom flush mount design
Dual gains internally mixed
Power Output:1 x 1500 watts RMS @ 2 Ohms Mono (1% distortion)
1 x 1100 watts RMS @ 4 Ohms Mono (1% distortion)
1 x 700 watts RMS @ 8 Ohms Mono ( 1% distortion)
3000W dynamic effect pinknoise
Frequency Response10–2kHz
Load Impedance2 Ohm or greater
Total Harmonic Distortion<0.08% (1W/4)
Slew Rate55V/microsecond
S/N Ratio> 106dB (balanced) @ rated power
105dB (unbalanced) @ rated power
Dimensions
Overall Dimensions296 x 216 x 97.536mm (11.65″ x 8.5″ x 3.84″)
Plate thickness5mm (0.19″)
Cut-out Hole270 x 185mm (10.62″ x 7.28″ )

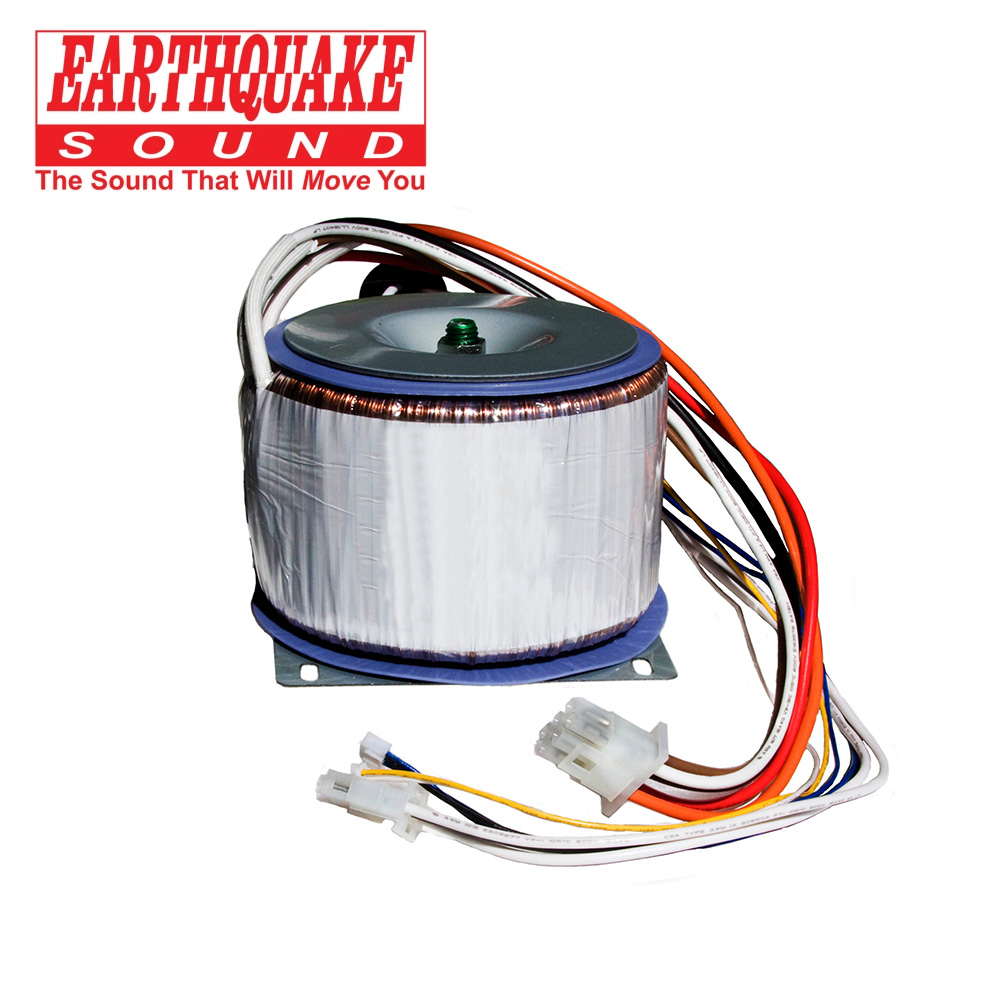

Transformer95 x 120 x 120mm (3.74" x 4.72" x 4.72")
Weight12.2 kg (26.04 lbs)
