Architettura Sonora Medium Cylinder

Proportions and performance of Medium Cylinder, make it the perfect solution, when integration and harmony with landscape and architecture is important as much as high quality of sound

Description

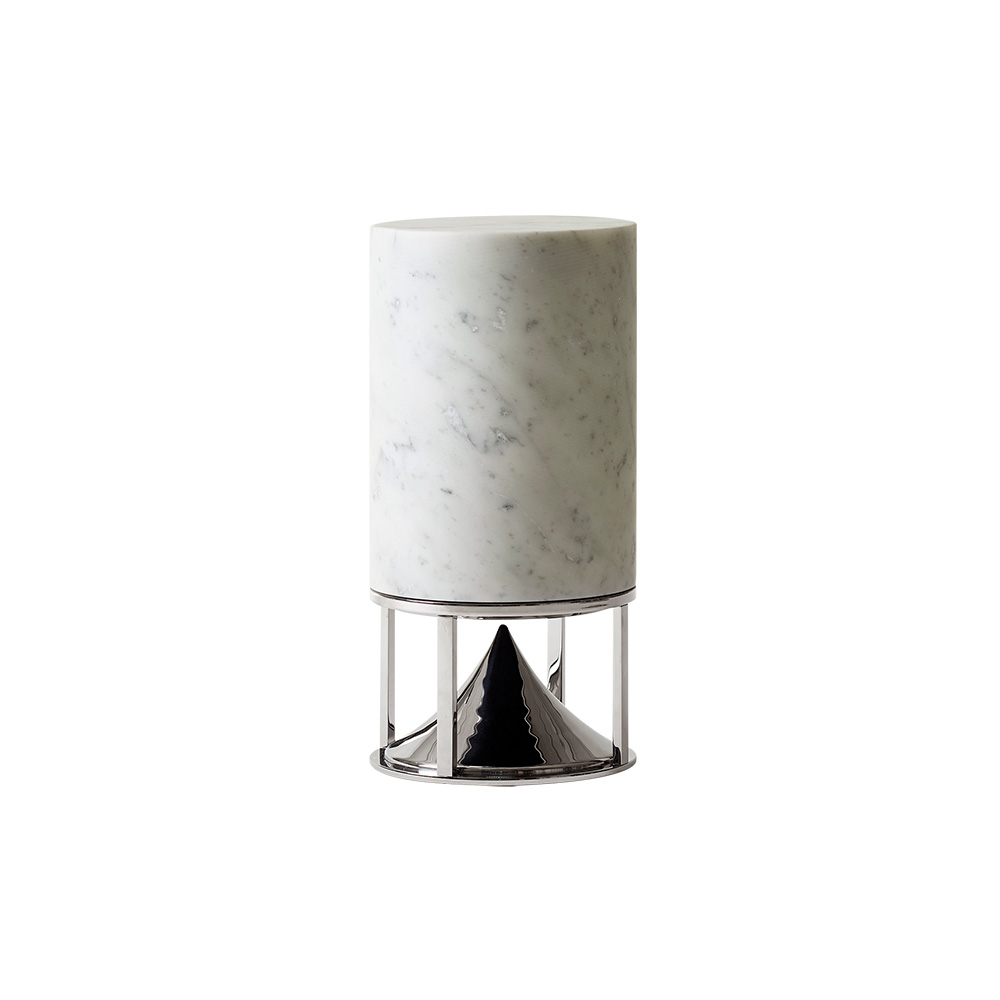

Medium Cylinder

Proportions and performance of Medium Cylinder, make it the perfect solution, when integration and harmony with landscape and architecture is important as much as high quality of sound

LIGHTING MOOD SOLUTIONS

Light option, consisting of a Led Strip in a special notch around the loudspeaker area.

The Light spreads in the lower part of the product, due to the reflection of the deflector.

Lighting Mood designed by Giulia Archimede.



Lamp Specs

Light source: LED module: 1x7W

Rated output: 7W

Led colour temperature: 3000K

Power supply: 90-260V

Version Full range Subwoofer without crossoverSubwoofer with crossover on board
Speaker Type6" coaxial (dual concentric)6" woofer 6" woofer
Nominal Impedance
Crossover2 ways on board Recommended DSP setting:
HP=35Hz; 12dB/oct
LP=120Hz; 12dB/oct
LP=150Hz; 12dB/oct
Frequency Range 55-20,000Hz _-6dB)50-150Hz (-6dB)
(recommended DSP setting)
50-150Hz (-6dB)
Sensitivity (1W - 1m)89dB89dB89dB
Speaker Peak Power300W300W300W
Speaker RMS Power 150W150W150W
Lighting Mood OptionalOptionalOptional
High-z Board Optional
(voltage: 70-100V
Power: 30-60W)
Optional
(voltage: 70-100V
Power: 30-60W)
Optional
(voltage: 70-100V
Power: 30-60W)
Dimensions22 Ø x 45 cm
Weight21 Kg Concrete; 23 Kg Marble; 19 Kg S. Surface

Materials
