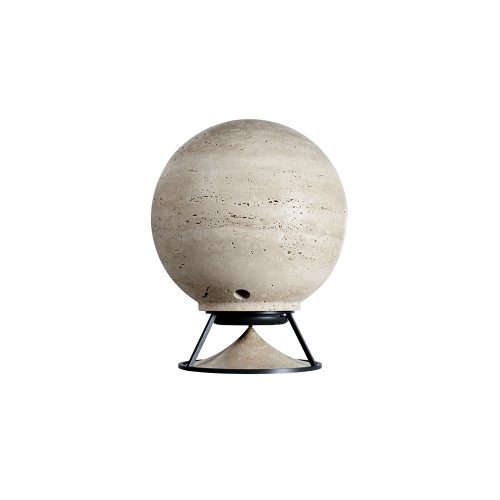

Architettura Sonora Sphere 470

Classic Lines

Sphere_470 is the ideal solution when higher performance and volumes are required.

Available in both full-range and sub version.

Description

Classic Lines

Sphere_470 is the ideal solution when higher performance and volumes are required.

Available in both full-range and sub version.

LIGHTING MOOD SOLUTION

Light option, consisting of a Led Strip in a special notch around the loudspeaker area.

The Light spreads in the lower part of the product, due to the reflection of the deflector.

Lighting Mood designed by Giulia Archimede.



Lamp Specs

Light source: LED module: 1x7W

Rated output: 7W

Led colour temperature: 3000 K

Power supply: 90-260V

Version Full range with crossover on board Subwoofer without crossover Subwoofer with crossover on board
Speaker Type6" coaxial (dual concentric) 6" woofer 6" woofer
Nominal Impedance
Crossover2 ways on board recommended DSP setting:
HP=35Hz 12dB/oct; LP=120Hz 12dB/oct
LP=150Hz 12dB/oct
Frequency Range 44-20,000Hz (-6dB)42-150Hz (-6dB)
(recommended DSP setting)
42-150Hz (-6dB)
Sensitivity (1W - 1m)89 dB89 dB89 dB
Speaker Peak Power300W300W300W
Speaker RMS Power 150W150W150W
Lighting Mood OptionalOptionalOptional
High-z Board OptionalOptionalOptional
Dimensions470 Ø x 603 mm
Weight52 Kg

Materials
