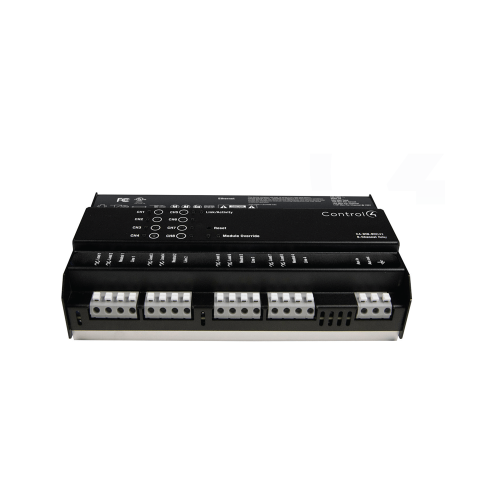

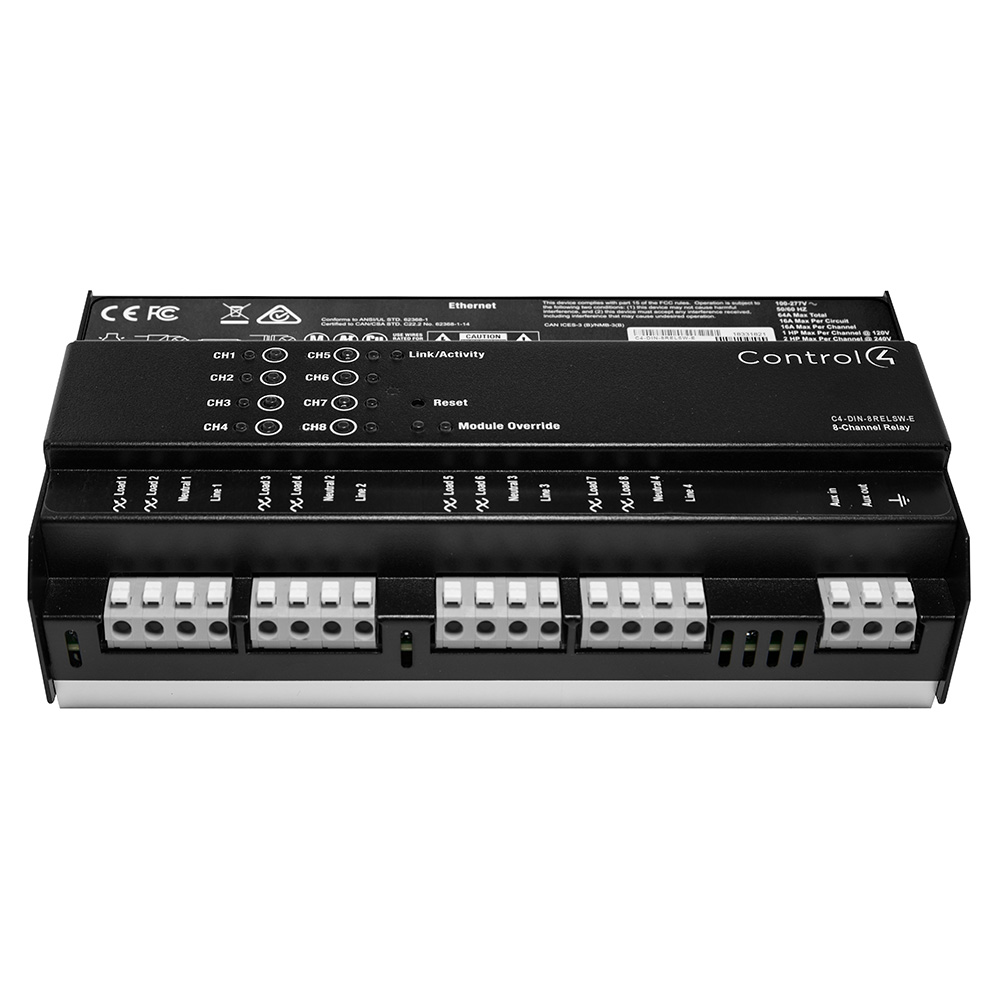

The Control4 DIN-Rail 8-Channel Relay Switch controls up to eight high in-rush loads from one module in the
Control4 system. Each channel supports a variety of load types, including incandescent, halogen, electronic low-voltage transformers, magnetic low-voltage transformers, fluorescents, compact fluorescents, LEDs, and motors.

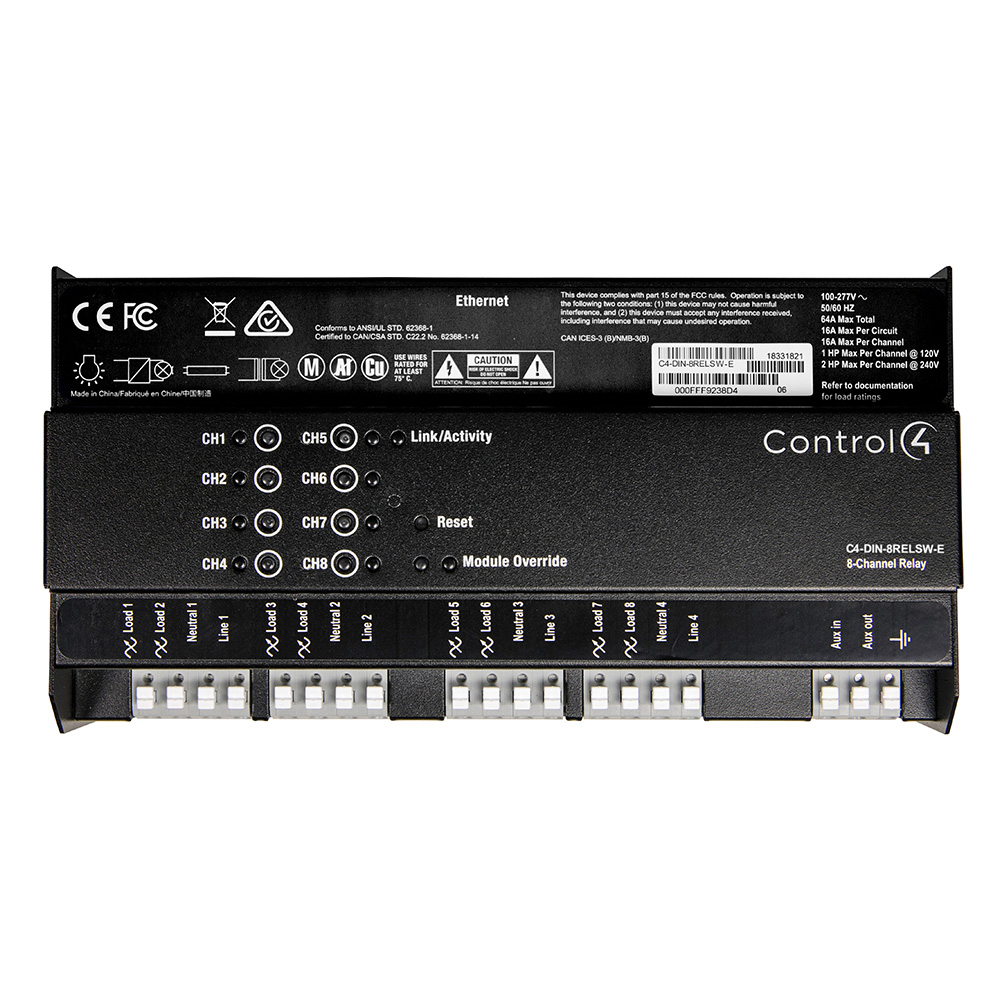

• Controls up to eight high in-rush loads
• Channel buttons allow for toggling a load on/off
• Channel status LEDs indicate whether a load is on or off
• Module Override button allows toggling between the module override scene and all channels off or
setting the module override scene to to the current channel’s on/off settings
• Module Status LED indicates if module power is on with normal operation, off, or in thermal overload
• Link/Activity LED indicates system link status, communication activity, or firmware update status
• Reset button can be used for restoring factory defaults or network configuration settings
• Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights
before the control system is installed or in case the controller malfunctions
• Module can be installed in either a Contro4 5- or into a 2-slot panel or into a third-party DIN rail panel

Model numberC4-DIN-8RELSW-E
Power requirements100-277V AC, 50/60 Hz
240V AC, 50 Hz
Line feeds (circuits)4
Power consumption3.5W
Supported load types Incandescent, halogen, electronic low-voltage transformers (ELV), magnetic lowvoltage transformers (MLV), fluorescents, compact fluorescents, LEDs, motors
Control communcationsEthernet

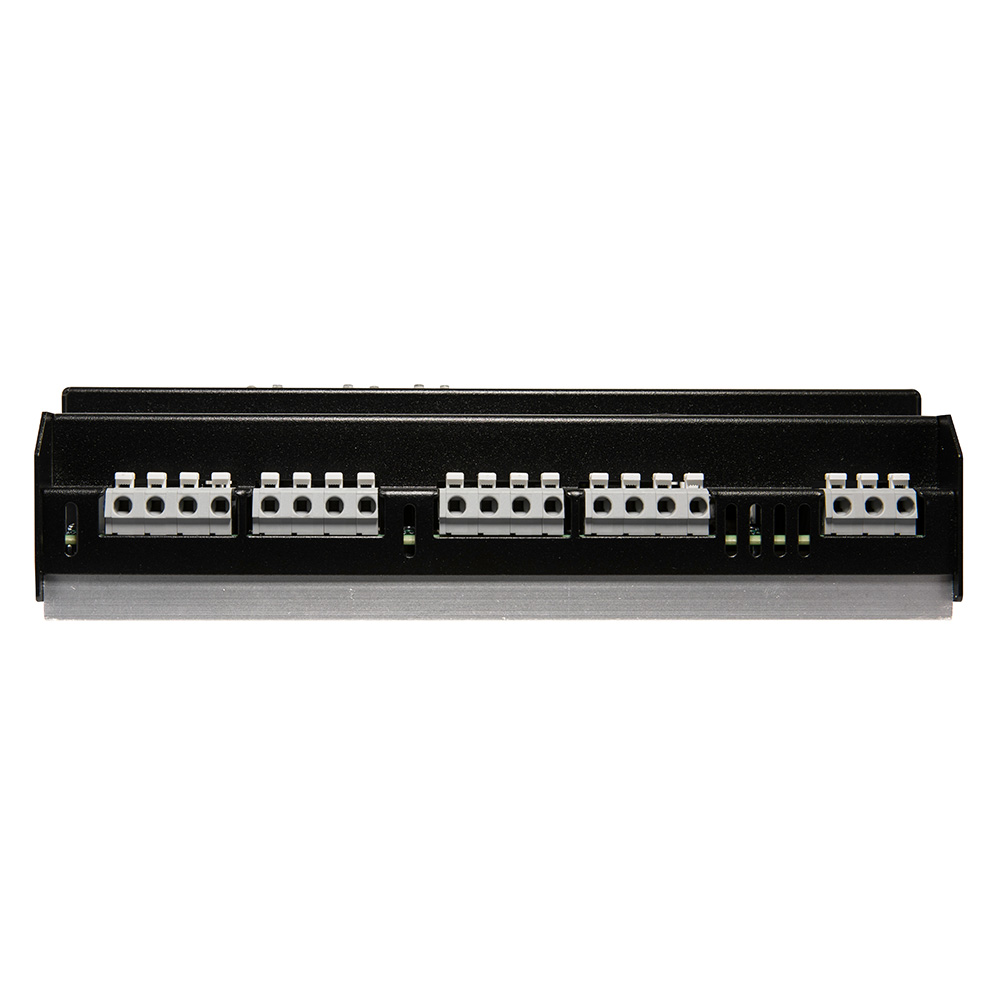

Line-voltage push terminals19 (Line 1, Line 2, Line 3, Line 4, Neutral 1, Neutral 2,
Neutral 3, Neutral 4, Earth Ground, Loads 1-8, Aux
In, Aux Out)
Recommended wire gaugeOne 26 AWG to 12 AWG
(0.12 mm2 to 2.5 mm2) per terminal

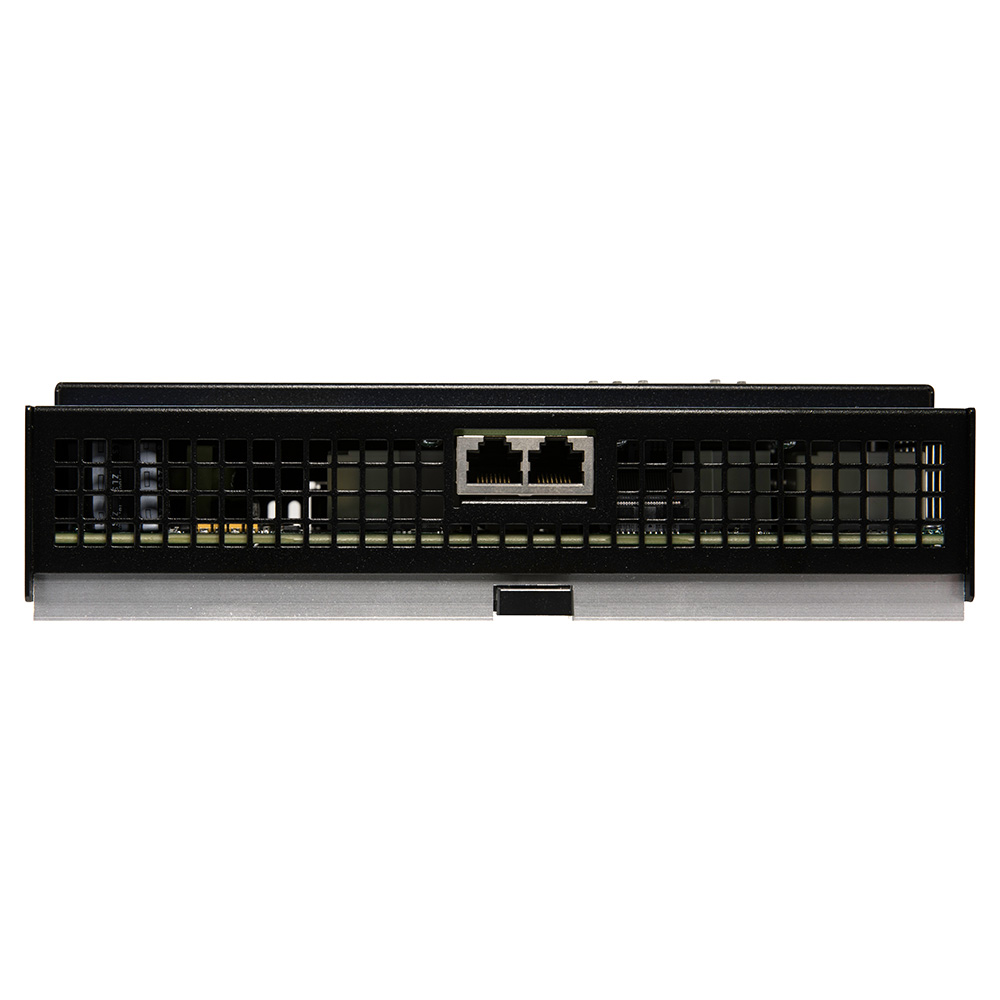

RJ-45 ports(2) 1 Ethernet in, 1 Ethernet passthrough
Operational temperature0 to 40 ˚C (32 to 104 ˚F)
Humidity5% to 95% non-condensing
Storage-20 to 70 ˚C (-4 to 158 ˚F)
Heat dissipation10 BTU/hr @120VAC
Dimensions H × W × D219 × 115 × 57 mm (8.6 × 4.5 × 2.2 in.)
DIN module width12M
Weight1.3 kg (2.9 lb.)
Shipping weight1.4 kg (3.3 lb.)
