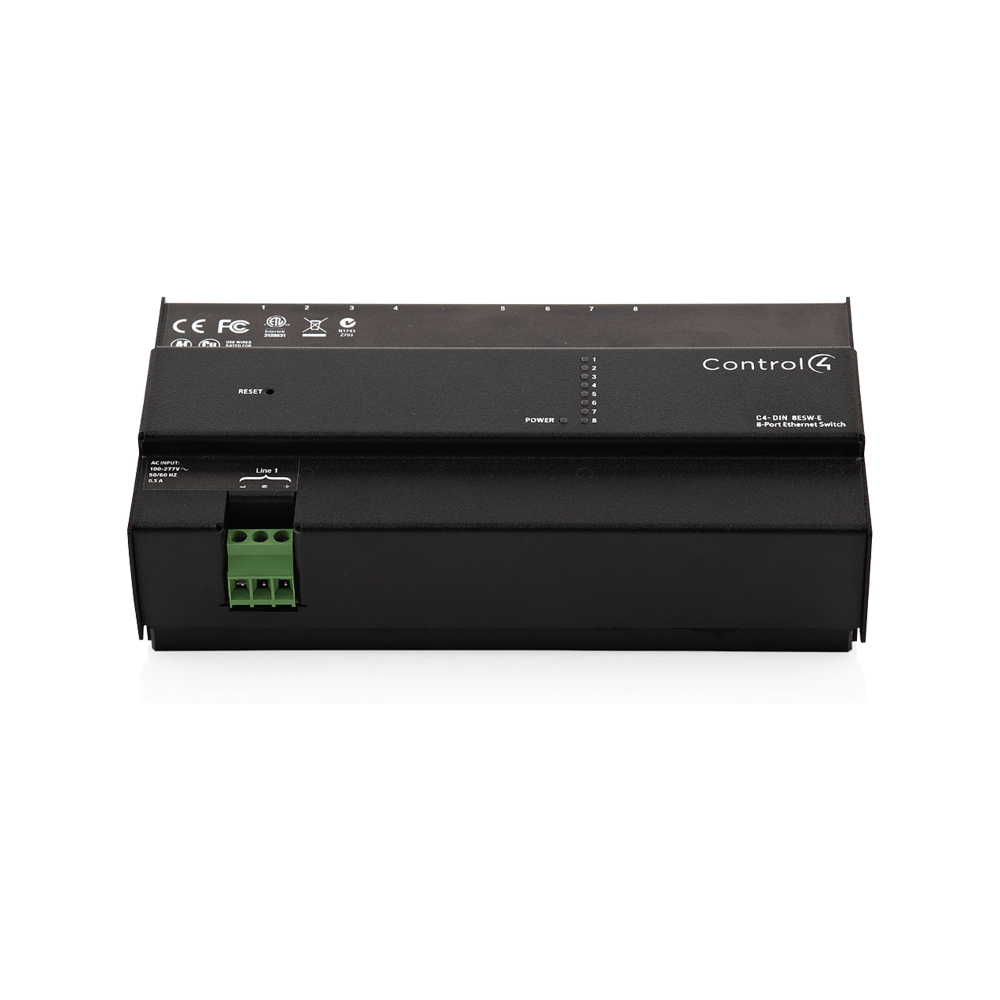

The Control4 8-Port Ethernet Switch is a standard 8-port 10/100 switch that allows a single Ethernet CAT5e cable to be pulled into a lighting panel, and then distributed to up to seven other Control4 Centralized Lighting devices including Dimmer, Relay, and Bus Ethernet Bridge Modules within the panel.



• Distributes an Ethernet connection up to seven other Control4 Centralized Lighting devices.
• Link/Activity LEDs indicate system link status and communication activity.
• Power LED for power status.
• Reset button for rebooting the Ethernet switch without removing power.
• Line input for power.
• Can be installed in either a Control4 5-slot or 2-slot panel or a third-party DIN rail panel.

Model numberC4-DIN-8ESW-E
Power requirements110V-277VAC, 50/60 Hz
Operating temperature32˚F to 104˚F (0˚C to 40˚C)
Heat dissipation 7 BTU/hr @120VAC
Power consumption2W
Communications10/100 Ethernet
ConnectorsThree screw terminals (Line, Neutral, Ground)
One 26 AWG to 12 AWG (0.12 mm2 - 4 mm2) per terminal
Eight RJ-45 Ethernet
Humidity5% - 95% non-condensing
Storage-4˚F ~ 158˚F (-20˚C ~ 70˚C)
Dimensions (H×W×D)8.5 × 4.3 × 2.3 in. (215 × 109 × 57 mm)
DIN module width12M
Weight2.3 lbs. (1.04 kg)
Shipping weight2.8 lbs. (1.27 kg)
