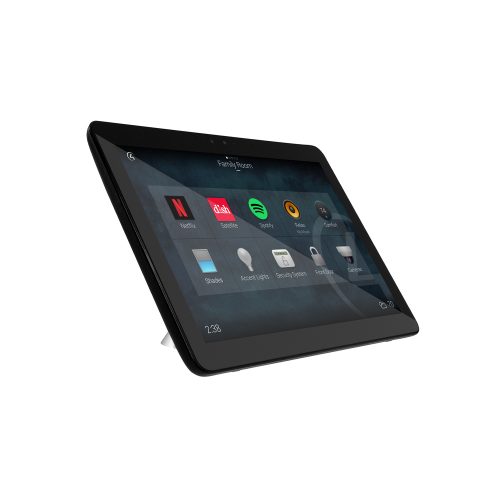

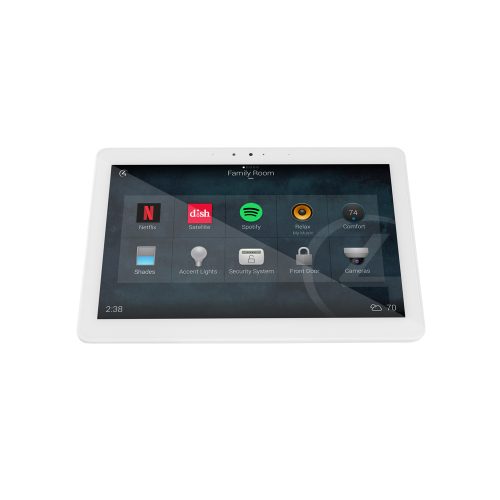

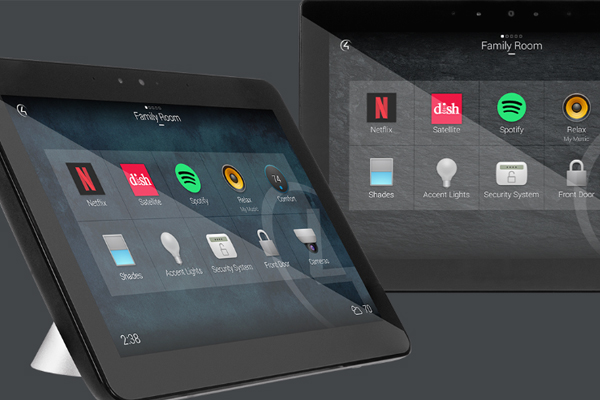

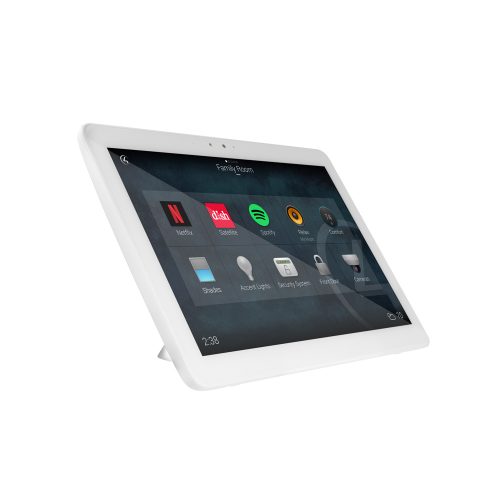

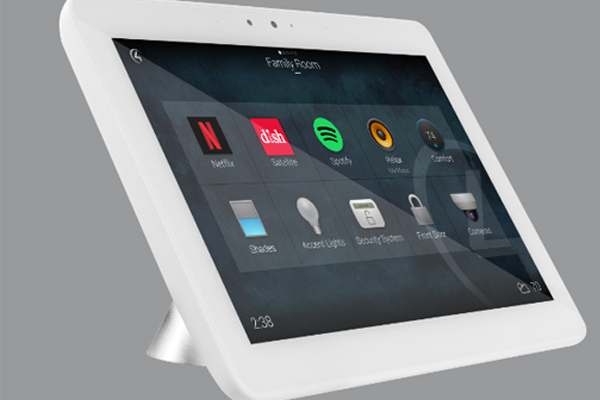

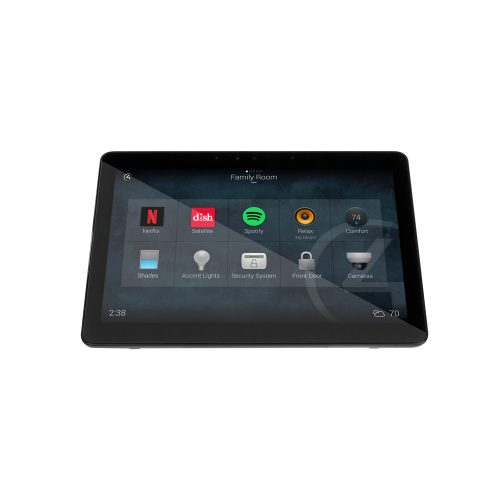

Control4 T4 Series 10″ Tabletop Touchscreen Black/White

Give your customers the ultimate smart home experience with the Control4 T4 Touchscreen. As a direct replacement for the T3 Touchscreen, T4 delivers a high-resolution screen, dual microphones, and more powerful speakers than the T3. With its elevated features, T4 is the perfect companion for the new Control4 Chime Video Doorbell, OS 3, and Intercom Anywhere.

Tabletop touchscreens give your customers a point of complete control that is always on and always available, perfect for nightstands, boardroom tables, countertops or the home office.

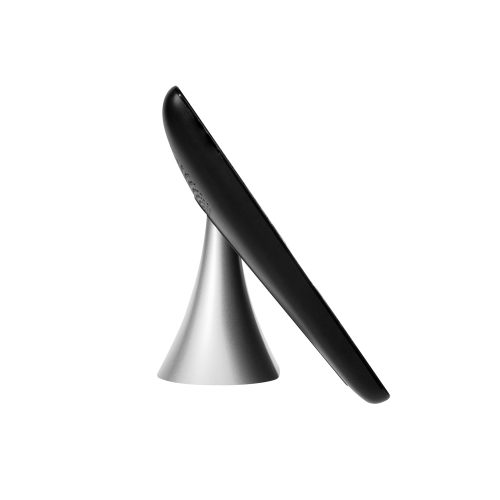

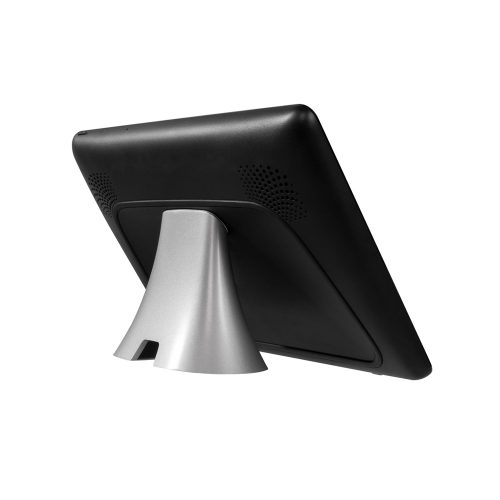

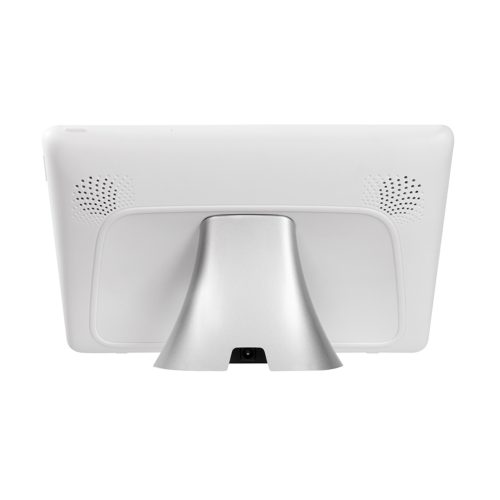

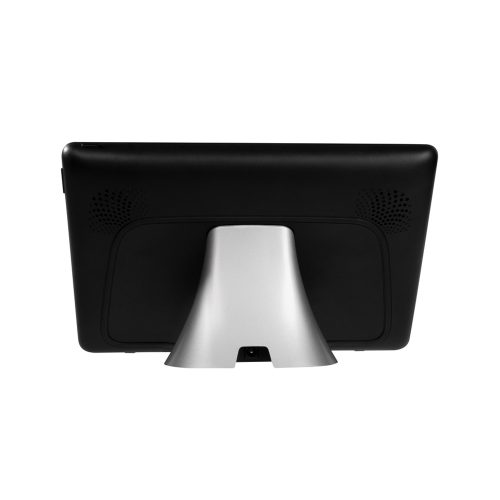

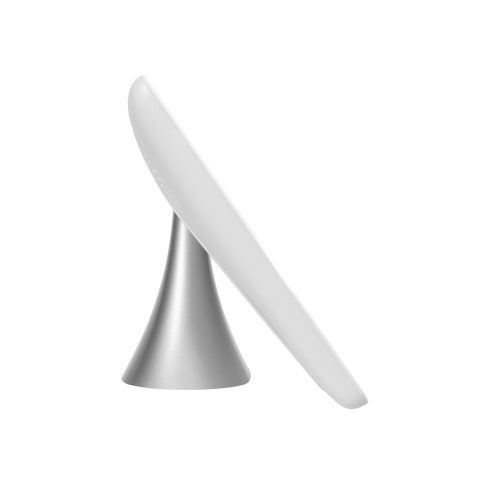

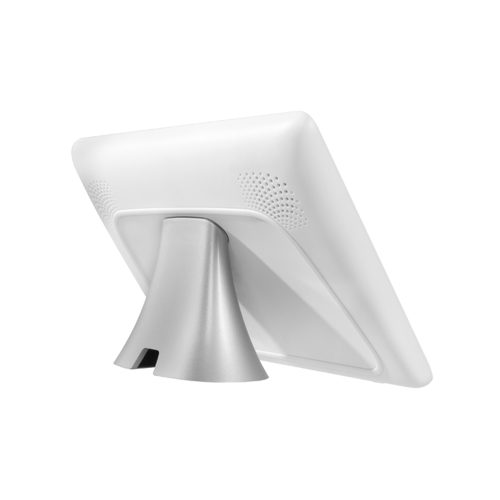

The T4 Tabletop’s sturdy docking stand uses powerful magnets to ensure a proper charge connection every time. An optional mount kit secures the touchscreen to the the docking stand for when a more permanent location is needed.

  • 8” and 10” model
  • Available in black and white finishes
  • Screen Resolution: 1920 x 1200
  • Dual microphones and larger speakers
  • An elevated experience for Chime, OS 3, and Intercom Anywhere
  • WiFi (2.4 GHz + 5 GHz)
  • High-strength magnets dock touchscreen to base

Comes in Black and White colours

Description

Control4 Touchscreens offer a complete view and dedicated control of your entire home. Unlike traditional touchscreens, you won't need to find and launch an app; control of your home is instantaneous. Conveniently manage lighting, security, music, televisions, temperature, shades, and more. Their bright, high-resolution screens, fast processors, advanced microphone array, and high-grade speakers are excellent for security cameras and video doorbells, as well as intercom from room to room, or from home to mobile device. Choose from 8” or 10” in glossy black or white, and tabletop or in-wall mounting options.

  • Delivers always-on, dedicated control over all the technology in your home.
  • Browse playlists with a simple swipe, display bold cover art images, and easily personalize your lighting experience.
  • HD video intercom and crystal-clear audio allows convenient communication from room to room or with visitors at the door.
  • Low-profile design and crisp, high-resolution picture.
  • You'll always know where to find it; mounted on the wall or placed on the charging stand.

Specifications
ModelT4 Series Touchscreens
Model numbers8" T4 In-Wall Touchscreen (C4-T4IW8-xx)
10" T4 In-Wall Touchscreen (C4-T4IW10-xx)
8" T4 Tabletop Touchscreen (C4-T4T8-xx) (one base included)
10" T4 Tabletop Touchscreen (C4-T4T10-xx) (one base included)
Accessories
C4-T4PMNTT4 Touchscreen Tabletop Permanent Mount Kit
C4-T4TBS8T4 Touchscreen Tabletop 8" Base
C4-T4TBS10T4 Touchscreen Tabletop 10" Base
Features
ScreenResolution: 1920 × 1200
Capacitive touch
Camera: 720p
Wireless network802.11b/g/n 2.4 GHz
802.11a/n/ac 5 GHz
Security: WEP, WPA/WPA2 PSK, 802.1x EAP, PEAP
Notes: (1) While technically the touchscreen can use 802.11b,
802.11b is not supported. (2) 802.11n is recommended for
best performance. Even with 802.11n, broadcasting to several
devices will degrade Video Intercom response time and
images. Broadcasting to additional devices will further degrade
performance. See “Wireless Network Limitations.”
Power supplyTabletop models: International power supply adapters included
Tabletop charging station connections: 5V DC power
In-wall: PoE (IEEE 802.3af) 13 W peak
Mechanical
Dimensions (W × H × D)Tabletop:
• 8" Touchscreen: 200 × 144 × 23 mm (7.9 × 5.7 × 0.9")
• 8" Charging station: 106 × 79 × 56 mm (4.17 × 3.11 × 2.21")
• 10" Touchscreen: 245 × 172 × 23 mm (9.65 × 6.77 × 0.9")
• 10" Charging station: 115 × 102 × 66 mm (4.53 × 4.02 × 2.60")
In-wall:
• 8" model: 202 × 142 × 15 mm (8.0 × 5.6 × 0.59")
• 10" model: 246 × 172 × 15 mm (9.69 × 6.77 × 0.59")
• Wall box: 68 × 104 × 81 mm (2.7 × 4.1 × 3.19")
(See planning template on back page for outline details)
• Power box: 127 × 119 × 45 mm (5.0 × 4.67 × 1.77")
WeightTabletop:
• 8" Touchscreen: 1.05 lb (0.47 kg)
• 8" Charging base: 1.4 lb (0.64 kg)
• 10" Touchscreen: 1.35 lb (0.60 kg)
• 10" Charging base: 1.05 lb (0.46 kg)
In-wall (with mid-box):
• 8" model: 0.41 kg (0.9 lb)
• 10" model: 0.68 kg (1.5 lb)
Environmental
Operating temperature0 to 40 ˚C (32 to 104 ˚F)
Storage temperature-20 to 70 ˚C (-4 to 158 ˚F)
