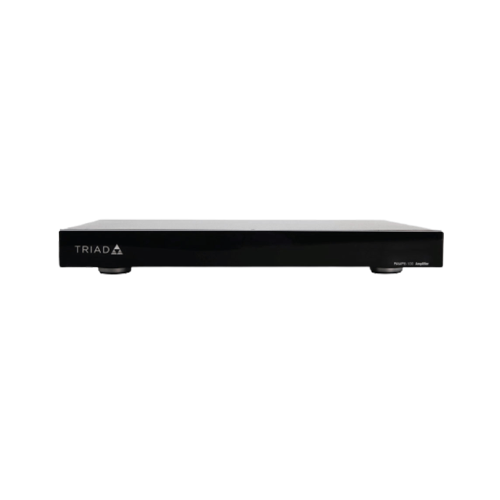

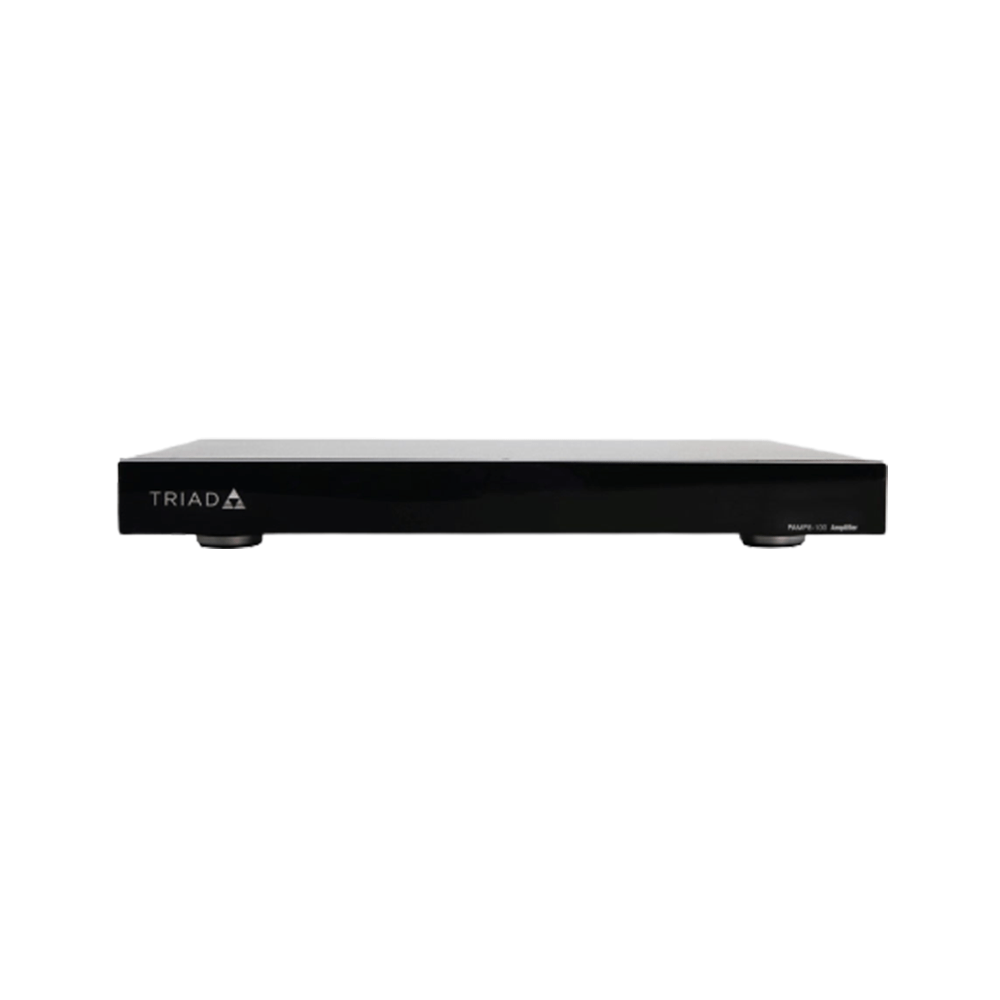

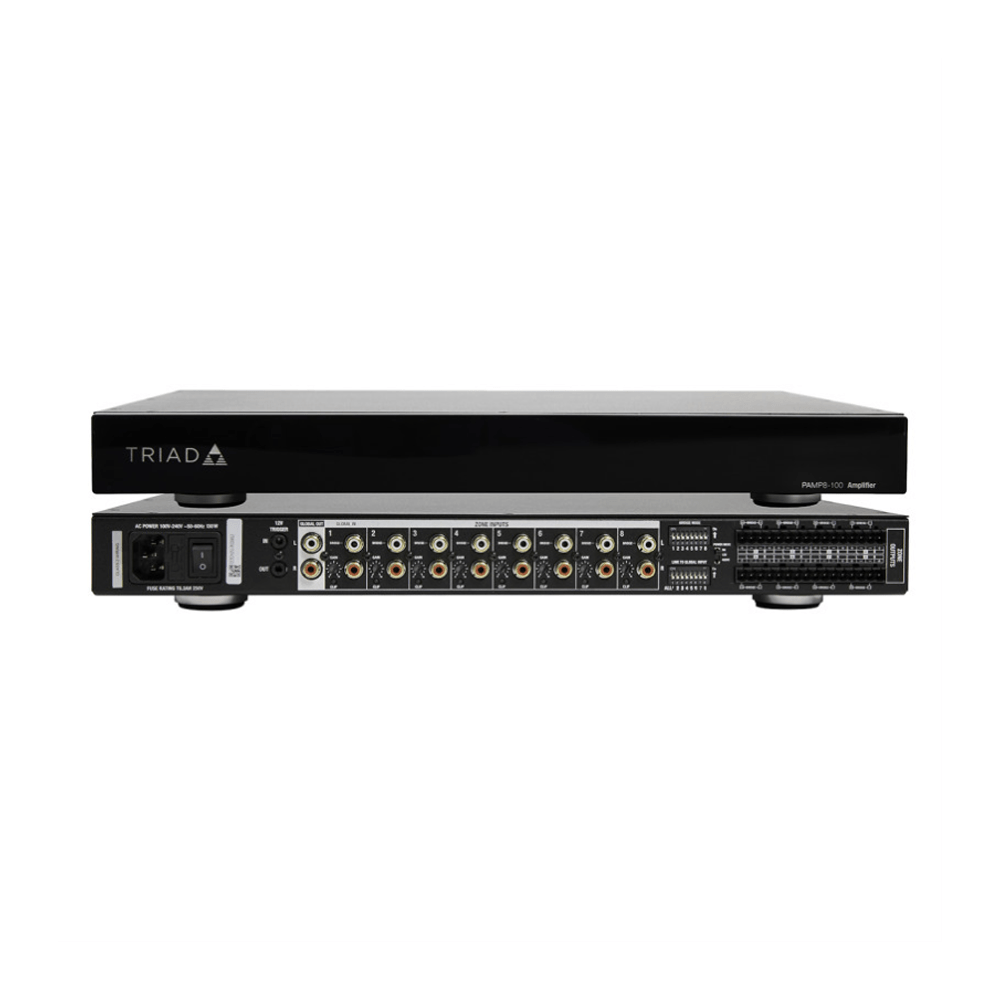

TRIAD 8-Zone Power Amplifier

TRIAD 8-Zone Power Amplifier

The Triad 8-Zone Power Amplifier delivers high performance, reliability, and robust amplification for the whole home in a compact form factor—providing the perfect solution for distributed audio systems. Designed around time-tested and reliable ICEpower technology, the 8-Zone Power Amplifier delivers 100 watts per channel of high-resolution audio. Superior audio quality and fast wake-from-standby make this amplifier ideal for every audio enthusiast’s home.

Use Triad Power Amplifiers with Triad speakers, Triad Audio Matrix Switches, and Control4 EA Series Entertainment and Automation Controllers to deliver a fantastic high-resolution audio experience throughout the home.

Categories: ,

Description

• Powerful 100W per channel driven by ICEpower modules to deliver a dynamic, high-resolution audio experience
• Bridgeable outputs provide double the amplification for areas that require more power


TRIAD 8-ZONE POWER AMPLIFIER
• Class-D amplification runs cool allowing you to stack one amplifier on top of another
• Fast wake-from-standby using 12V trigger for time-sensitive audio announcements and quick audio-zone startup
• Three power mode control options—12V trigger, audio sensing, or always on
• Standby mode saves energy when not in use
• Each zone can be independently linked to the global audio input to share one input across multiple sets of speakers
• Share an audio source across multiple power amplifiers using the global audio output
• Over-current and thermal protections prevent damage due to short circuits, incorrect wiring, or heat
• Rack-mount ears included

Triad 8-Zone Power Amplifier TS-PAMP8-100

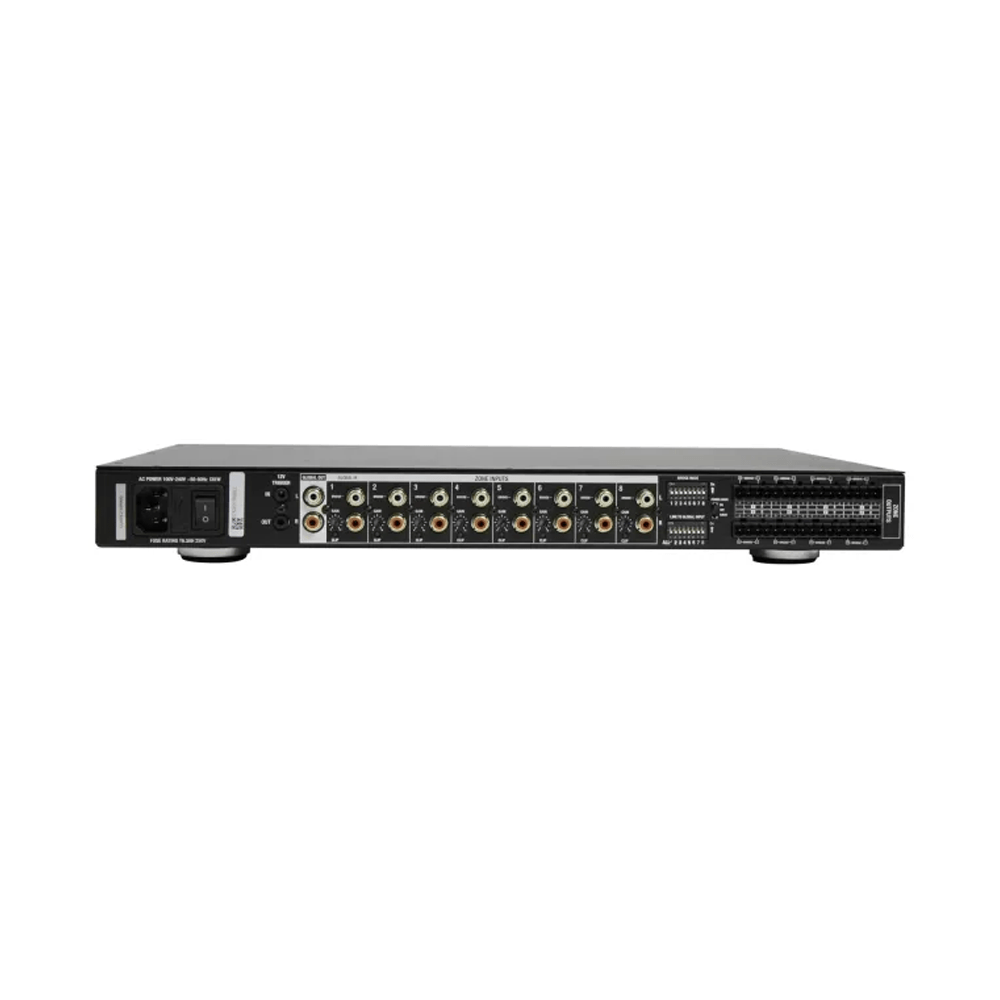

Audio inputs8 stereo, RCA style
Zone speaker outputs8 stereo, phoenix connector
12V trigger control1 × 3.5 mm (in), 1 × 3.5 mm (out)
Global audio input/output 1 stereo analog (shared with zone 1 input)
Global input dip switches8 × 2-position dip switches
Bridge mode dip switches 8 × 2-position dip switches
Power mode switch1 × 3-position switch (always on, 12V, audio sense)
Wake from standby<2 seconds with 12V trigger, ~3 seconds with audio sense
2 channels driven100W per channel @ 4 Ω, 50W per channel @ 8 Ω
1 bridged output 200W @ 8 Ω
Frequency response±0.4 dB, 10 Hz – 20 kHz, all loads
Idle noise45 uV, A-weighted, 20 Hz – 20 kHz, SE
THD0.003%, 4 Ω, SE, f=100 Hz, Po=1W
Dynamic range110 dBA stereo, 115 dBA bridged
Operating temperature 32°F ~ 113°F (0°C ~ 45°C)
Humidity 5% to 95% non-condensing
Storage-4°F ~ 158°F (-20°C ~ 70°C)
Thermal dissipation Three fans mounted on left side
Thermal dissipation (heat losses) 0.23W / 0.8 BTU/hr (standby), 100W / 341 BTU/hr (max)
AC mains power Universal mains 100 – 240VAC, 50 – 60 Hz, 130W
Fuse rating6.3A
H × W × D (with feet)2.13 × 17.5 × 11.44″ (5.4 × 44.5 × 29.0 cm)
H × W × D (without feet) 1.75 × 17.5 × 11.44″ (4.4 × 44.5 × 29.0 cm)
Front panel power LED1 × blue LED
Front panel zone status LED1 RGB LED for each zone
Clip indicator LEDs1 for each zone (back panel)
Input gain potentiometer1 for each zone
