Control4 TRIAD ONE STREAMING AMPLIFIER

Control4 TRIAD ONE STREAMING AMPLIFIER

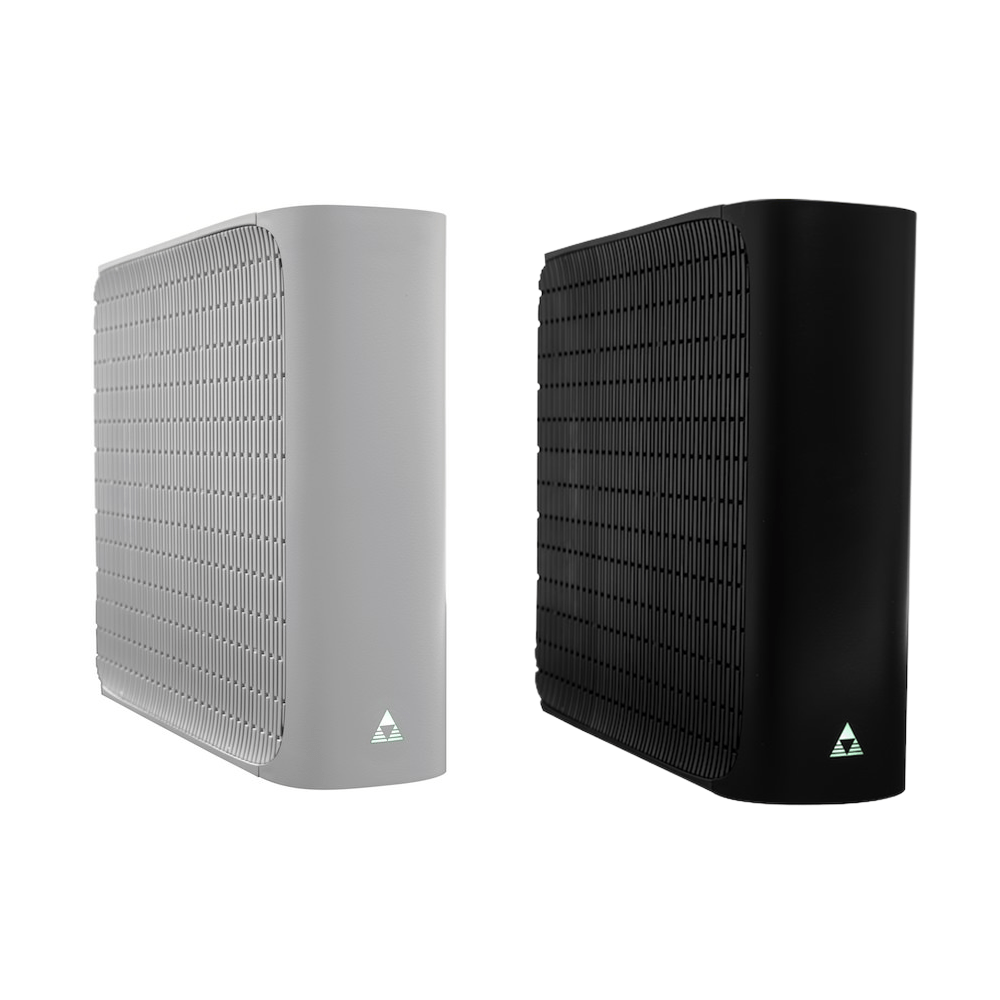

The Triad One is a single-zone, high-resolution streaming amplifier and the easy way to add music into any room of a Control4-enabled home without the need to pull wire back to a central location. The Triad One supports highresolution audio playback, up to 192 kHz / 24 bit, with a built-in amplifier boasting an impressive 105 dB signal-tonoise ratio and 100 watts per channel—enabling incredible sound in any room. Also included is a built-in 10-band equalizer delivering exceptional sound output and room optimization. The Triad One is also a great alternative to an AVR in a bedroom, kitchen, or other location when surround sound is not a requirement. Not only does the Triad One have digital and analog audio inputs to take the audio output from a TV to power a soundbar, it has two IR outputs to control the TV and another local source, if needed. A line-level subwoofer output rounds out the system for deep bass when connected to a powered subwoofer. The Triad One is available in white and black, can be placed horizontally or vertically, and can be installed on a bookshelf, in a rack, or mounted behind a TV.

Category:

Description

• Add a high-resolution, amplified audio
zone to any Control4 system
• Built-in streaming music services
synchronized with EA controllers
• Network control of audio and volume over
a wired or WiFi connection
• Analog and digital audio inputs support
audio resolutions up to 192 kHz / 24 bit
• Volume, bass, treble, 10-band, 1-octave EQ,
balance, loudness, and mono summing
• Input gain for analog source input
• Audio sensing supports programmable
events based on the presence of audio
• Built-in EQ presets for Triad speakers
• Supports native Control4 streaming
services including Pandora, Spotify, TIDAL,
Napster, Sirius XM, Deezer, and iHeartradio
• Supports built-in Control4 digital media
playback including My Music, ShairBridge,
and DLNA

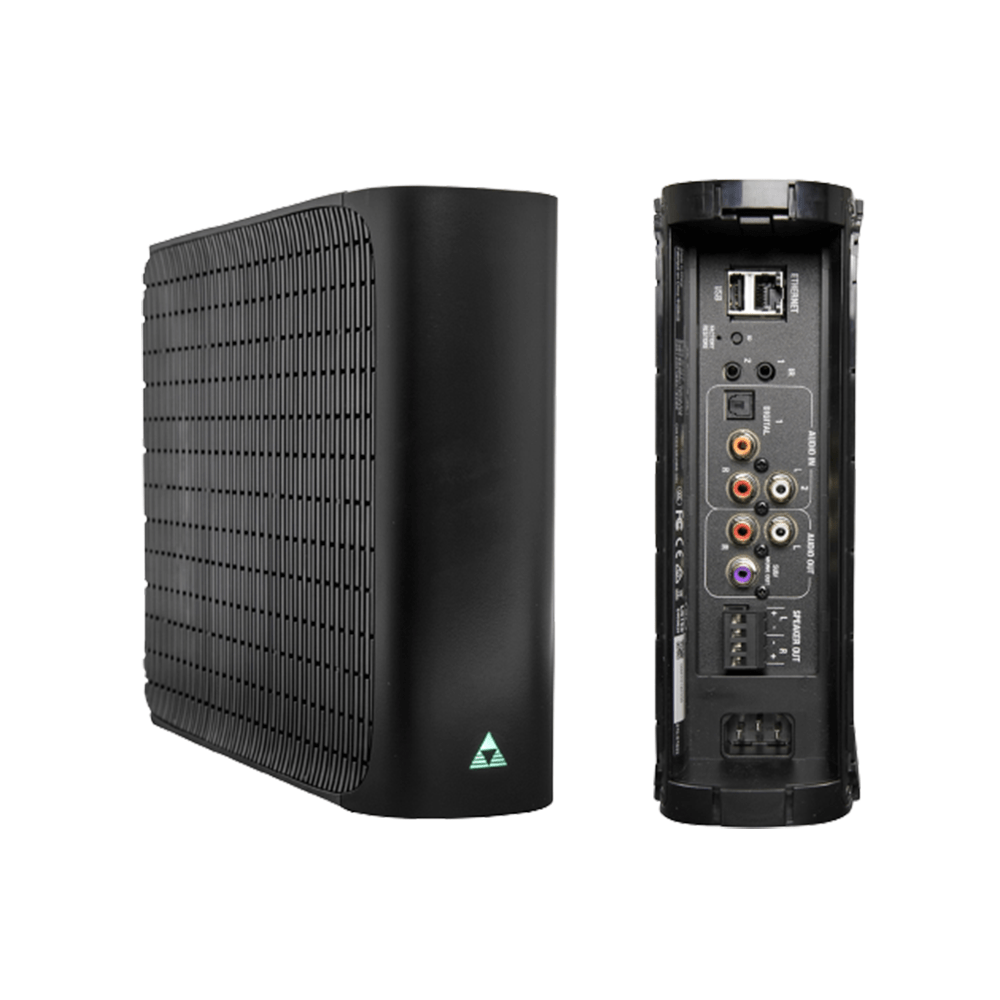

Triad One (Black)TS-SAMP1-100-BL

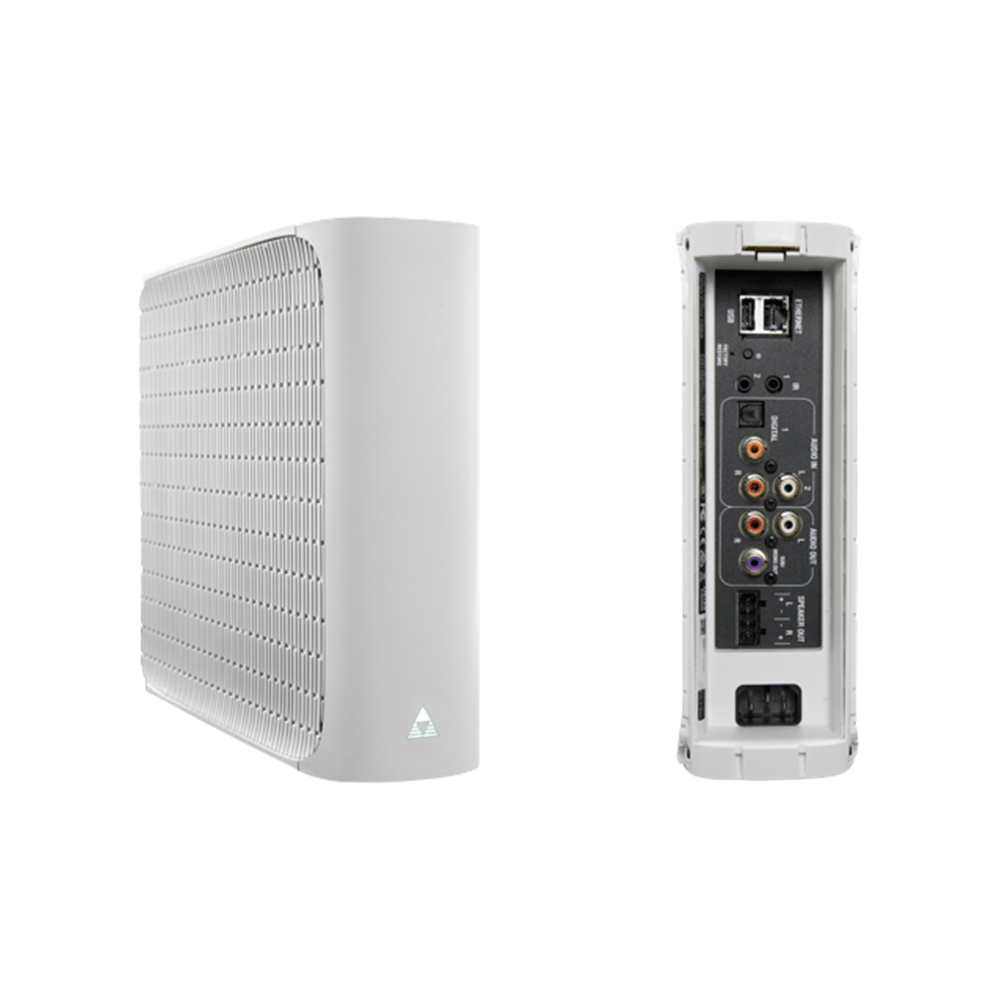

Triad One (White)TS-SAMP1-100-WH
Audio inputs2 inputs, 1 analog stereo and 1 digital,
(S/PDIF coax or TOSLINK optical)
Zone speaker outputs1 stereo, Phoenix-style connector
USB1 USB 2.0 port—supports playback of media stored on USB
IR2 IR ports—3.5 mm jack
EthernetRJ45 jack for local network connection, 10/100/1000BaseT
WiFi2 internal antennas, 2.4 GHz and 5 GHz, 802.11b/g/n
Front power LED1 × RGB status LED
ID and factory restore buttonsYes
Dimensions (H x W x D)3 × 8.5 × 10.25" (7.6 × 21.6 × 26 cm)
Rated wattage/channel100W @ 4 Ω / 60W @ 8 Ω
Minimum load impedanceTolerates 3 Ω loads
Frequency response+/- 0.5 dB, ref 1 kHz, 20 - 20,000 Hz, 4 or 8 Ω
THD< 0.01% 1 kHz at all output levels below clipping
Noise< -105 dB reference to rated power A-weighted
Maximum input level2V RMS
Analog to digital conversion2V RMS = 0 dBFS
Analog frequency response+/- 0.1 dB 20-20,000 kHz ref 1 kHz
Analog dynamic range>114 dB A-weighted
THD in a 20 kHz bandwidth< 0.001% 20 - 20,000 Hz up to 2V RMS
S/PDIF inputAccepts IEC 60958 standard inputs in 16/24-bit PCM stereo only,
surround not supported
Accepted sample rates30-200 kHz for direct input mode; 44.1k, 48k, 96k, 192k for
streaming output mode
Optical input TOSLINKStandard TOSLINK levels
DSP audio processing24-bit audio processing double-precision filters
Signal-to-noise ratio> 105 dB
Tone controls+/- 12 dB with 650 Hz turnover frequency in 0.5 dB steps
10-band EQTen one-octave filters in 0.5 dB Steps, +/- 12 dB
Volume controlAttenuates from 0 to -80 dB and off in a tapered curve
Loudness controlContinuously variable from 100% volume to of
Subwoofer outputMono summing of stereo audio or crossover mode
Subwoofer crossover type4th order (24 dB/octave) Linkwitz-Riley
Crossover frequencies 80 Hz, 90 Hz, 100 Hz, 110 Hz, 125 Hz, 140 Hz
Signal present detectors-30 dB low-pass filtered
Operating temperature32°F ~ 102°F (0°C ~ 40°C)
Humidity5% to 95% non-condensing
Storage-4°F ~ 158°F (-20°C ~ 70°C)
