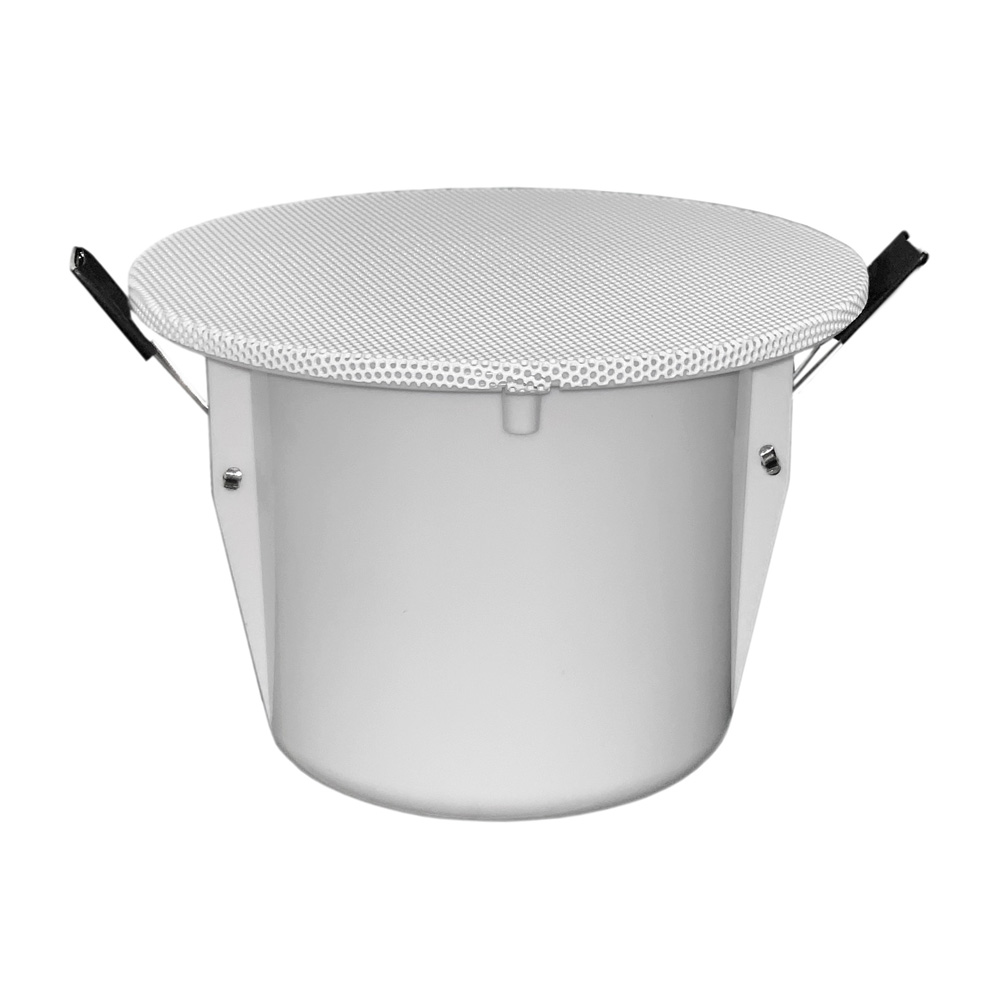

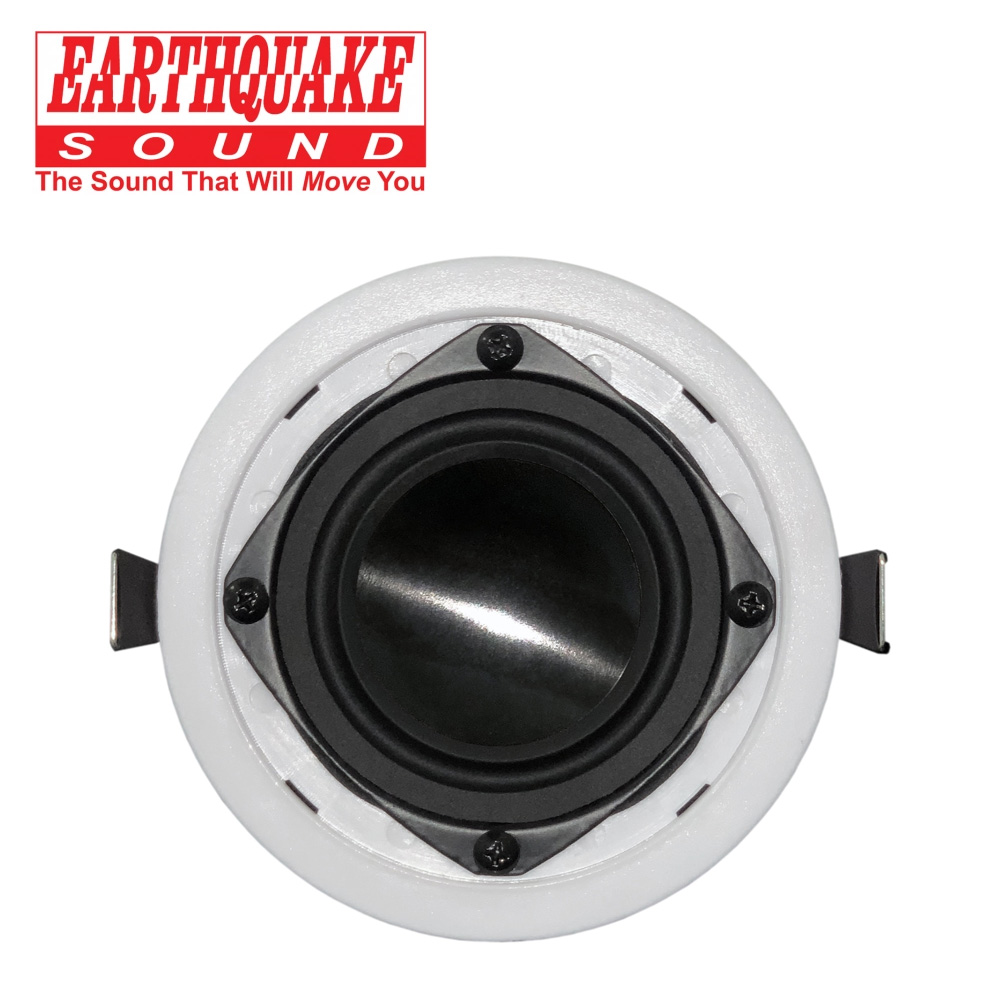

ECS 4.0 In-Ceiling Speaker

With limitless applications and sound quality in mind, Earthquake Sound is proud to release the new ECS 4.0 Edgeless In-Ceiling Speaker. The small footprint of this 4″ full-range speaker was made for a variety of indoor as well as outdoor applications. The self-enclosed design with humidity resistant components provides users with a broader range of installation options such as bathrooms, kitchens, and outdoor living spaces.

Installation is made painless from a toolless mounting system that makes your installs faster and more efficient by simply pushing the speaker into any 99mm diameter hole with a depth of 3 inches. The edgeless and paintable grille further enhances this speaker by allowing it to vanish and not interrupt the décor of the room. The ECS 4.0 is built to perform and complement the space in which it is placed allowing you to enjoy music and audio in your home or commercial space.

  • Dolby Atmos® compatible

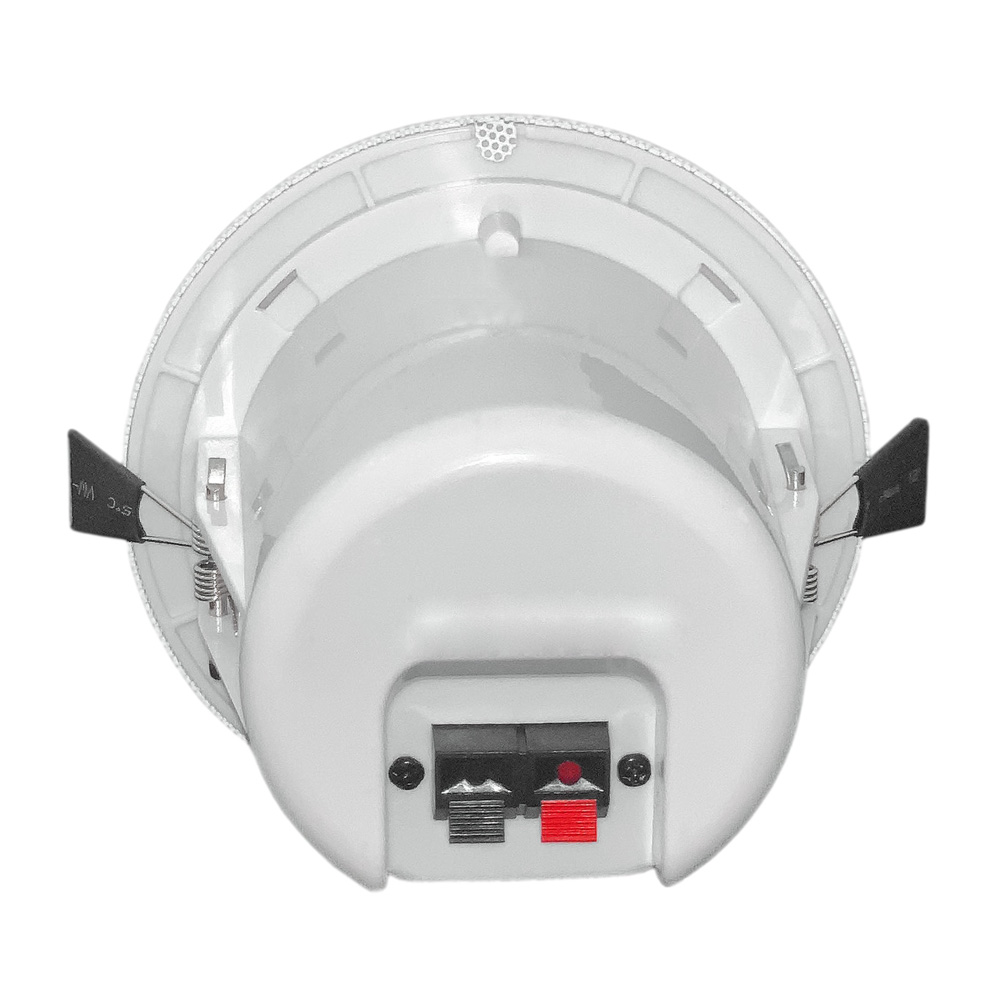

  • Easy-connect push terminals

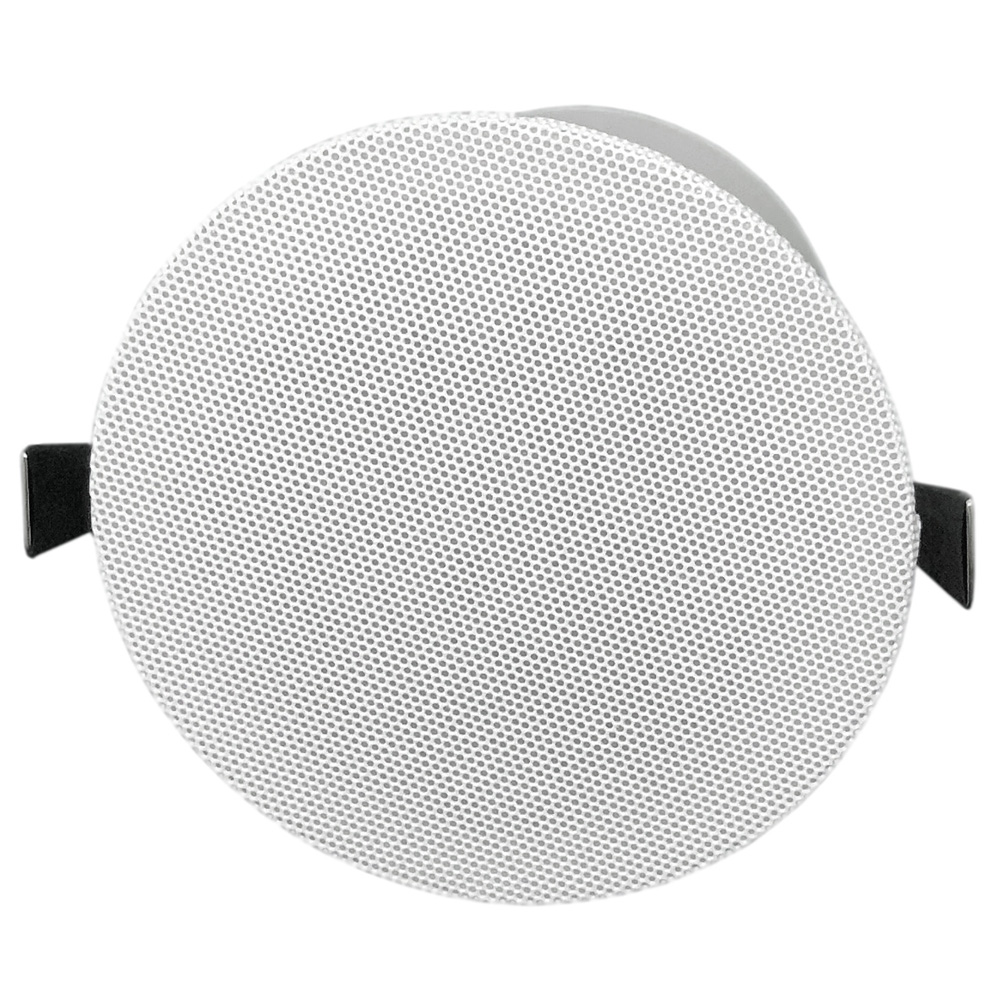

  • Compact with paintable grille and frame
  • Rust resistant aluminum grille
  • Pairs well with BTA-250 in-wall Bluetooth amplifier for wireless streaming


Power Handling50W MAX
Frequency Response80Hz–10kHz
Voice Coil Diameter25.2mm(1″)
Impedance8 Ohm
Overall Diameter116mm (4.56″)
Cut out Diameter99mm (3.89″)
Mounting Depth75mm (2.95″)
Weight0.85 kg (1.14 lbs)
