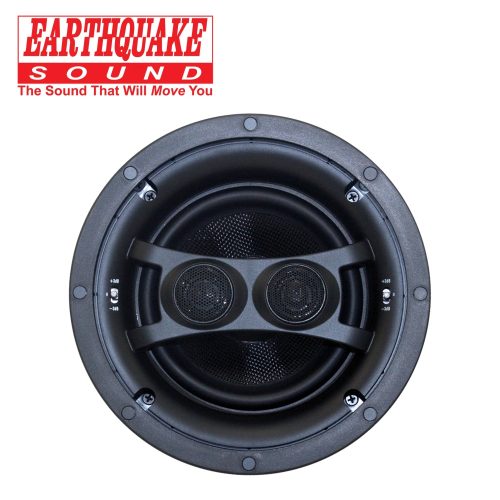

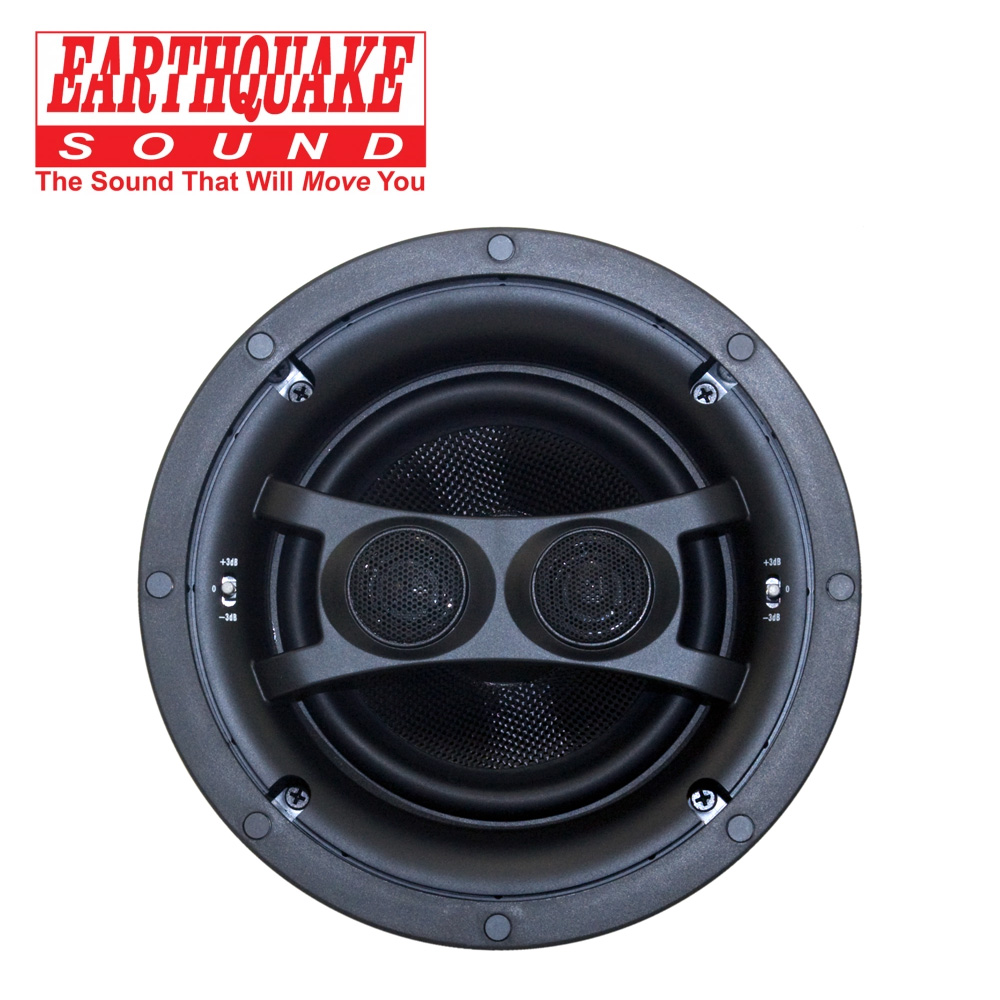

The Earthquake EDGELESS Series of In-Ceiling Speakers are also available in dual voice coil/stereo models with Dipole/Bipole and DVC/Surround selectable modes for use in limited/smaller space such as kitchens, hallways, bathrooms, etc.

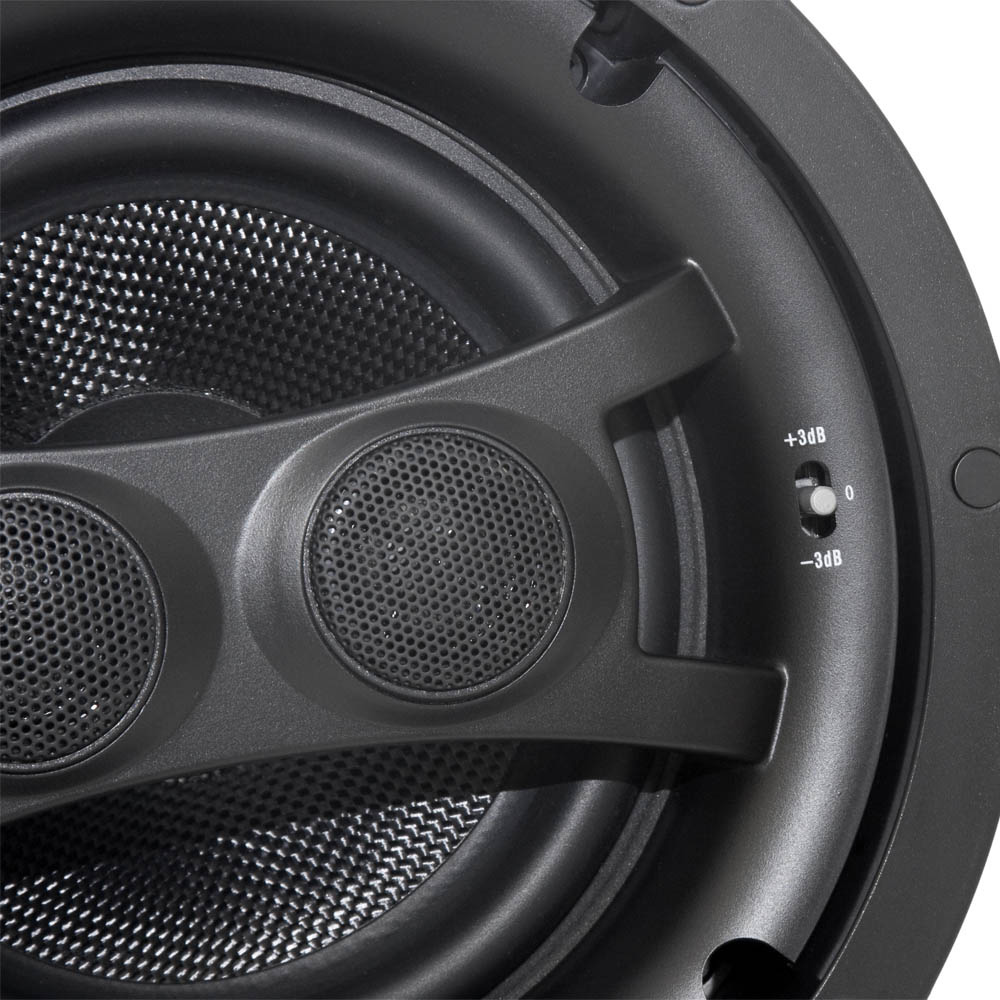

The standard +/- 3dB adjustment switches combined with the Dipole/Bipole and DVC/Surround selectable modes further optimize the speakers’ response to match the acoustics of the room and fulfill the end user’s own personal preference.

Designed with advanced low mass stiff Kevlar cones and wide surrounds, these EDGELESS speakers deliver deep & natural bass. High efficiency and sonic accuracy are guaranteed by utilizing 1″ (25mm) silk dome NEO tweeters.

Designed with aesthetics (WAF – Wife Approval Factor) and sound quality in mind, these speakers seamlessly blend into their surrounding as they provide a lifetime of durability and high-end performance.

  • 6.5″ (165mm) low mass stiff Kevlar cone midbass driver
  • Round magnetically attached and paintable grilles

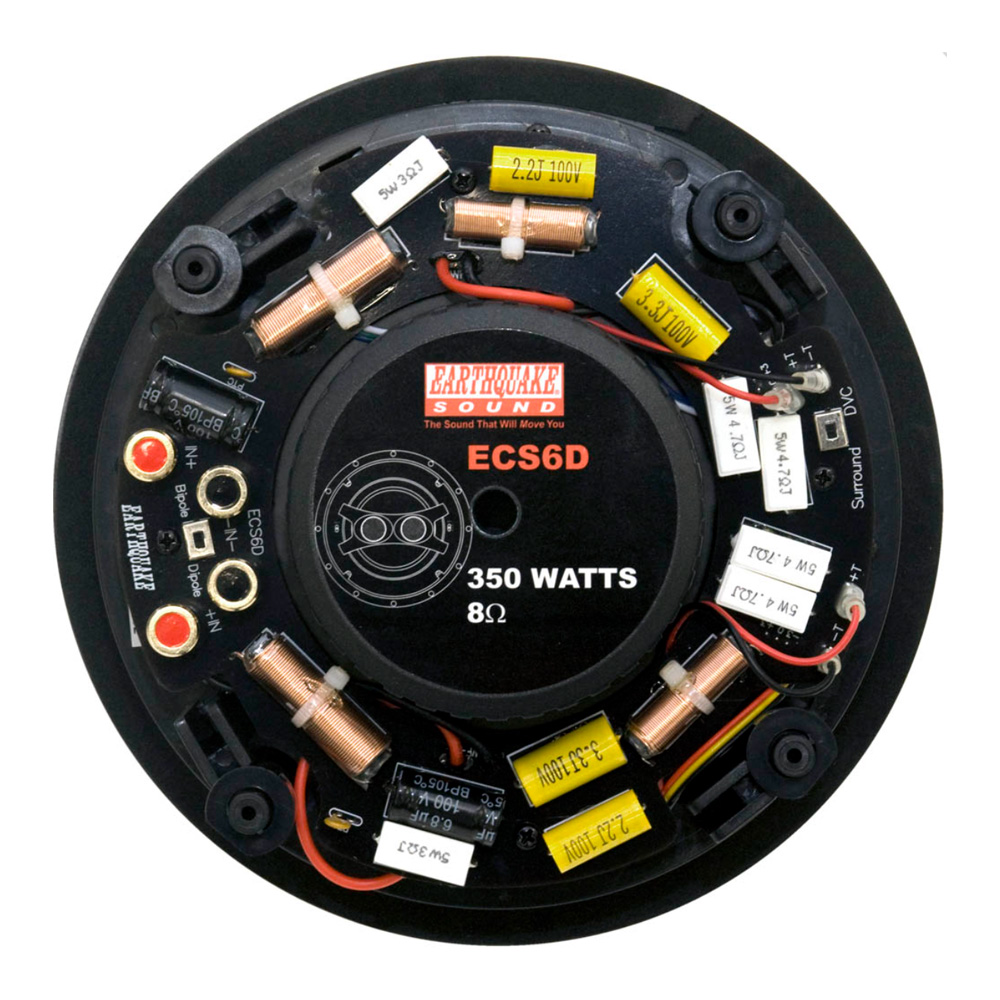

  • 12dB/Octave with polyswitch protection
  • Gold plated spring loaded terminals
  • Easy install “Turn-N-Lock™” mechanism
  • Optional square grilles sold separately


Power Handling300W MAX
Frequency Response40Hz–20kHz
Impedance8-Ohm Dipole Mode
4-Ohm Bipole Mode
Sensitivity87dB 1W/1M
Overall Diameter217mm (8-9/16″)
Cut out Dimensions200mm (7-7/8″)
Mounting Depth110mm (4-5/16″)
Weight1.81 kg (4 lbs)
